49135-05671 NRA J96 Turbocharger Nozzle Ring Assembly

The 49135-05671 NRA Nozzle Ring Assy is an aftermarket replacement component for J96 turbochargers, designed to support efficient turbine exhaust gas flow. This assembly is associated with OEM reference numbers 49135-05640, 49135-05660, and 49135-05670, serving as a critical part for maintaining stable operation in applicable engine systems.

Key Specifications

• Part Number: 49135-05671 NRA
• Product Type: Nozzle Ring Assy
• Turbo Model: J96
• Gross Weight: 1 kg
• Packing: N/A
• OEM Reference Numbers: 49135-05640 NRA, 49135-05660 NRA, 49135-05670 NRA
• Image Availability: Yes (Front, Top 45°, Bottom 45° views)

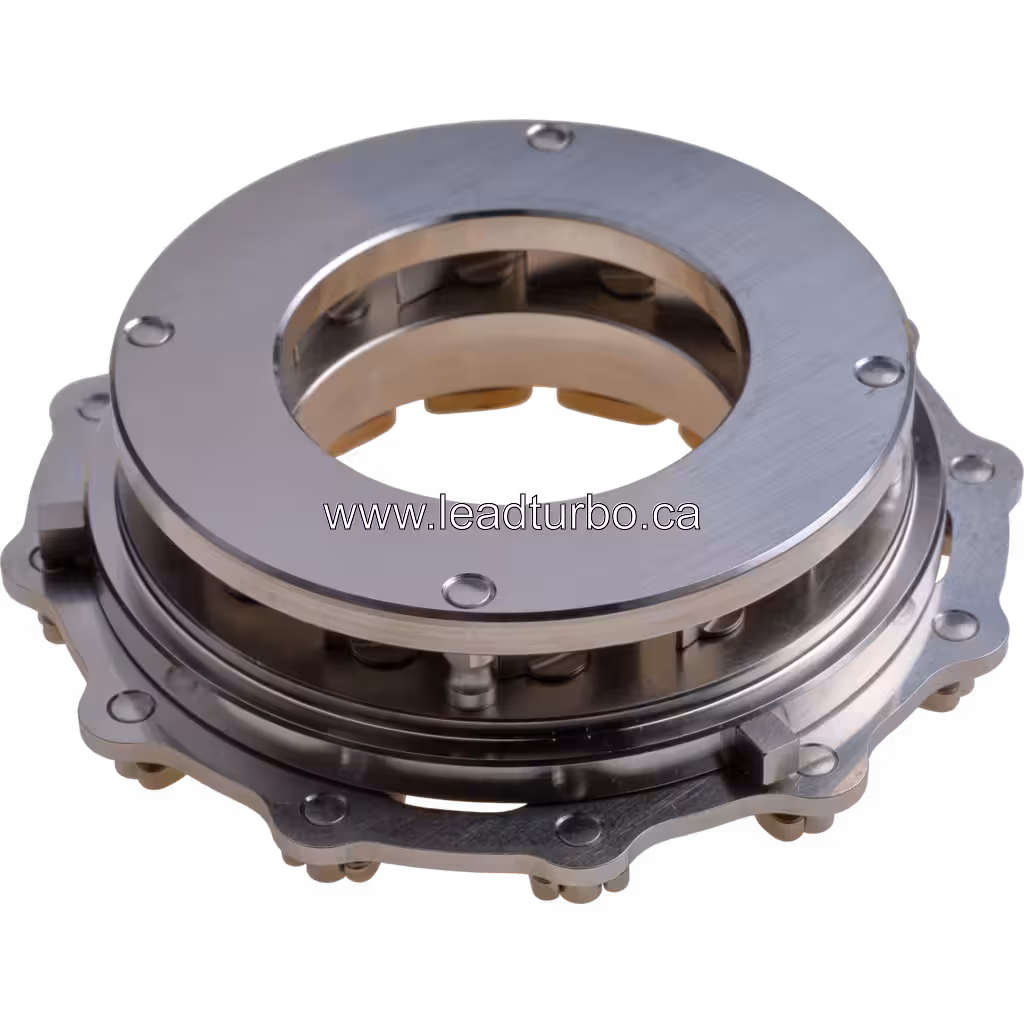

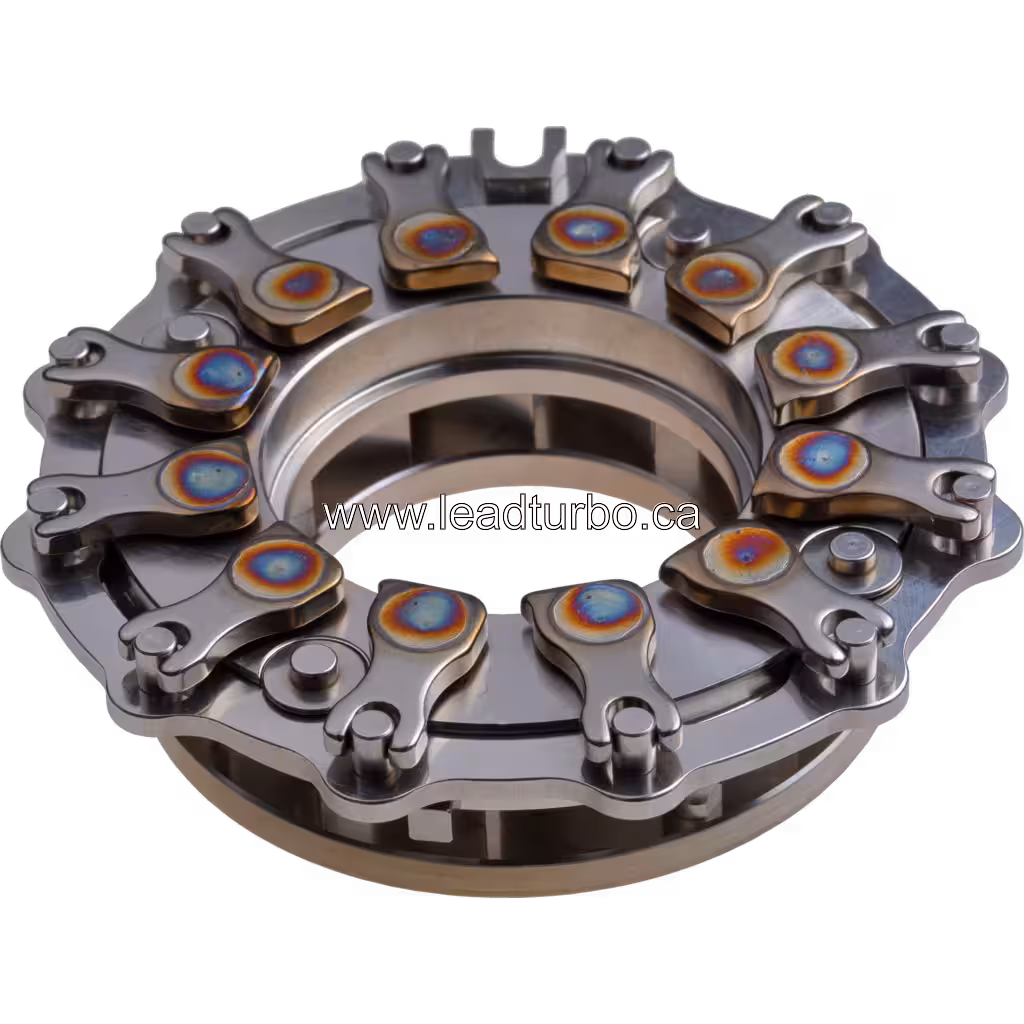

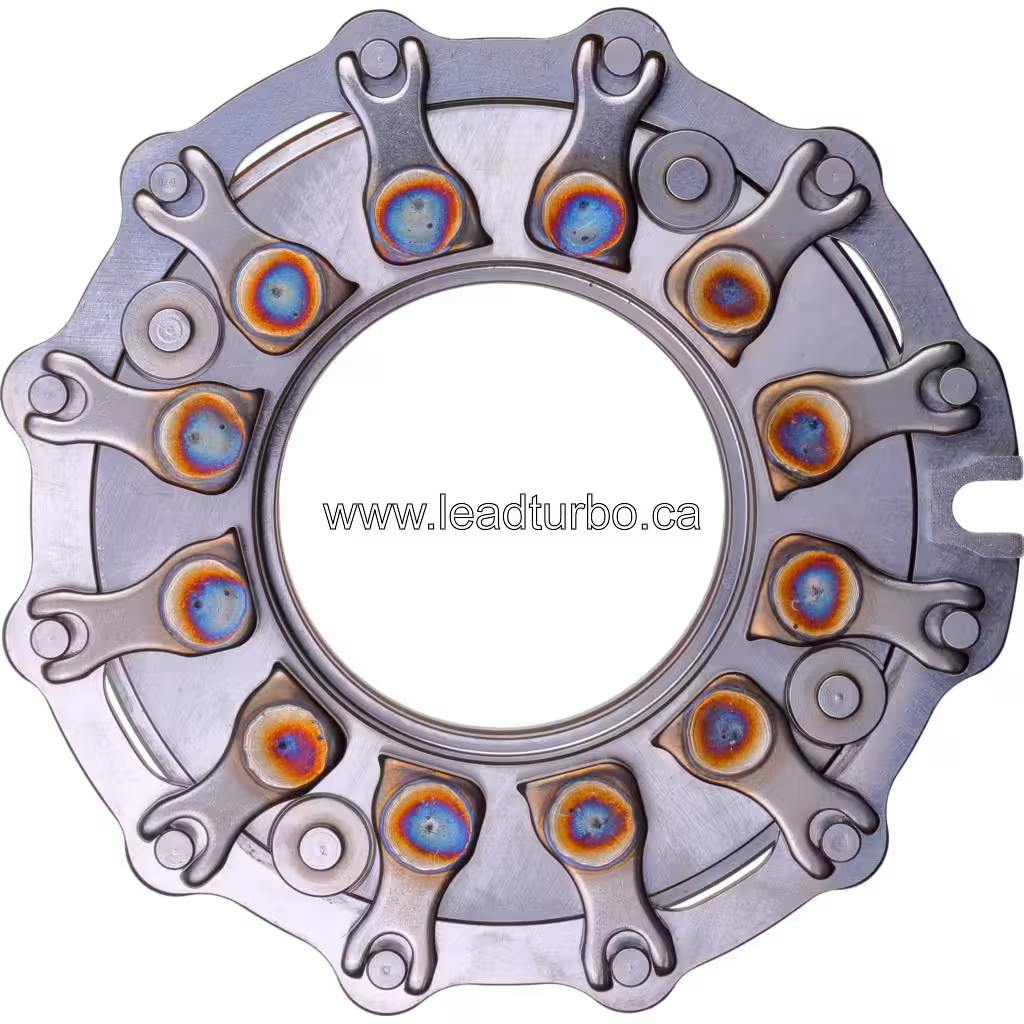

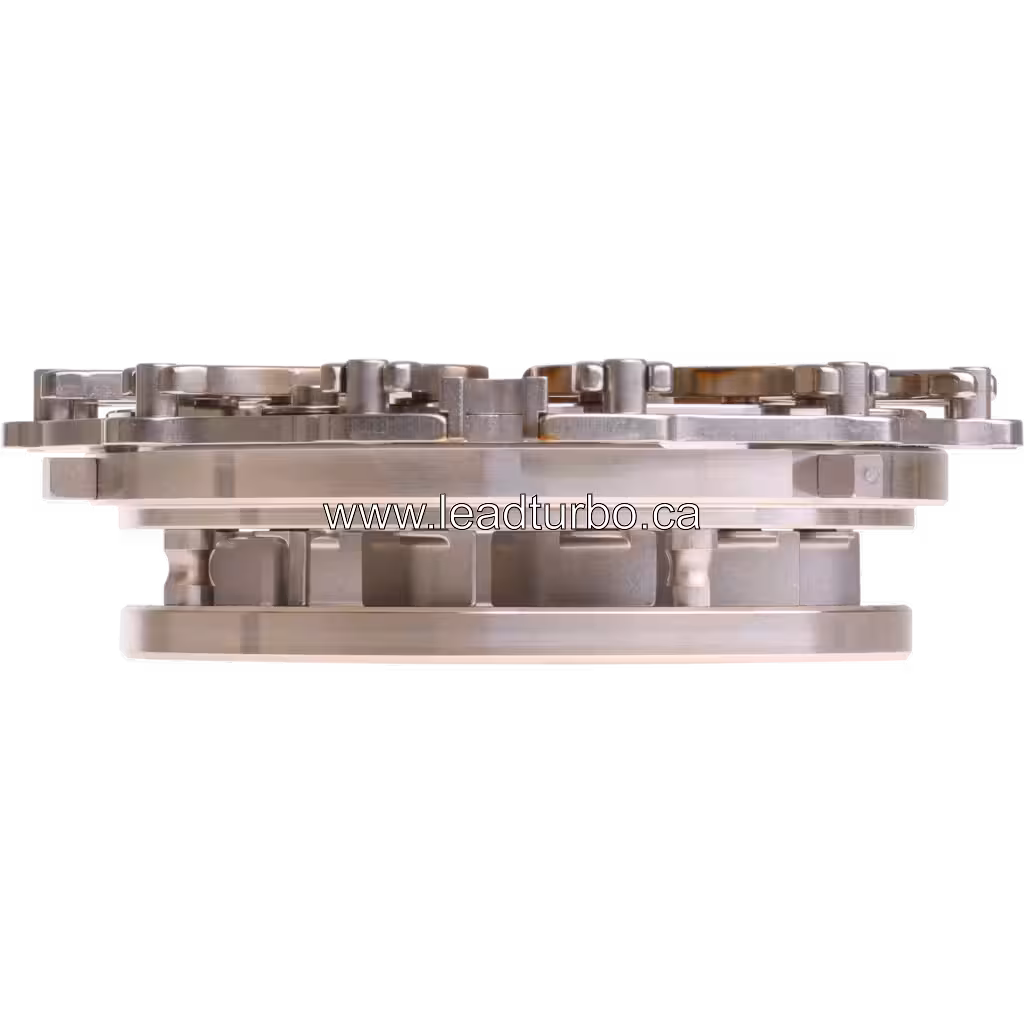

The assembly features a circular ring structure with radially arranged vane segments. Visible heat-tinted patterns on the vanes indicate thermal processing, while the main body exhibits a machined metallic finish. Mounting holes and flanges are visible on the outer perimeter, supporting secure installation within the turbine housing. Buyers should verify these visual characteristics against their specific J96 application requirements.

Application & Compatibility

Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:

• OTHER TURBOCHARGER > OTHER CORE

This nozzle ring assembly is listed for J96 turbocharger applications, with reference numbers 49135-05640 NRA, 49135-05660 NRA, and 49135-05670 NRA provided for verification. The application path is categorized under Other Turbocharger > Other Core, serving as a clue for specific engine or vehicle fitment. Buyers should verify the part number 49135-05671 NRA against their specific engine code, vehicle model, and production year before ordering. Confirm that the turbo configuration and related hardware align with these reference numbers to ensure the replacement application is correct for your specific unit.

Technical Notes

The J96 turbocharger configuration typically utilizes a variable-geometry turbine system, where the nozzle ring assembly controls exhaust gas flow to adjust boost pressure. While the specific actuator type and cooling system are not detailed in the input data, the visible heat-tinted vanes suggest thermal processing suitable for high-temperature turbine environments. Buyers should verify the specific turbocharger configuration and actuator related hardware alignment for their application. Technical fitment support is available to confirm that the 49135-05671 NRA assembly matches the required vane count and rotational specifications for your specific engine setup.

B2B Supply

LeadTurbo supports B2B buyers, repair shops, and distributors with volume pricing and worldwide shipping for the 49135-05671 NRA Nozzle Ring Assy. Technical fitment support is available to help verify the J96 turbo model, engine application, and OEM reference numbers (49135-05640, 49135-05660, 49135-05670) before ordering. For inquiries, provide the turbocharger nameplate details and specific vehicle data to ensure the replacement application matches your requirements. This service helps confirm the correct nozzle ring assembly for your specific turbine housing configuration.
