49177-01510 TD04-09B Turbocharger Core 4D56 Engines

This aftermarket replacement core for FOR 49177-01510 TD04-09B turbochargers serves as a direct CHRA assembly for Mitsubishi 4D56 and 4D55 engines. It is listed for reference applications including Hyundai Gallope and Komatsu trucks, supporting B2B buyers who require verified fitment for these specific diesel powertrains.

Key Specifications

• Part Number: FOR 49177-01510
• Product Type: Turbocharger Core (CHRA)
• Turbo Model: TD04-09B
• Gross Weight: 2 kg
• Packing Dimensions: 15 x 15 x 15 cm
• OEM Reference Numbers: 15 references listed, including 49177-08020, 49177-00640, 49177-00710, and 49177-01000

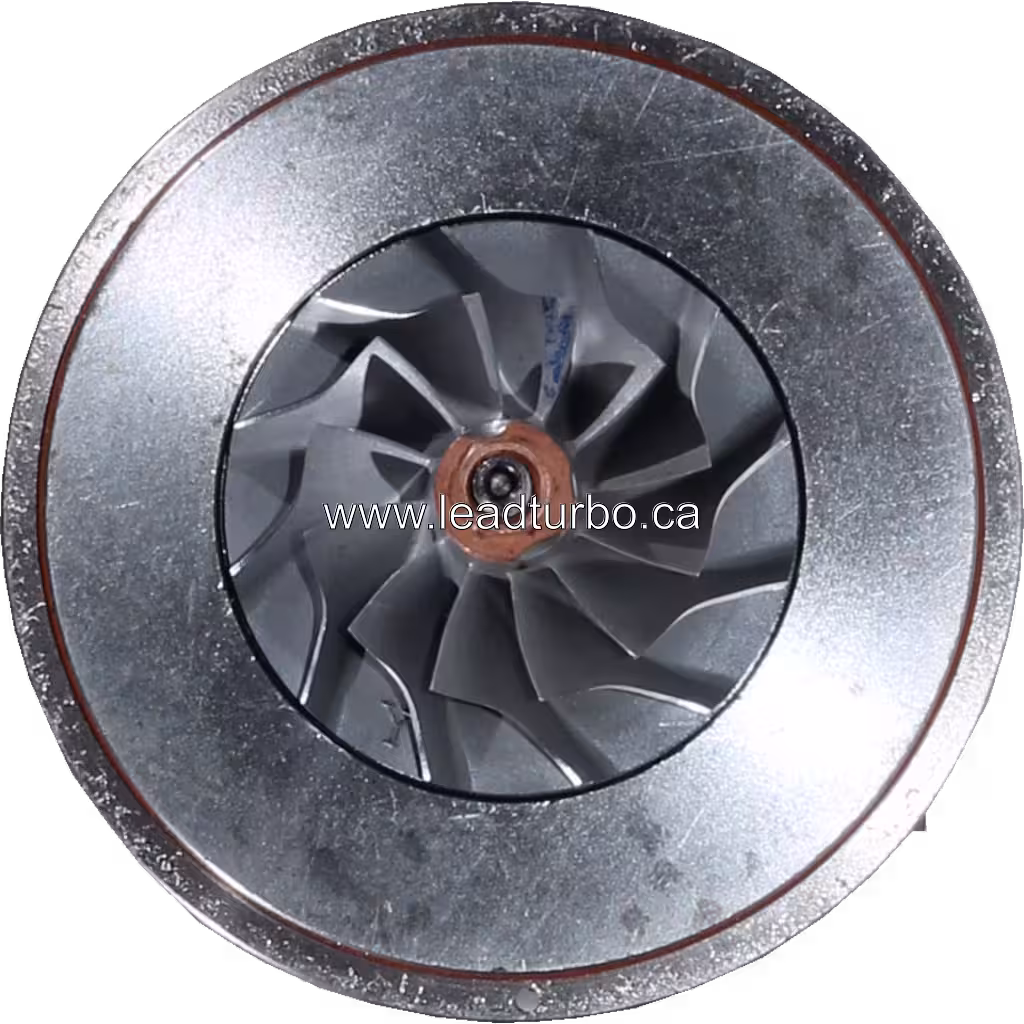

• Image Availability: High-resolution studio shots showing front, top, and bottom views of the core assembly

Verify the specific OEM reference number against your existing unit to confirm the correct variant for your application.

Application & Compatibility

Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:

• HYUNDAI > HYUNDAI GALLOPE > MITSUBISHI 4D56-95TC
• KOMATSU > KOMATSU TRUCK > MITSUBISHI 4D56T
• MITSUBISHI > MITSUBISHI 4D55
• MITSUBISHI > MITSUBISHI 4D56

This core is listed for reference applications including Hyundai Gallope, Komatsu trucks, and Mitsubishi vehicles equipped with 4D56 or 4D55 engines. The application paths provided serve as verification clues for B2B buyers; confirm your specific engine code, production year, and existing part number before ordering.

• Hyundai Gallope: Reference application for Mitsubishi 4D56-95TC engines.
• Komatsu Trucks: Reference application for Mitsubishi 4D56T engines.
• Mitsubishi: Reference application for 4D55 and 4D56 engine series.

Always verify the OEM reference number on your existing unit against the 15 listed references to ensure the correct variant for your specific diesel powertrain.

Technical Notes

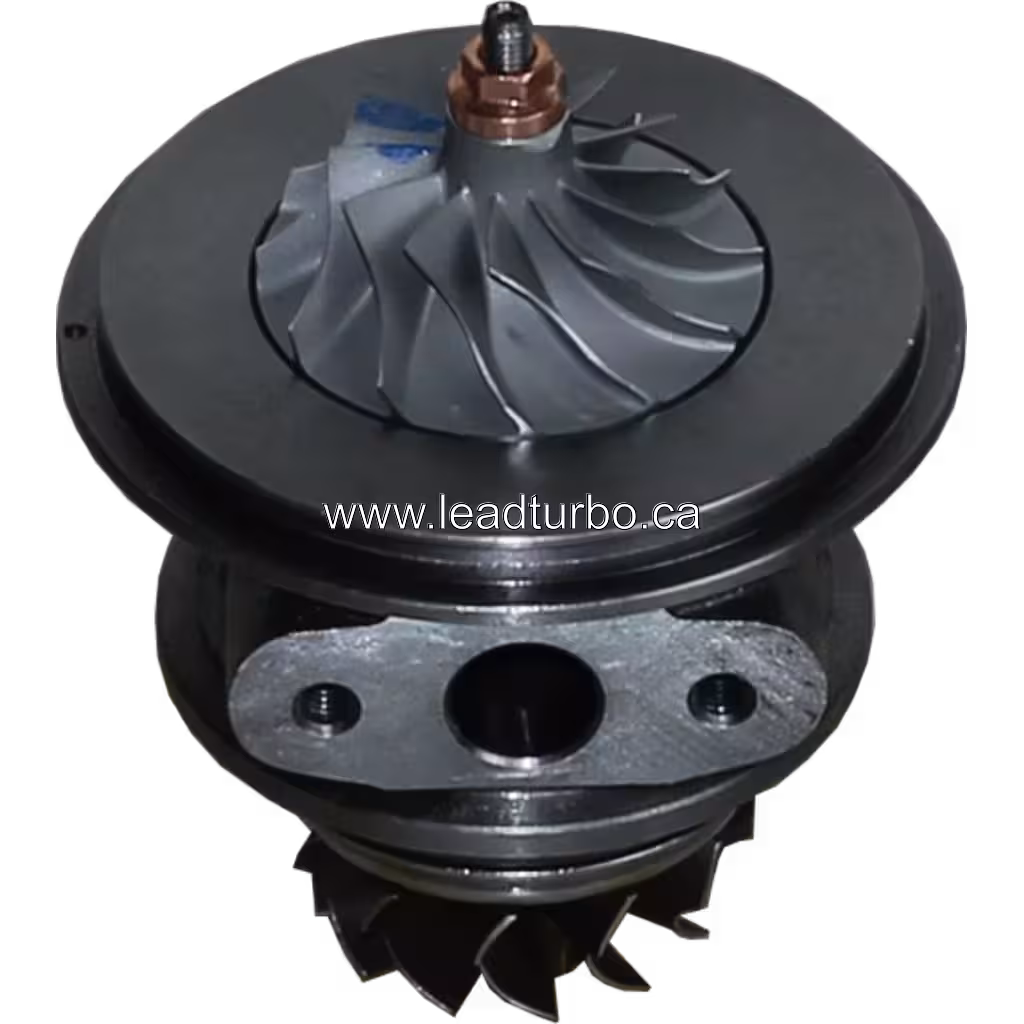

The TD04-09B core assembly features a central bearing housing with two mounting bolt holes, visible in the provided studio images. The turbine and compressor wheels are clearly visible, with the turbine wheel positioned at the top and the compressor wheel at the bottom. A red O-ring is visible on the upper flange, and the housing sections are black painted. These visual details help buyers verify the physical condition and orientation of the core before installation. Verify that the visible mounting holes and flange configuration match your existing unit to ensure correct alignment during the rebuild process.

B2B Supply

LeadTurbo supports B2B buyers with volume pricing and worldwide shipping for this TD04-09B core. Technical fitment support is available to help verify the correct variant among the 15 listed OEM references, such as 49177-08020 or 49177-00640. For bulk orders of FOR 49177-01510 cores, contact our team to arrange pre-shipment inspection and confirm packing details (15x15x15 cm, 2 kg gross weight) for your specific Mitsubishi 4D56 or Hyundai Gallope application.
