4955813 HX60W Turbocharger Replacement for Cummins QSX15 & ISX
Aftermarket 4955813 HX60W turbocharger for Cummins QSX15 and ISX Industrial applications. Verify part number, engine code, and OEM reference numbers before ordering.
Show more cross references
3594488 3594490 3594491 3594492 3598762 3598763 3598764 3598765 4024937 4038498 4038500 4038501 4038502 4041154 4041155 4041156 4041157 4047148 4047152 4047153 4047154 4089298 4089970 4955216Subtotal: CA$ 734.07
Send an InquiryThis aftermarket 4955813 HX60W turbocharger serves as a replacement assembly for Cummins QSX15 and ISX Industrial engines. It is listed for applications including Cummins PowerGen, John Deere 9 Series, and Hyundai R805LC-7, with 24 associated OEM reference numbers such as 3594488 and 3594490 for fitment verification.
Key Specifications
- Part Number: 4955813
- Turbo Model: HX60W
- Product Type: Turbocharger Assembly
- Gross Weight: 29.7 kg
- Packing Dimensions: 35 x 36 x 43 cm
- OEM Reference Numbers: 24 associated references, including 3594488, 3594490, 3594491, and 3594492
- Visible Features: Two-shell construction, pneumatic actuator with related hardware arm, rectangular turbine inlet flange, and round compressor outlet flange
- Application Clues: Cummins QSX15, Cummins ISX Industrial, Cummins PowerGen, John Deere 9 Series, and Hyundai R805LC-7
Verify the specific engine code and mounting details against these specifications before ordering.
Application & Compatibility
Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:
- CUMMINS > CUMMINS POWERGEN > CUMMINS QSX15
- CUMMINS > Cummins G-Drive > Cummins G-Drive Generator > Cummins QSX15
- HYUNDAI > Hyundai R805 > Hyundai Excavator R805LC-7 > Cummins ISX Industrial
- International > International Truck > International trucks > Cummins QSX15 Tier 3
- John Deere > John Deere 9 Series > John Deere 9570RT > Cummins ISX Industrial
- John Deere > John Deere 9 Series > John Deere 9570RT > Cummins QSX
- John Deere > John Deere 9 Series > John Deere 9570RT > Cummins QSX15
- John Deere > John Deere 9R Series > John Deere 9570R > Cummins QSX15
- John Deere > John Deere 9R Series > John Deere 9620R > Cummins ISX Industrial
- John Deere > John Deere 9R Series > John Deere 9620R > Cummins QSX
- John Deere > John Deere 9R Series > John Deere 9620R > Cummins QSX15
- John Deere > John Deere 9R Series > John Deere 9620RX > Cummins QSX
- John Deere > John Deere 9R Series > John Deere 9620RX > Cummins QSX15
- John Deere > John Deere 9RX Series > John Deere 9570RX > Cummins ISX Industrial
- John Deere > John Deere 9RX Series > John Deere 9570RX > Cummins QSX15
This HX60W turbocharger assembly is listed for replacement applications on Cummins QSX15 and ISX Industrial engines. Application clues include Cummins PowerGen, Cummins G-Drive generators, John Deere 9 Series (9570RT, 9620R), and Hyundai R805LC-7 excavators. Buyers should verify the specific engine code, production year, and mounting details against the 24 associated OEM reference numbers, such as 3594488 and 3594490, before ordering. Confirm that the turbocharger configuration and bracket alignment match the existing unit to ensure proper installation.
Technical Notes

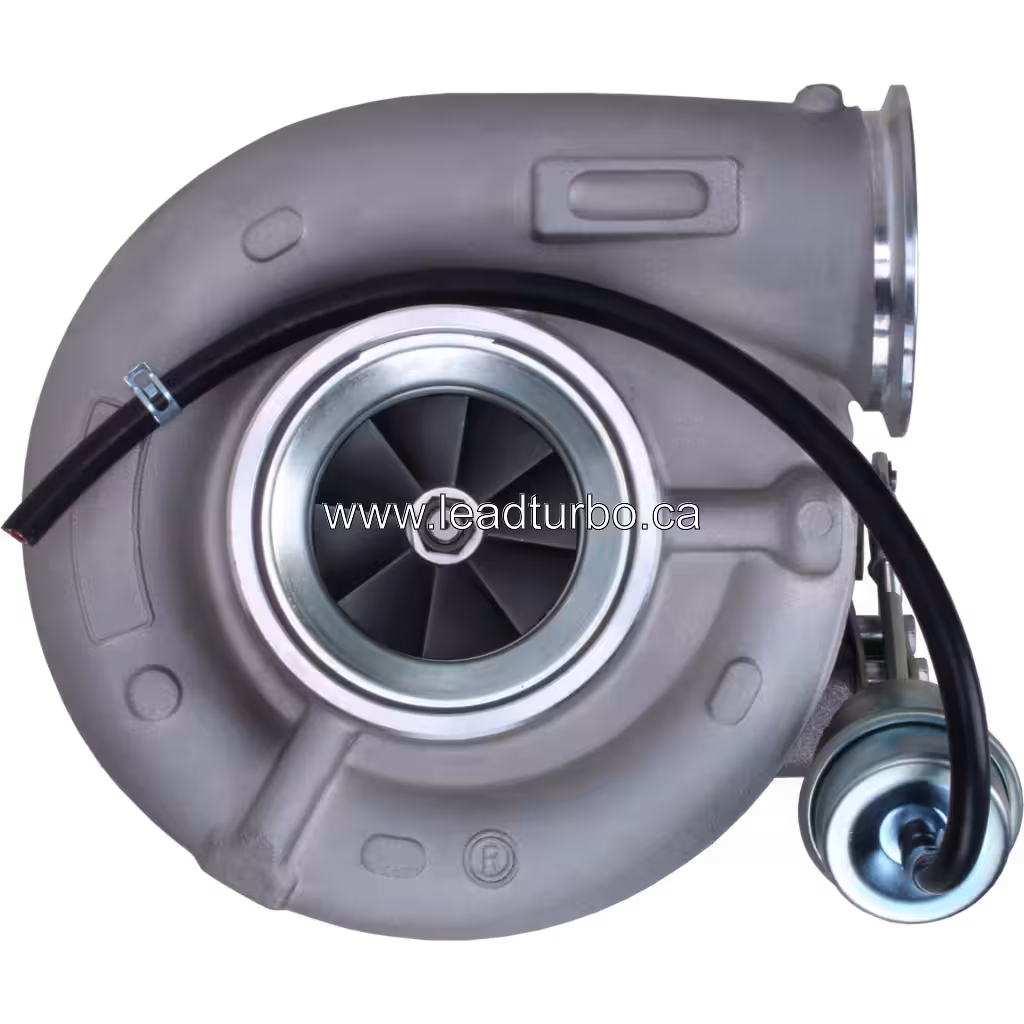

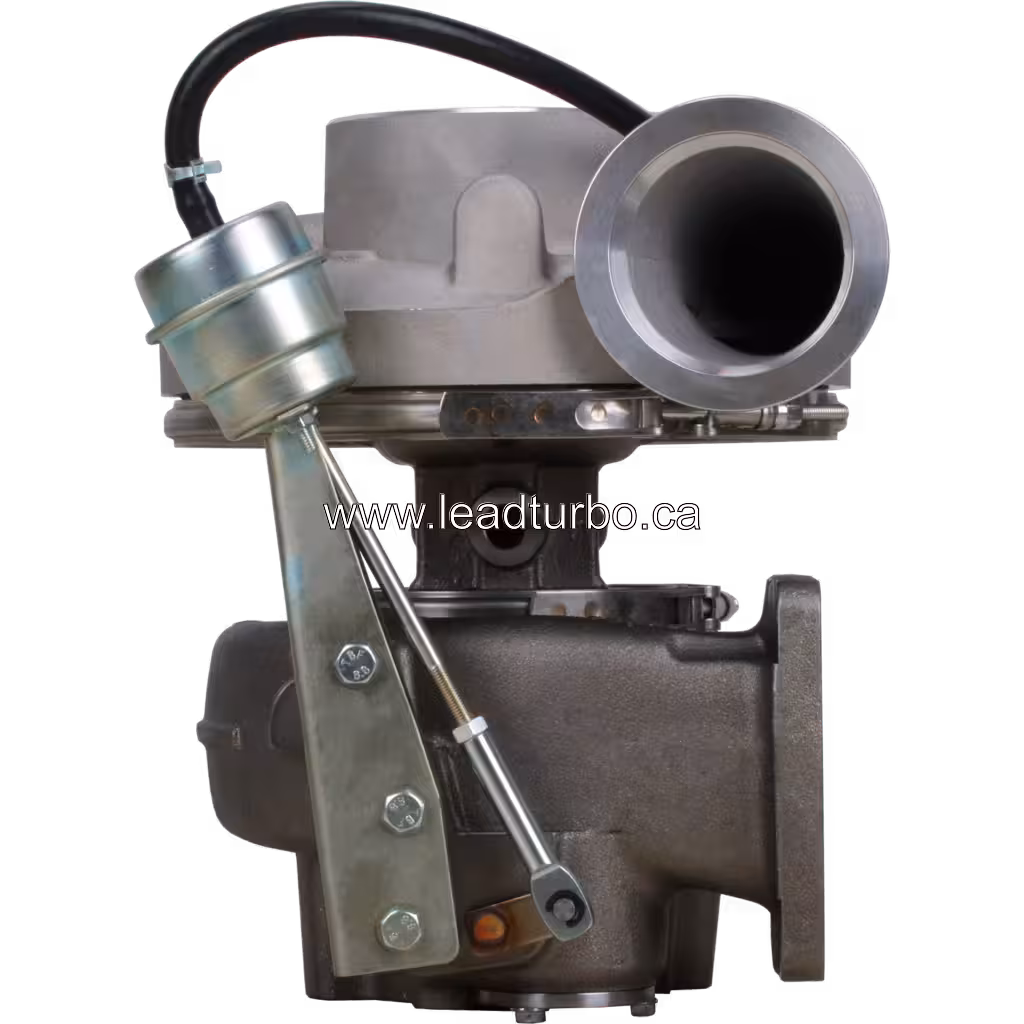

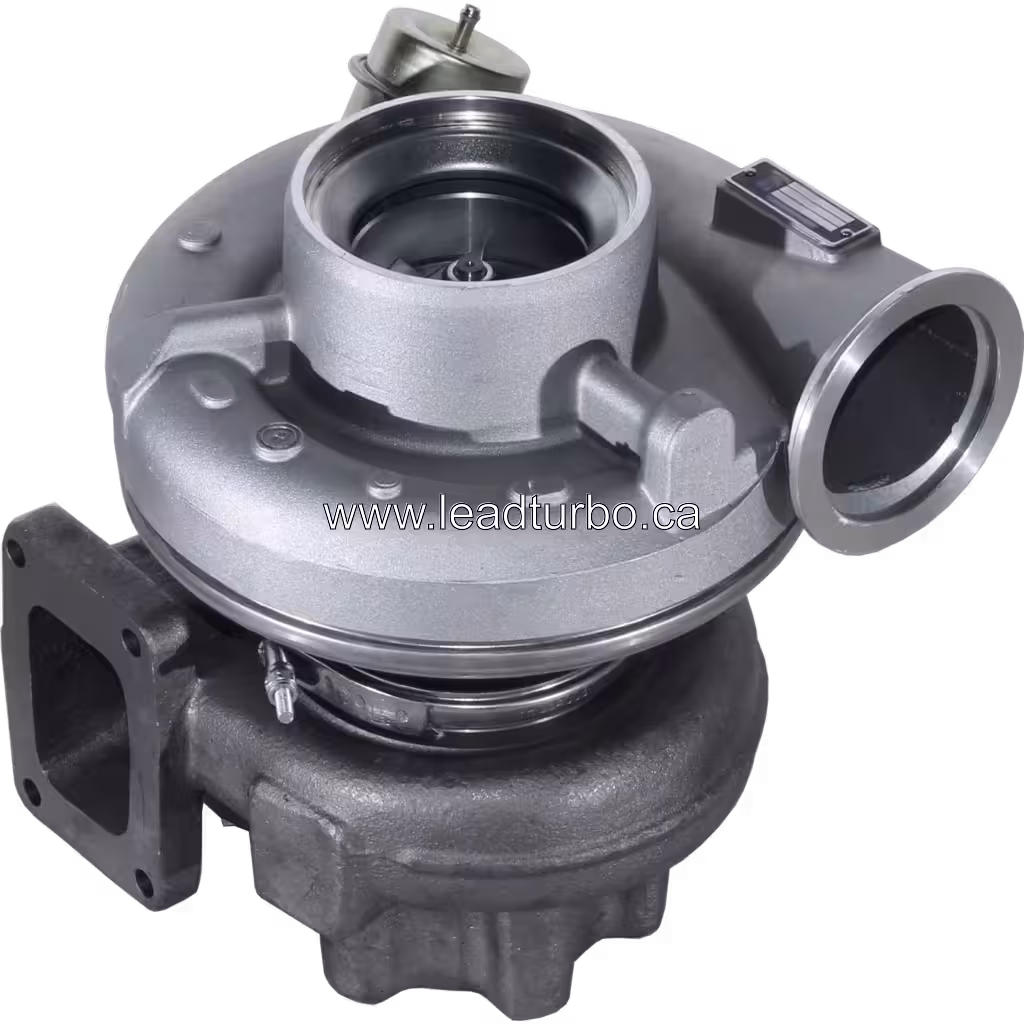

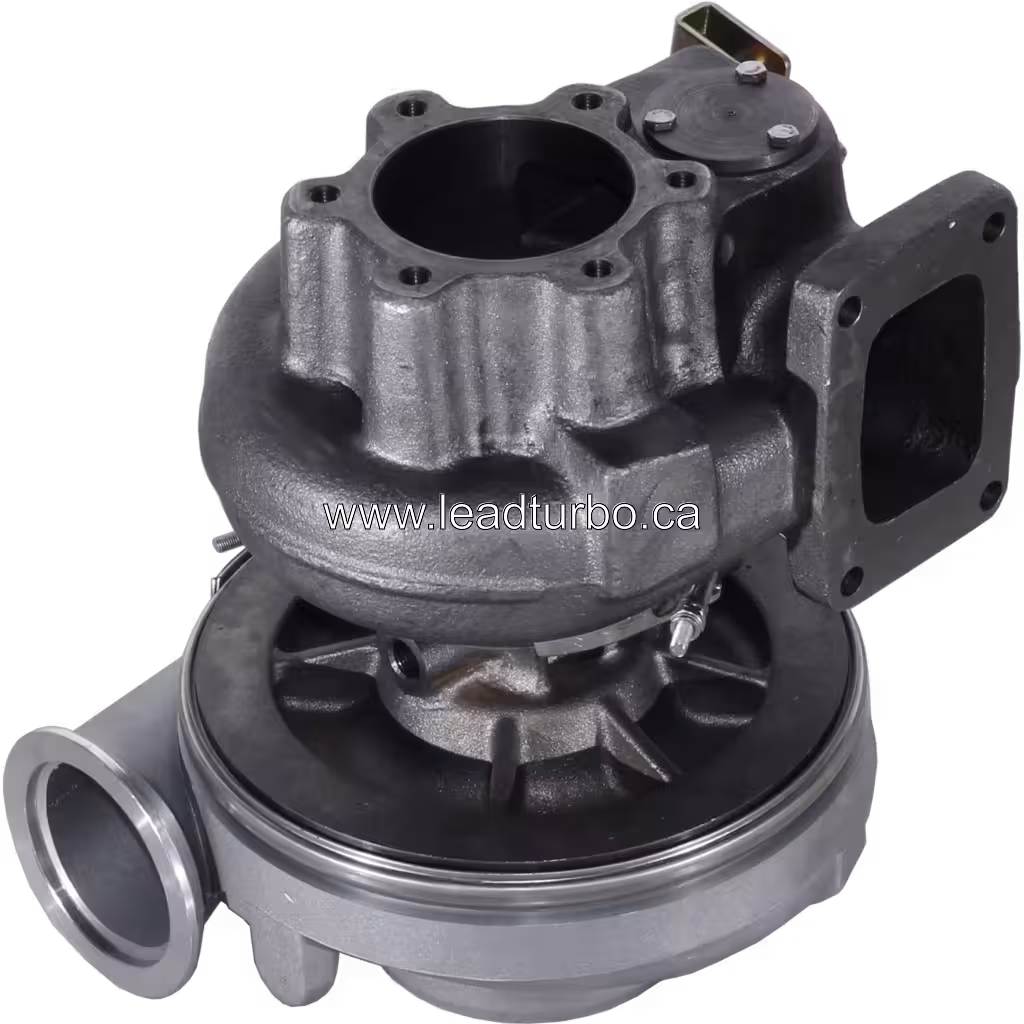

The HX60W assembly features a two-shell construction with a dark cast turbine housing and a lighter cast compressor housing. Visible components include a pneumatic actuator with a related hardware arm, a rectangular turbine inlet flange, and a round compressor outlet flange. An electrical related electrical detail port is present on the compressor housing. Buyers should verify the actuator related hardware configuration and flange dimensions against the existing unit. Confirm that the mounting bracket alignment matches the specific Cummins QSX15 or ISX Industrial engine block before installation.
B2B Supply
LeadTurbo supports B2B buyers with volume pricing and worldwide shipping for the 4955813 HX60W turbocharger. Technical fitment support is available to help verify part number, engine code, and OEM reference numbers such as 3594488 before ordering. Inquire about bulk orders for Cummins QSX15 or ISX Industrial applications. Confirm packing dimensions (35 x 36 x 43 cm) and gross weight (29.7 kg) for logistics planning. Contact our team for specific application verification and supply details.
Product FAQ
CUMMINS and other product, brand and model names are the property of their respective owners and are used for reference and application-lookup only. LeadTurbo is not affiliated with or endorsed by CUMMINS.
Compatibility Verify part number 4955813, engine code (QSX15/ISX), vehicle application, production year, and OEM reference numbers such as 3594488 or 3594490 before ordering. Confirm turbo configuration and mounting bracket alignment for your specific unit.
Customer Reviews
Share installation notes, fitment feedback, or service experience for this product.
No customer reviews have been added for this product yet.
