J96 Turbocharger Core Replacement 49135-03500-R

This aftermarket J96 turbocharger core (CHRA) is a replacement component for part number 49135-03500-R. It includes the turbine and compressor wheels mounted on a central housing, intended for rebuild applications where the original core is worn or damaged. Verify your specific engine and vehicle application against OEM reference 49135-08700-R before ordering to ensure correct fitment.

Key Specifications

• Part Number: FOR 49135-03500-R
• Product Type: Turbocharger Core (CHRA)
• Turbo Model: J96
• Gross Weight: 2 kg
• OEM Reference: 49135-08700-R
• Application Clue: Listed for OTHER TURBOCHARGER applications; verify specific engine and vehicle data.

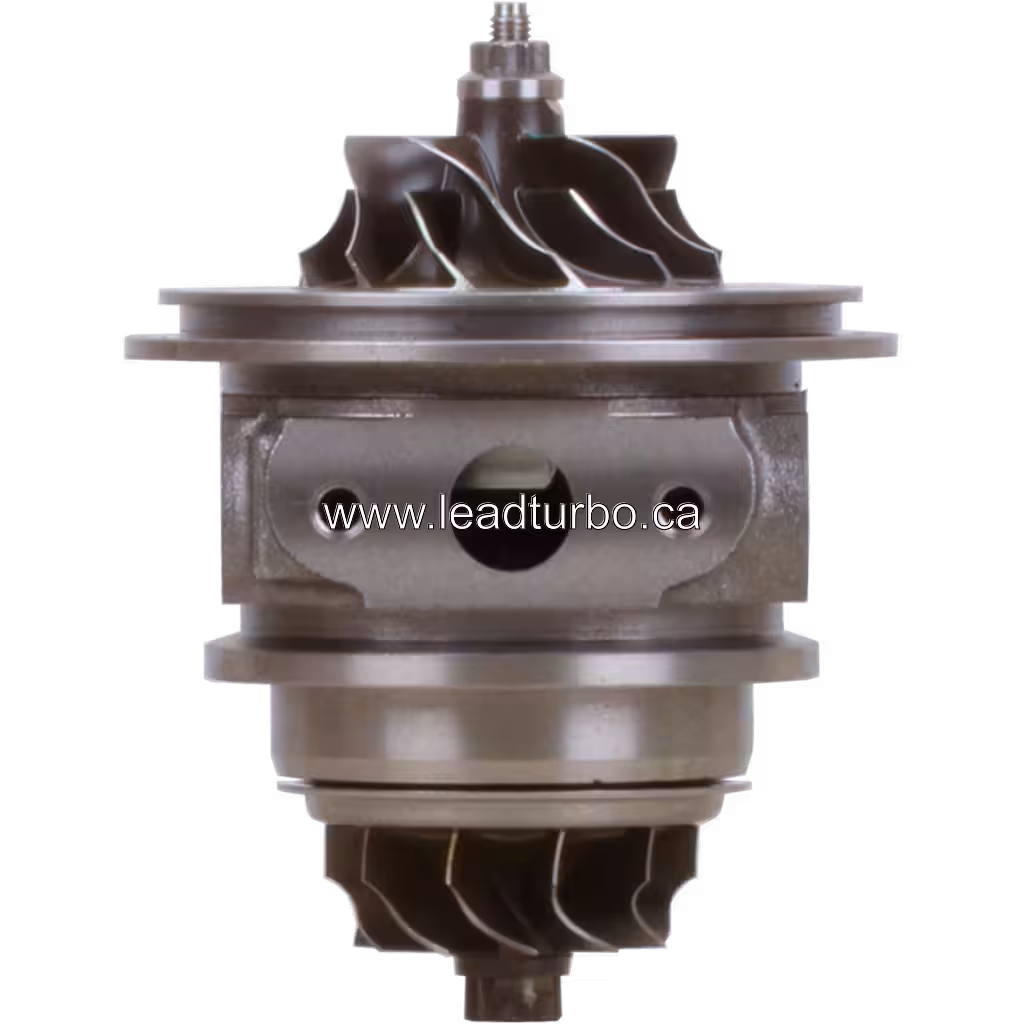

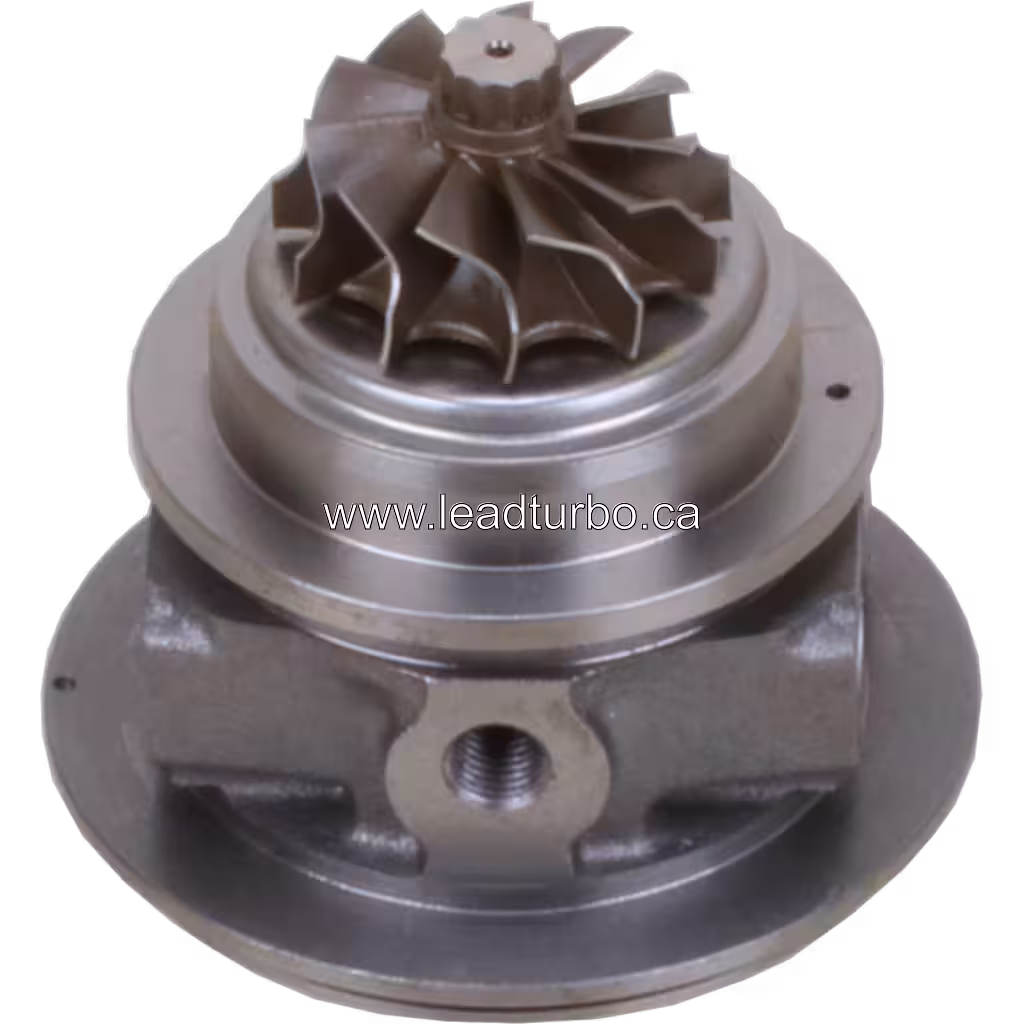

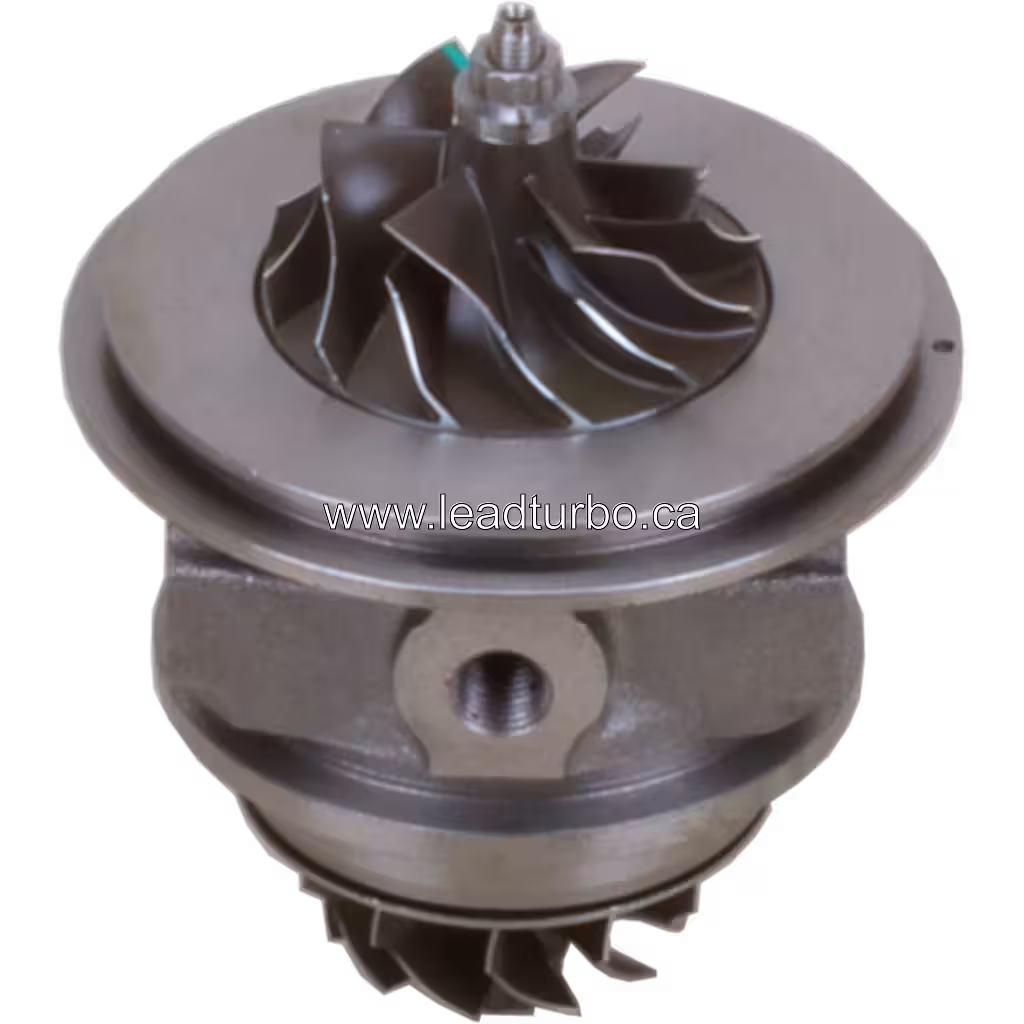

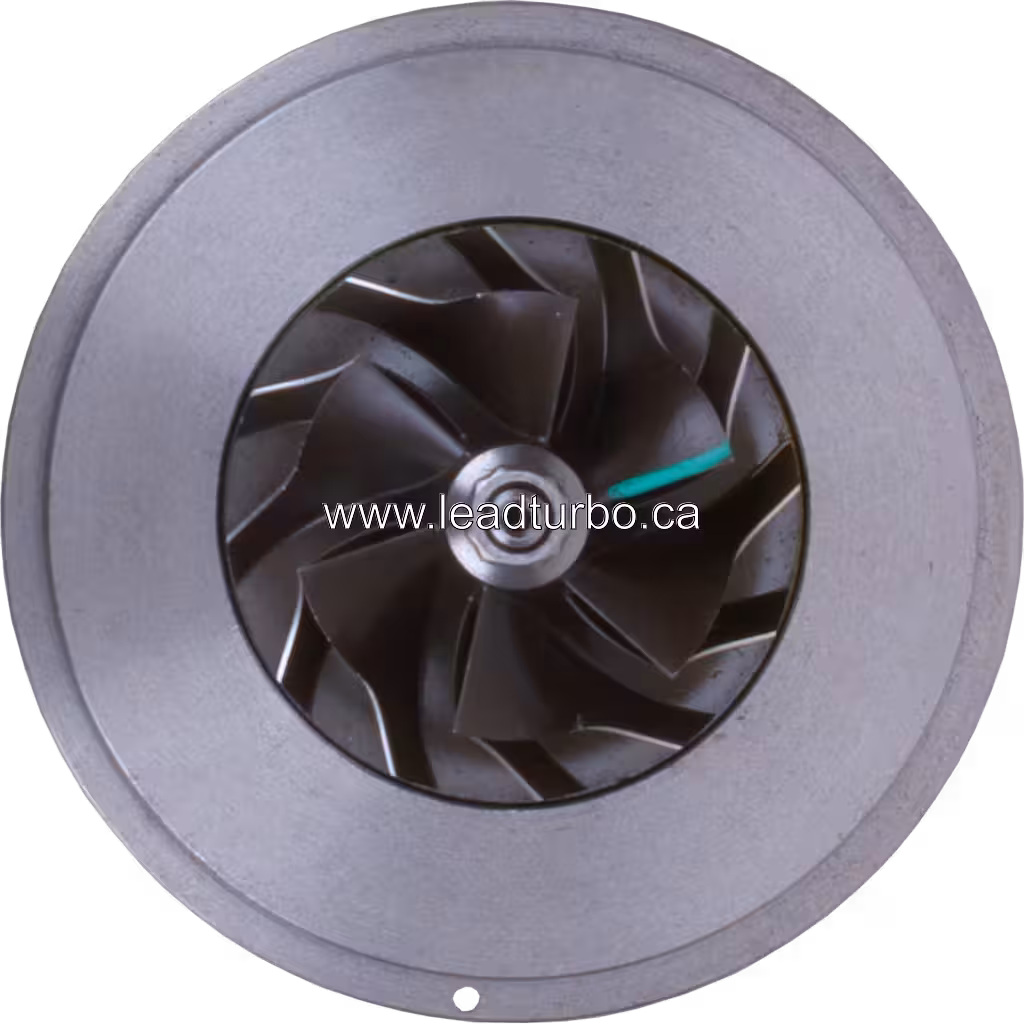

• Visible Features: Central cylindrical housing with cast matte finish, two circular mounting flanges with bolt holes, and a central threaded port. The assembly includes a top turbine wheel with curved dark blades and a bottom compressor wheel with lighter silver blades. Shaft ends feature a threaded tip with a green marker and a splined/grooved end respectively. High-resolution studio images are available for visual inspection of these components.

Application & Compatibility

Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:

• OTHER TURBOCHARGER

This J96 turbocharger core is listed for OTHER TURBOCHARGER applications. The part number 49135-03500-R and OEM reference 49135-08700-R serve as primary verification points for your specific engine and vehicle data. Because application clues are broad, buyers must confirm the exact turbo configuration, shaft splines, and mounting flange alignment against their existing unit. Do not rely on visual similarity or generic model names alone. Cross-reference these identifiers with your service manual or OEM parts catalog to ensure the core matches your rebuild requirements before placing an order.

Technical Notes

The J96 core assembly features a central cylindrical housing with a cast matte finish, supporting the turbine and compressor wheels. Visible mounting flanges include bolt holes for housing alignment, while the central threaded port allows for fluid or air routing. The shaft ends are distinct: the top features a threaded tip with a green marker, and the bottom displays a splined or grooved end for coupling. These physical characteristics help buyers verify that the core matches their specific rebuild requirements. Confirm that the shaft splines and flange geometry align with your existing housing before installation.

B2B Supply

LeadTurbo supports B2B buyers including repair shops, rebuilders, and distributors with volume pricing for part 49135-03500-R. Worldwide shipping is available for this J96 turbocharger core. Our team provides technical fitment support to help verify the core against your specific engine and vehicle application. Contact us for bulk quotes or to confirm compatibility using OEM reference 49135-08700-R before placing an order.
