TD04H-15G Core 49189-00501 for Isuzu 4BD1T/4BG1T
Aftermarket TD04H-15G core assembly for part number 49189-00501. Reference application includes Isuzu 4BD1T and 4BG1T engines. Verify OEM reference 49189-08100 and vehicle fitment before ordering.
Subtotal: CA$ 134.11
Send an InquiryThis aftermarket TD04H-15G core assembly is a replacement component for part number 49189-00501, designed for Isuzu 4BD1T and 4BG1T engines found in Hitachi and Kobelco construction equipment. Verify your specific vehicle application and OEM reference 49189-08100 before ordering to ensure correct fitment.
Key Specifications
- Part Number: FOR 49189-00501
- Product Type: Turbocharger Core (CHRA)
- Turbo Model: TD04H-15G
- OEM Reference: 49189-08100
- Gross Weight: 2 kg
- Application Clues: Isuzu 4BD1T/4BG1T engines

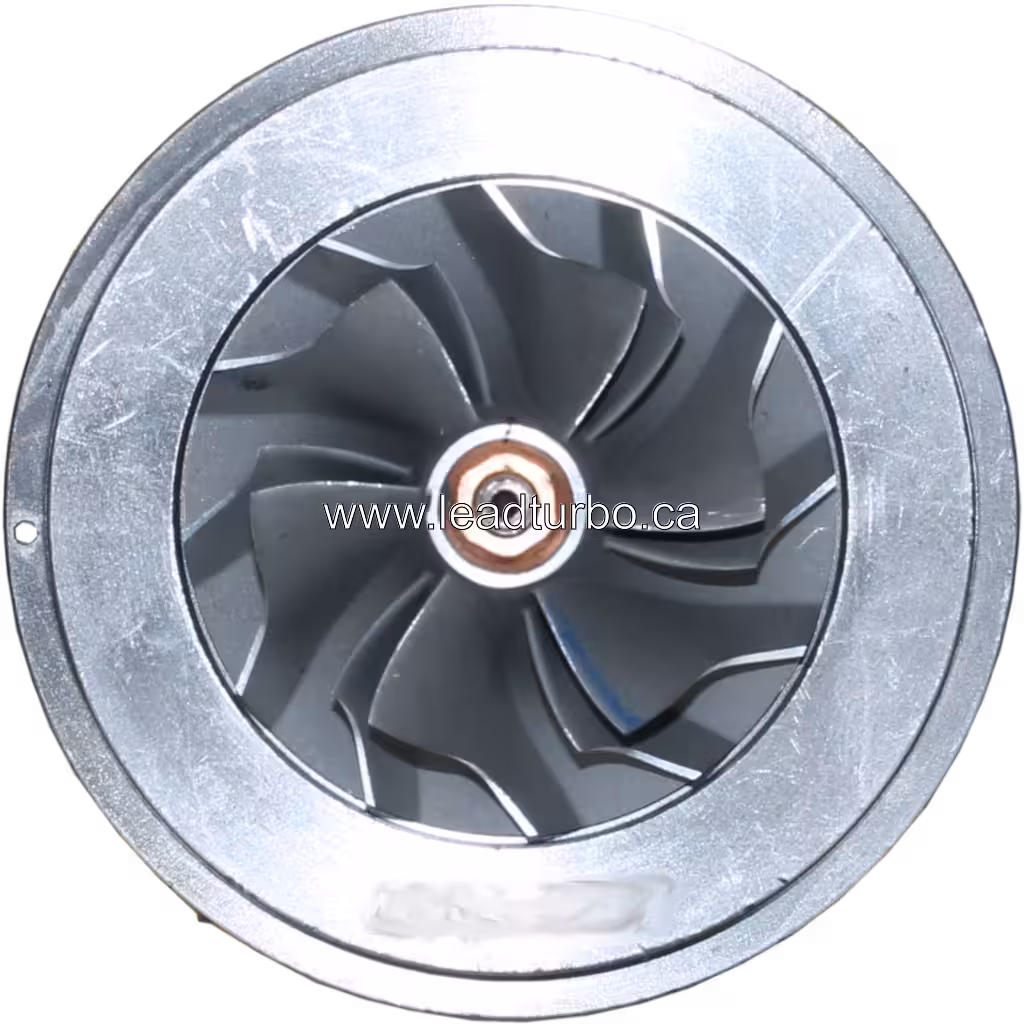

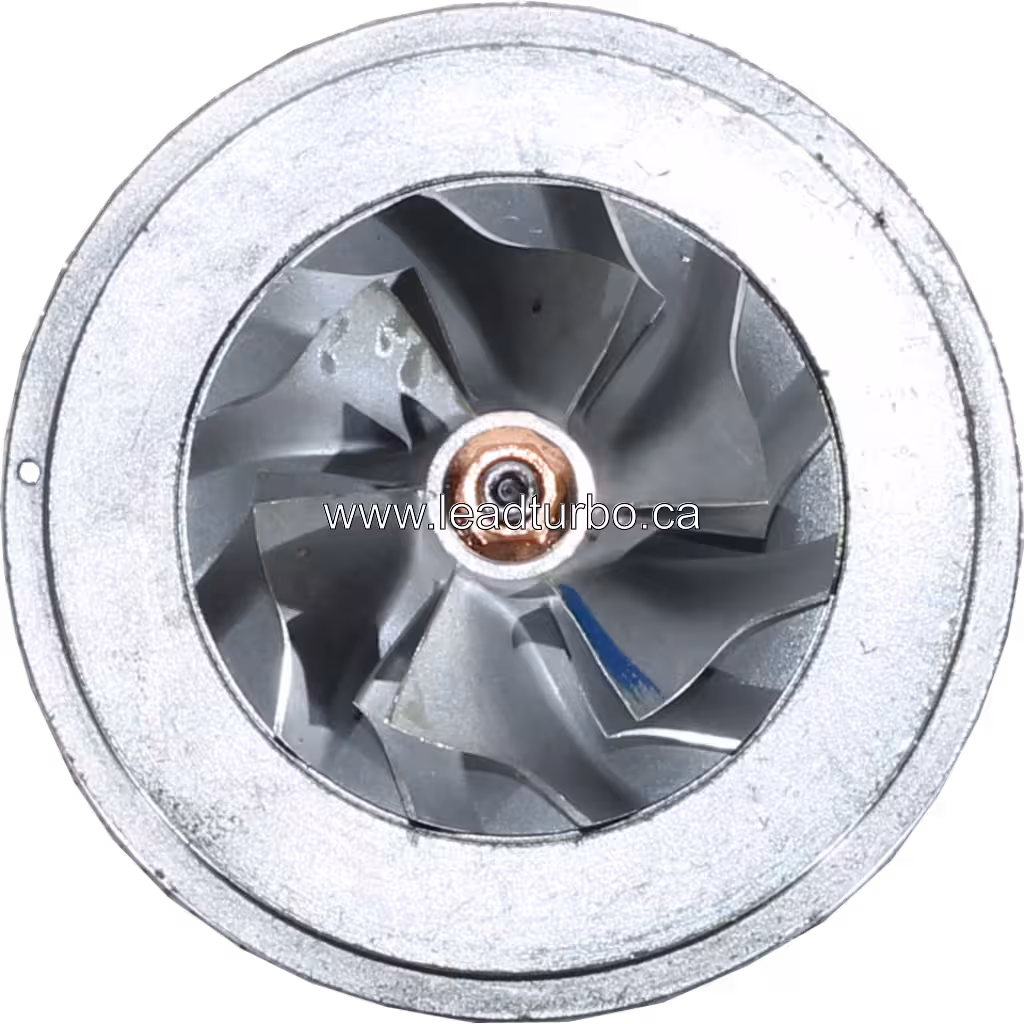

- Image Availability: High-resolution front, top, and bottom views provided

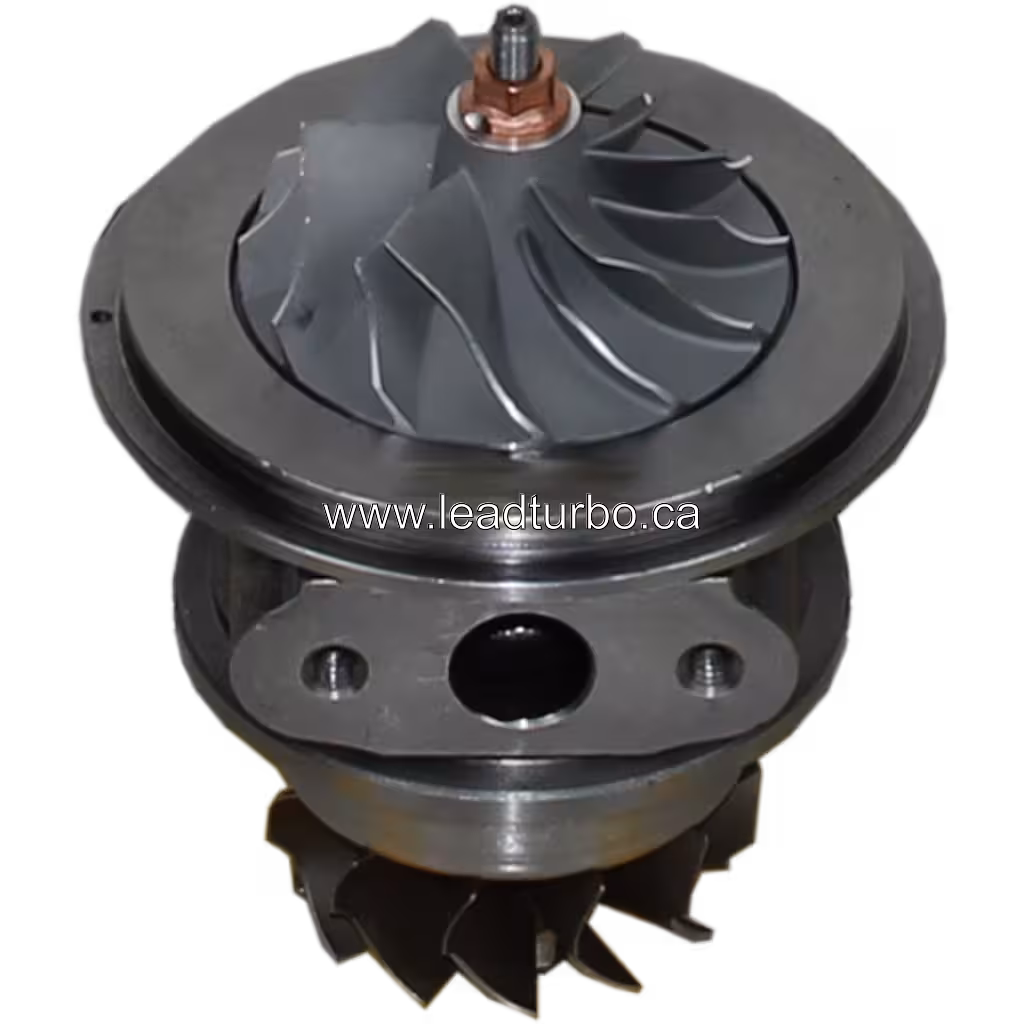

This core assembly includes the central bearing housing, compressor wheel, and turbine wheel. The visible silver compressor housing and dark turbine wheel allow buyers to verify housing orientation and mounting position against existing units. Use the provided images to confirm the flange bolt pattern and turbine inlet orientation before ordering.
Application & Compatibility
Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:
- HITACHI > HITACHI EX120-2 3 > ISUZU 4BD1T 4BG1T
- HITACHI > HITACHI EX100-3 > ISUZU 4BD1-T
- KOBELCO > KOBELCO SK120-1 > ISUZU 4BG1T
This core is listed for reference applications including Hitachi EX120-2/3 and EX100-3, as well as Kobelco SK120-1, all equipped with Isuzu 4BD1T or 4BG1T engines. These application paths serve as verification clues rather than confirmed fitment confirms. Buyers should cross-check the OEM reference 49189-08100 against their specific equipment documentation. Verify the engine code, turbo model TD04H-15G, and mounting position before ordering to ensure the replacement application matches your unit.
Technical Notes

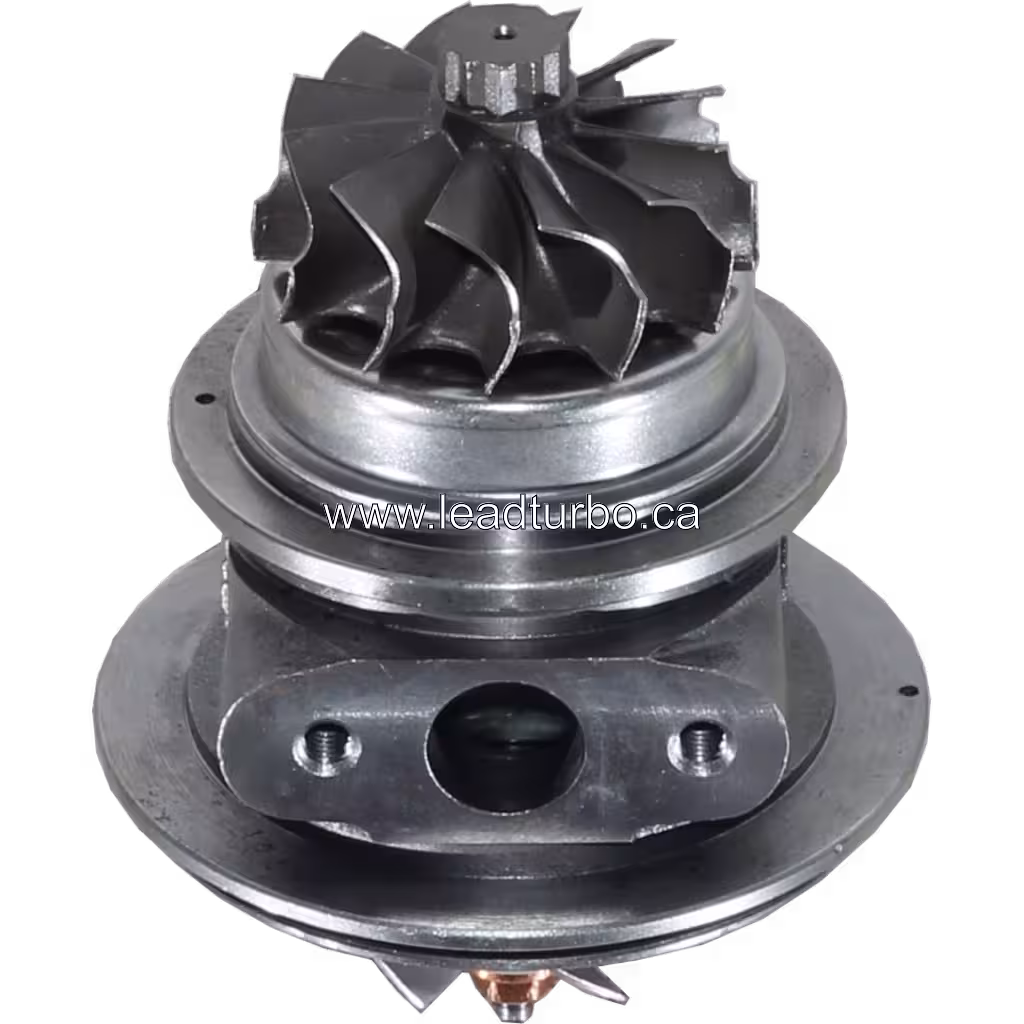

The TD04H-15G core assembly features a central bearing housing connecting the compressor and turbine sections. Visible components include a silver compressor housing, a dark grey turbine wheel, and a flange with two bolt holes on the turbine side. Buyers should verify the housing orientation and mounting position against their existing unit using the provided front, top, and bottom views. Confirm the flange bolt pattern and turbine inlet orientation match your specific application before ordering. This core is a replacement component for part number 49189-00501, associated with Isuzu 4BD1T and 4BG1T engines.
B2B Supply
LeadTurbo supports B2B buyers with volume pricing and worldwide shipping for this TD04H-15G core assembly. Technical fitment support is available to help verify part number 49189-00501, engine codes 4BD1T/4BG1T, and OEM reference 49189-08100 before ordering. Contact our team for bulk inquiries or to confirm application details for Hitachi and Kobelco equipment.
Product FAQ
HITACHI and other product, brand and model names are the property of their respective owners and are used for reference and application-lookup only. LeadTurbo is not affiliated with or endorsed by HITACHI.
Compatibility Verify part number 49189-00501, engine code (4BD1T/4BG1T), vehicle application (Hitachi EX120-2/3, Kobelco SK120-1), and OEM reference 49189-08100 before ordering. Confirm turbo configuration and mounting position match your unit.
Customer Reviews
Share installation notes, fitment feedback, or service experience for this product.
No customer reviews have been added for this product yet.
