Titanium alloy compressor wheel
Titanium alloy compressor wheels help reduce rotating mass while maintaining high strength, supporting faster response and stable operation in demanding turbocharger applications.
Click image to zoom

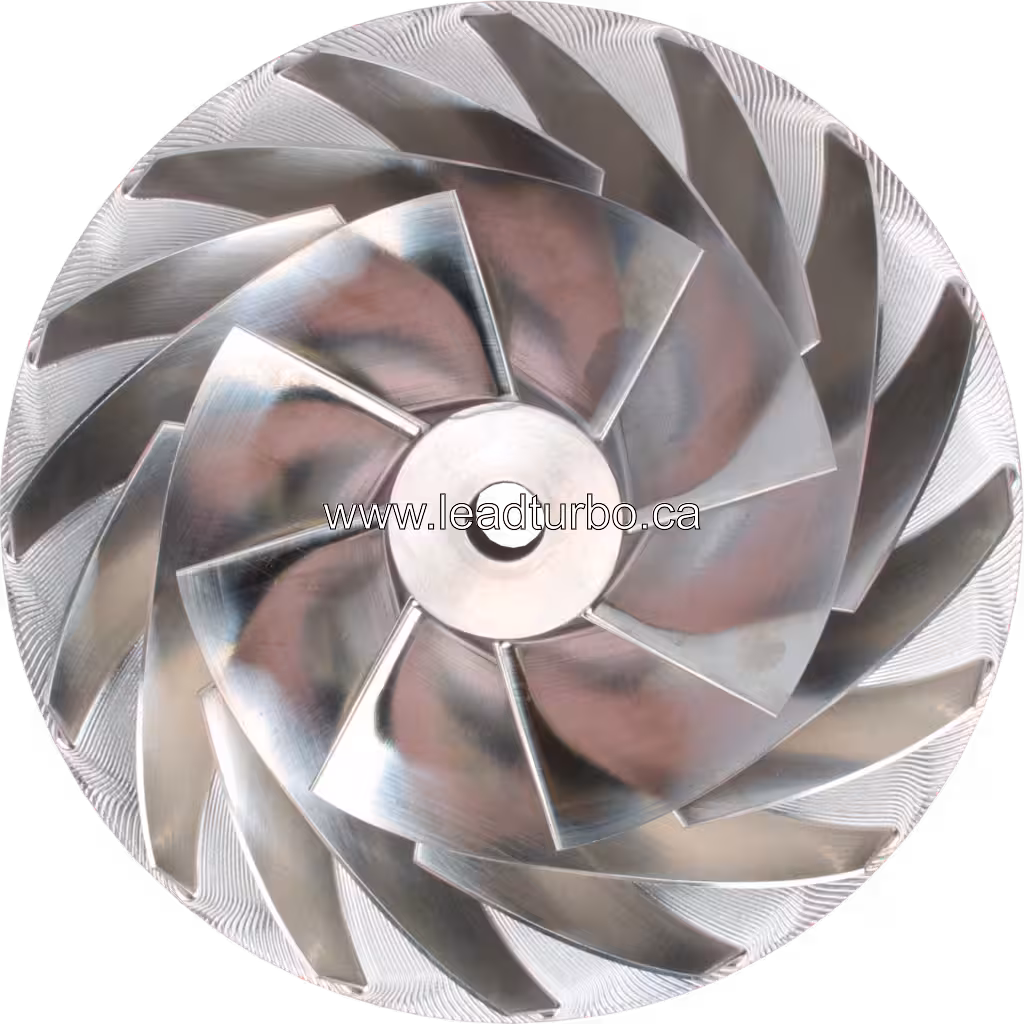

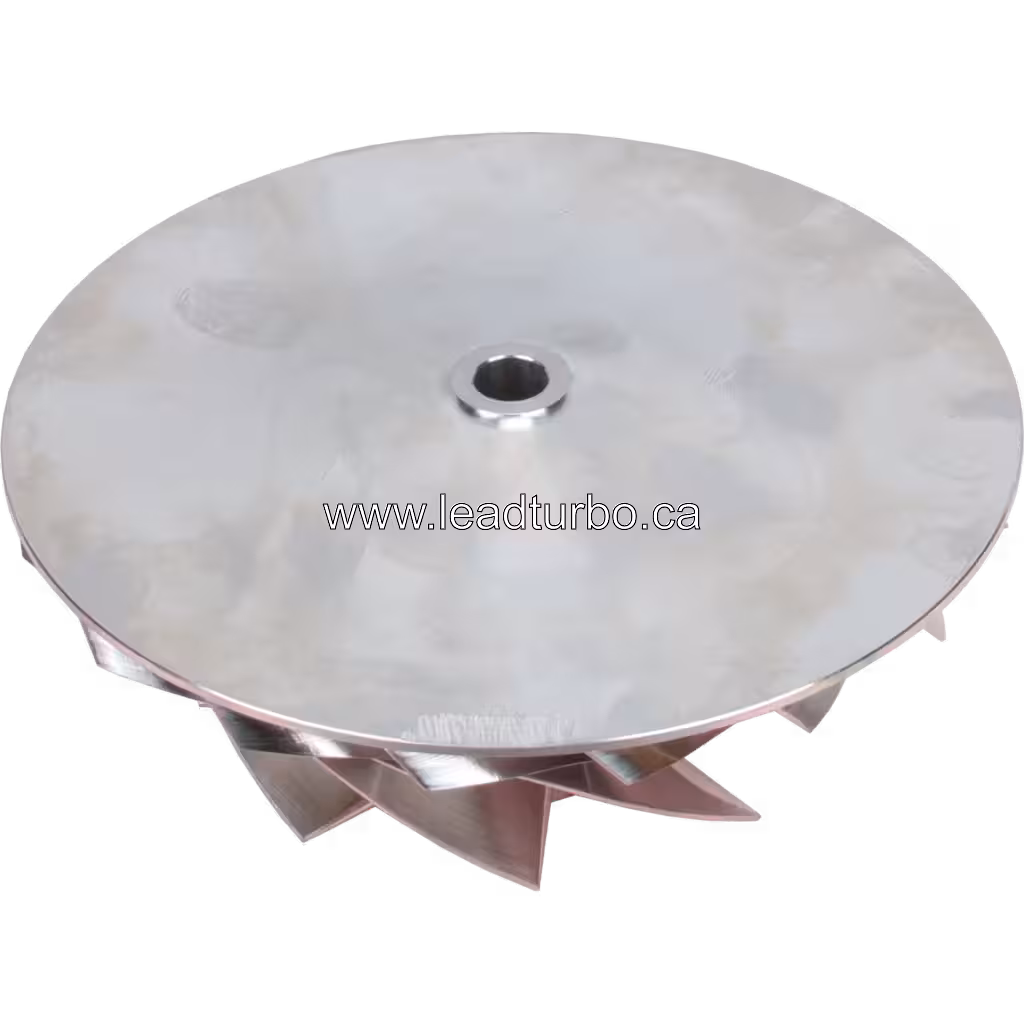

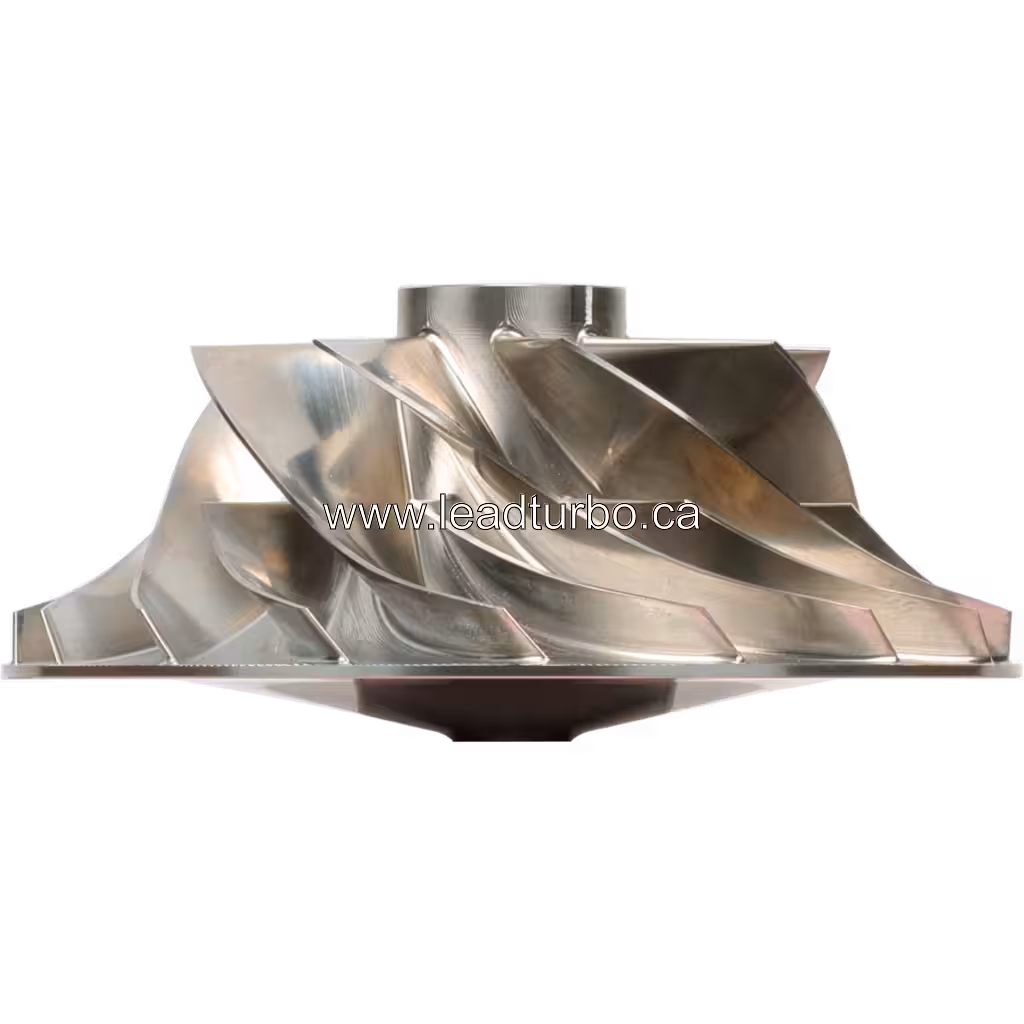

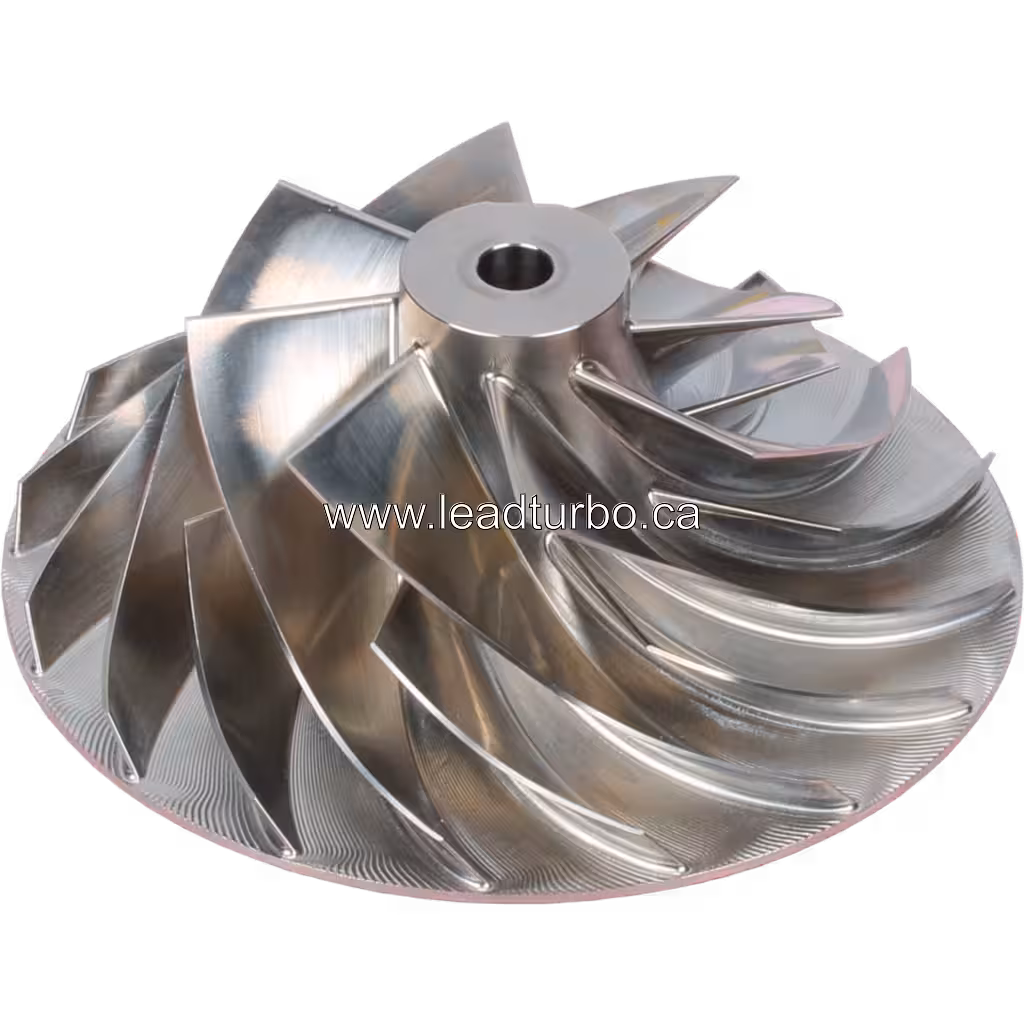

3794701 HX83 Turbocharger Compressor Wheel for Cummins QSK19 & QSK38
Aftermarket 3794701 HX83 compressor wheel for Cummins QSK19 and QSK38 engines. Reference application for PowerTec PCC750B generators and Hitachi EX1900-6 excavators. Verify part number and OEM references before ordering.
Orders without stock ship approximately 60 days after ordering. Estimated ship date if ordered today: .
Cross Reference
2835434
Show more cross references
2835434 2835436 2835438 3596537 3794692 4040242 CW 4043871 CW 4047881 CW FOR 2834735 CW FOR 2834736 CW FOR 2837529 CW FOR 2837531 CW FOR 2837532 CW FOR 2837533 CW FOR 2837540 CW FOR 2838541 CW FOR 2839330 CW FOR 2881773 CW FOR 2882106 CW FOR 2882149 CW FOR 3772777 CW FOR 3776242 CW FOR 3776243 CW FOR 3776244 CW FOR 3777194 CW FOR 3777195 CW FOR 3777586 CW FOR 3782897 CW FOR 3790718 CW FOR 3790719 CW FOR 3794409 CW FOR 4032779 CW FOR 4033005 CW FOR 4033010 CW FOR 4033755 CW FOR 4033761 CW FOR 4040239 CW FOR 4040240 CW FOR 4040241 CW FOR 4043253 CW FOR 4043255 CW FOR 4043625 CW FOR 4047882 CW FOR 4048348 CW FOR 4048349 CW FOR 4049908 CW FOR 4049909 CW FOR 4049910 CW FOR 4089987 CW FOR 4309173 CW FOR 4309558 CW FOR 4955933 CW FOR 4956137 CW FOR 4956143 CW FOR 4956144 CW FOR 4956145 CW
CA$ 1140
/ 1 pc(s)
Qty
Subtotal: CA$ 1140
Standard shipping for one packed item (CAD)
| Canada | CA$ 102.28 |
|---|
Orders without stock ship approximately 60 days after ordering. Estimated ship date if ordered today: .
Standard rates exclude duties, taxes and remote-area, residential or special-packaging charges. Sales confirms the total before payment.
Shipping zones and full policyProduct Key Features
5-axis CNC milled compressor wheel
5-axis CNC milling supports precise blade geometry, consistent surface finish, and repeatable compressor wheel dimensions for stable airflow characteristics.
This aftermarket 3794701 HX83 compressor wheel is a replacement component for turbochargers in Cummins QSK19 and QSK38 engines, serving PowerTec PCC750B generator systems and Hitachi EX1900-6 mining excavators. Verify your specific turbo model and OEM reference numbers against this part before ordering to ensure correct fitment.
Key Specifications
- Part Number: 3794701
- Product Type: Compressor wheel
- Turbo Model: HX83
- Application Clues: Cummins QSK19 (PowerTec PCC750B generators), Cummins QSK38 (Hitachi EX1900-6 excavators)
- Packing: 17x17x11 cm
- Gross Weight: 1.5 kg
- Representative OEM References: 2835434, 2835436, 3596537, 4040242 CW
- Image Availability: Yes
Application & Compatibility
Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:
- POWERTEC GENERATOR SYSTEM > PCC750B; 545 kW prime > 600 kW standby > 600 kW standby Genset > CUMMINS QSK19 805HP
- HITACHI > EX1900-6 > EX1900-6 Mining excavator > hydraulic shovel > CUMMINS QSK38
- HITACHI > EX1900-6 > EX1900-6 Mining excavator > QSK38
- HITACHI > Hitachi Excavator > Cummins QSK38
This 3794701 HX83 compressor wheel is listed for reference applications in Cummins QSK19 and QSK38 engines, including PowerTec PCC750B generator systems and Hitachi EX1900-6 mining excavators. These application paths serve as verification clues; buyers must confirm their specific engine code, turbo model, and OEM reference numbers against the existing unit before ordering. The part is associated with 56 OEM reference numbers, such as 2835434, 2835436, and 4040242 CW, which help identify the correct replacement application. Verify the turbo model HX83 and specific OE numbers on your old part to ensure the correct compressor wheel geometry is selected for your configuration.
Technical Notes
The HX83 turbocharger model is a large-frame unit typically associated with high-horsepower industrial and mining applications. For this specific compressor wheel, verify that your existing turbocharger matches the HX83 designation and part number 3794701. The visible metallic construction features curved radial blades and a central hub, but material grade and exact dimensions are not confirmed by visual inspection alone. Cross-check the 56 listed OEM reference numbers, such as 2835434 and 4040242 CW, against your old part to ensure the correct geometry is selected for your Cummins QSK19 or QSK38 engine configuration.
B2B Supply
LeadTurbo supports B2B buyers, repair shops, and distributors with volume pricing and worldwide shipping for this 3794701 HX83 compressor wheel. Technical fitment support is available to help verify part numbers, engine codes, and OEM reference numbers before ordering. Contact our team to confirm the correct replacement application for your Cummins QSK19 or QSK38 configuration.
Product FAQ
This part is referenced for Cummins QSK19 engines in PowerTec PCC750B generator systems and Cummins QSK38 engines in Hitachi EX1900-6 mining excavators. Verify your specific engine and turbo configuration before ordering.
Confirm that your existing turbocharger is an HX83 model and matches part number 3794701. Use the turbo model to narrow down the correct compressor wheel geometry for your specific application.
Compare your old part against representative references such as 2835434, 2835436, 3596537, and 4040242 CW. There are 56 total OEM references listed for this part; verify the specific number on your old unit.
The unit ships in a 17x17x11 cm carton with a gross weight of 1.5 kg. This compact packaging is suitable for standard freight and courier shipping options.
PCC750B; 545 kW prime and other product, brand and model names are the property of their respective owners and are used for reference and application-lookup only. LeadTurbo is not affiliated with or endorsed by PCC750B; 545 kW prime.
Compatibility Verify part number 3794701, engine code (QSK19/QSK38), vehicle or generator application, and OEM reference numbers against your existing unit before ordering. This is an aftermarket replacement application; confirm turbo model HX83 and specific OE numbers for your configuration.
