4044427 CH Compressor Housing HX80 HX85 Turbochargers

This aftermarket FOR 4044427 CH compressor housing is a replacement component for HX80 and HX85 turbochargers, listed for Cummins KTA50, KT306, and KV16 engine applications. It serves as a housing replacement for mining trucks and gensets, with 75 associated OEM reference numbers available for fitment verification.

Key Specifications

• Part Number: FOR 4044427 CH
• Product Type: Compressor Housing
• Turbo Model: HX80 / HX85
• Gross Weight: 6 kg
• Packing Dimensions: 36 x 34 x 21 cm
• OEM References: 75 associated numbers, including 3539268, FOR 2840120 CH, and FOR 2841973 CH

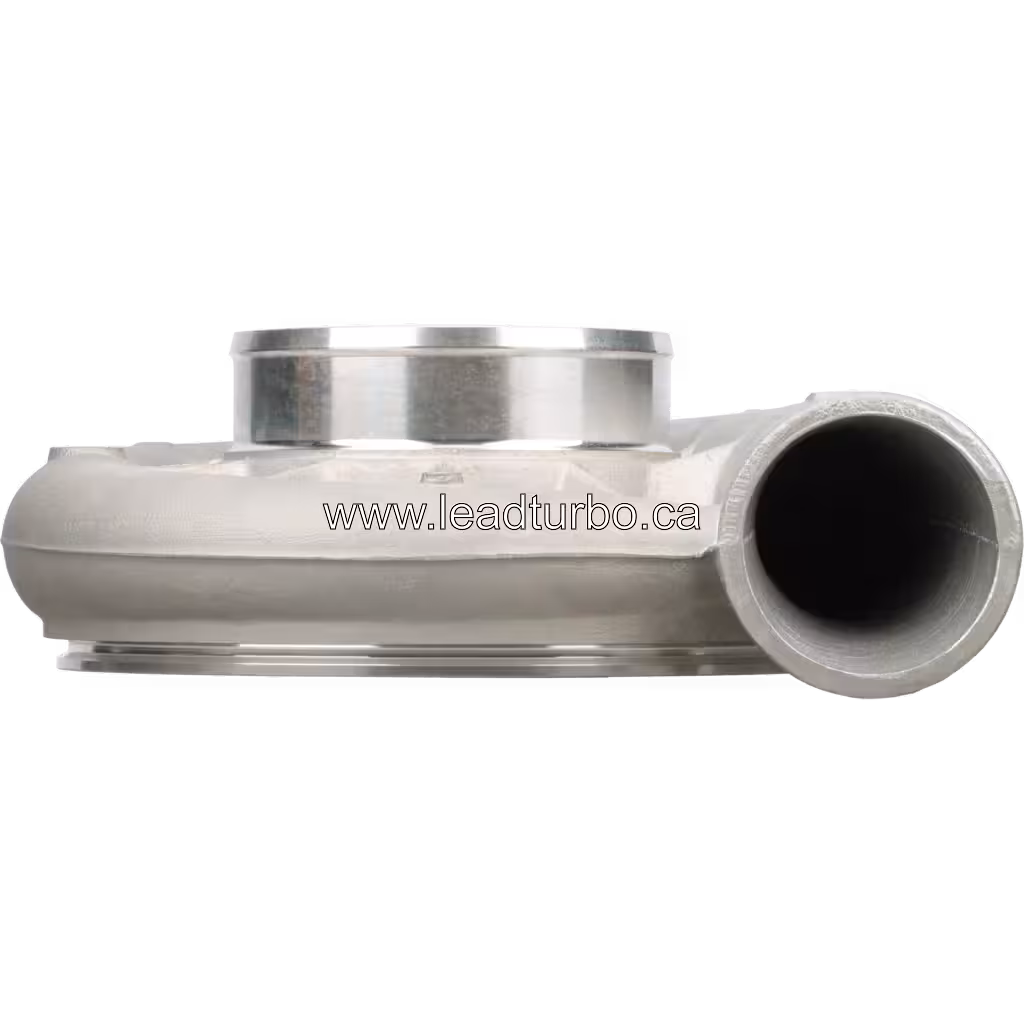

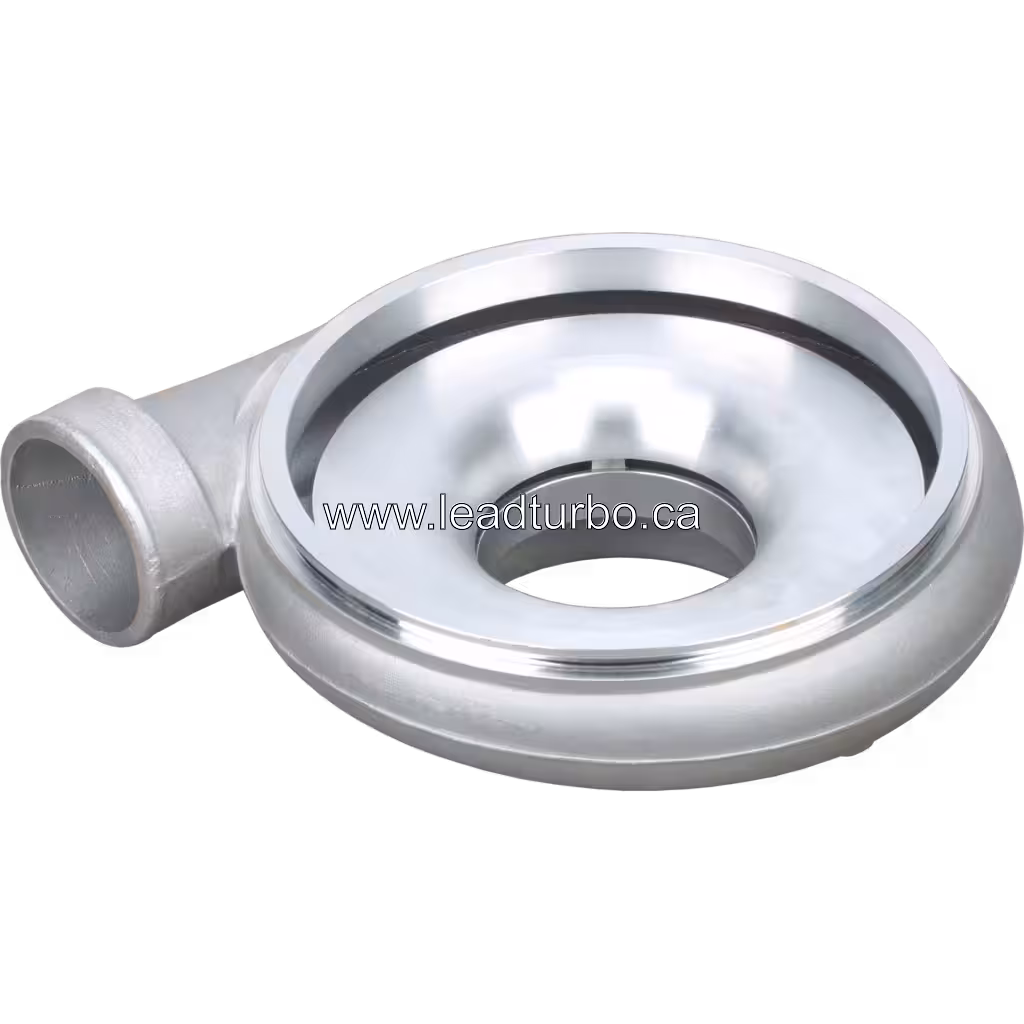

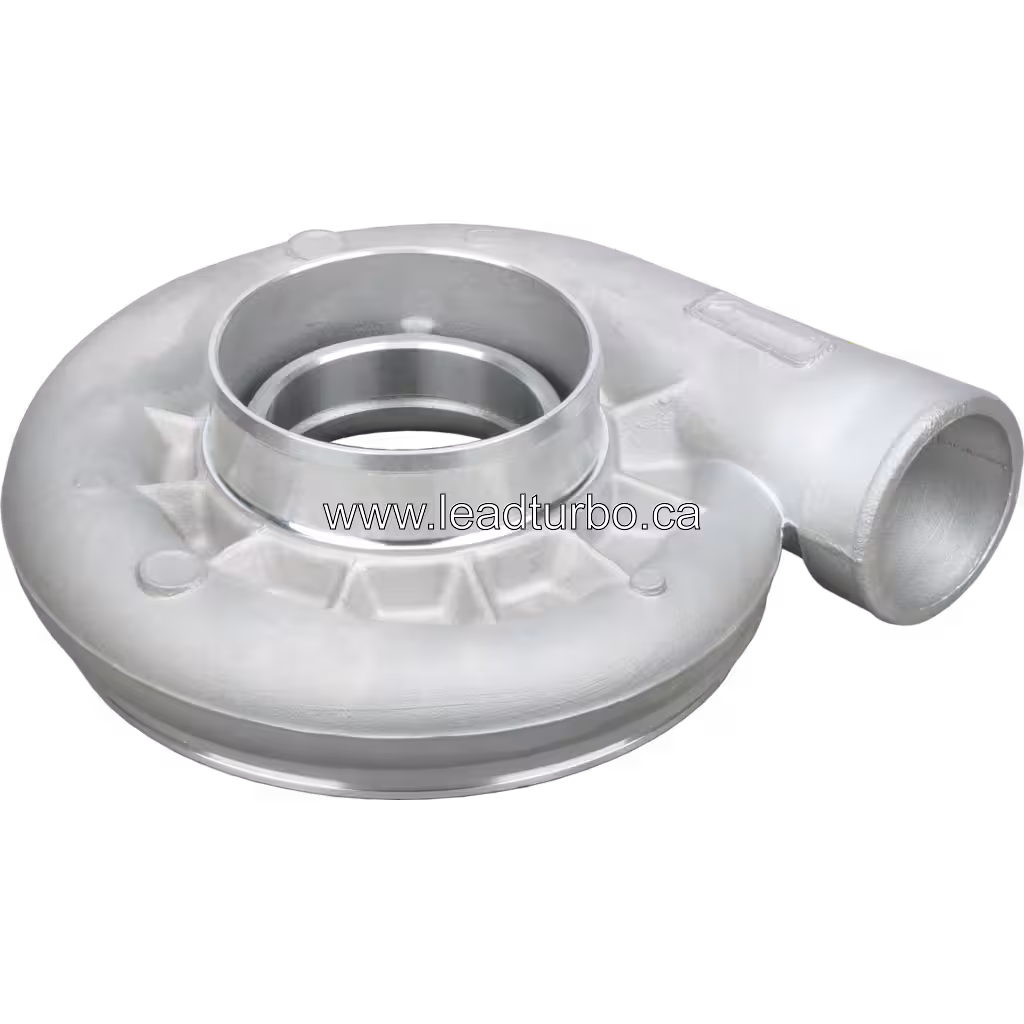

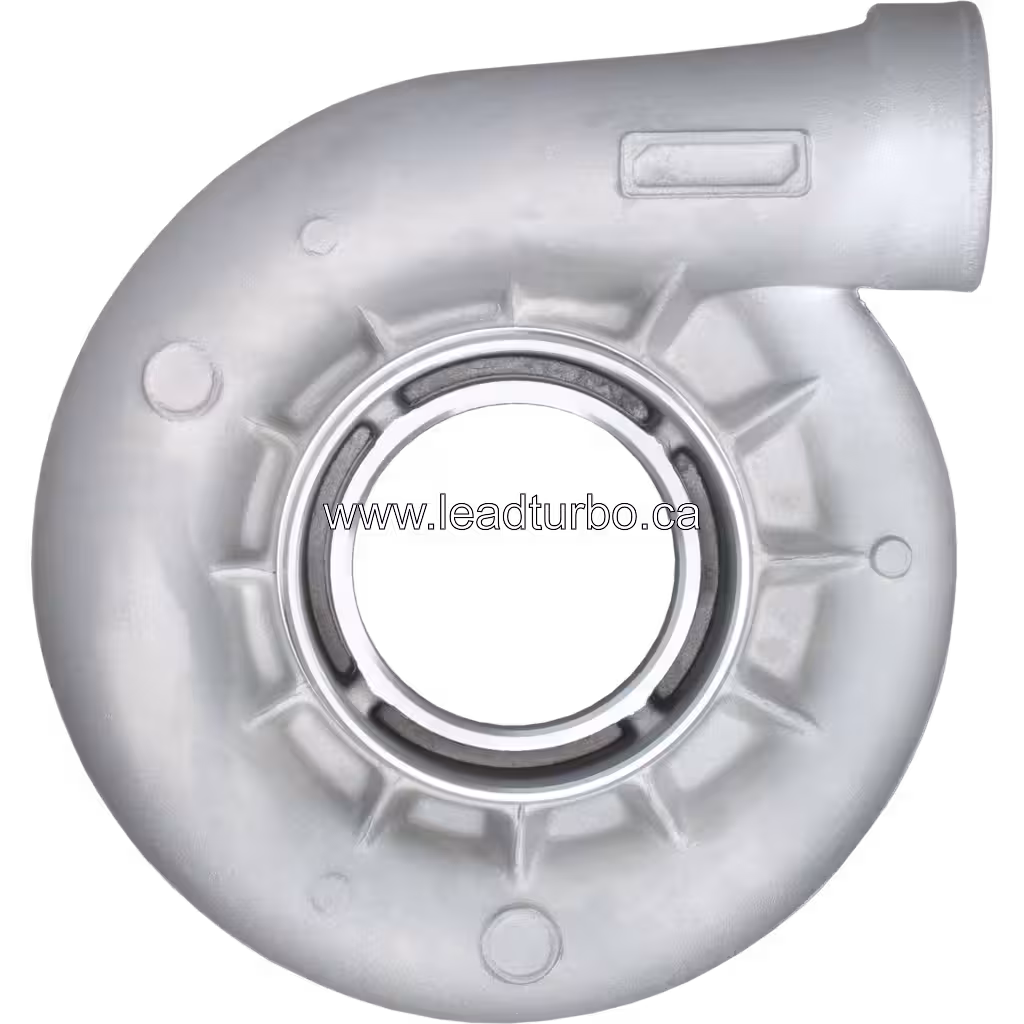

• Visual Features: Silver cast metal body with a single tangential outlet, machined central bore, and reinforcing ribs on the top surface

Application & Compatibility

Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:

• BelAZ > Belaz Mining Truck > Belaz mining dump truck > Cummins KTA50
• KOMATSU > HD1200M-1 (serial 1501-up documented) > HD1200M-1 (serial 1501-up documented) Haul truck > CUMMINS KT306
• ONAN > DB 620-900 > DB 620-900 Genset > CUMMINS KV16

This housing is listed for reference application on Cummins KTA50, KT306, and KV16 engines, supporting BelAZ mining trucks, KOMATSU HD1200M-1 haul trucks, and ONAN DB 620-900 gensets. Buyers should verify the specific engine code and vehicle serial range before ordering. The part is associated with 75 OEM reference numbers, including 3539268, FOR 2840120 CH, and FOR 2841973 CH. Use these references to confirm fitment against your existing turbocharger configuration. Technical fitment support is available to assist with verification of part numbers and application details.

Technical Notes

The FOR 4044427 CH housing is a cast metal component with a single tangential outlet and machined central bore. Visible reinforcing ribs on the top surface support structural integrity. Buyers should inspect the mating CHRA shaft diameter and bearing housing oil ports for debris or scoring before installation. If foreign object damage is present on the old unit, clean the oil and air intake systems to protect the new housing. Verify the specific HX80 or HX85 configuration against your engine application.
