316309 Turbocharger Core for MAN D2866LF

This aftermarket 316309 turbocharger core is a replacement component for MAN D2866LF engine applications. It is listed for MAN and Neoplan D2866LF reference paths, serving as a rebuild part for heavy-duty commercial vehicles. Verify your specific engine code and vehicle configuration before ordering to ensure correct fitment.

Key Specifications

• Part Number: 316309
• Product Type: Turbocharger Core
• Gross Weight: 7 kg
• Application Clues: MAN D2866LF, Neoplan D2866LF
• Image Availability: High-resolution studio photography available

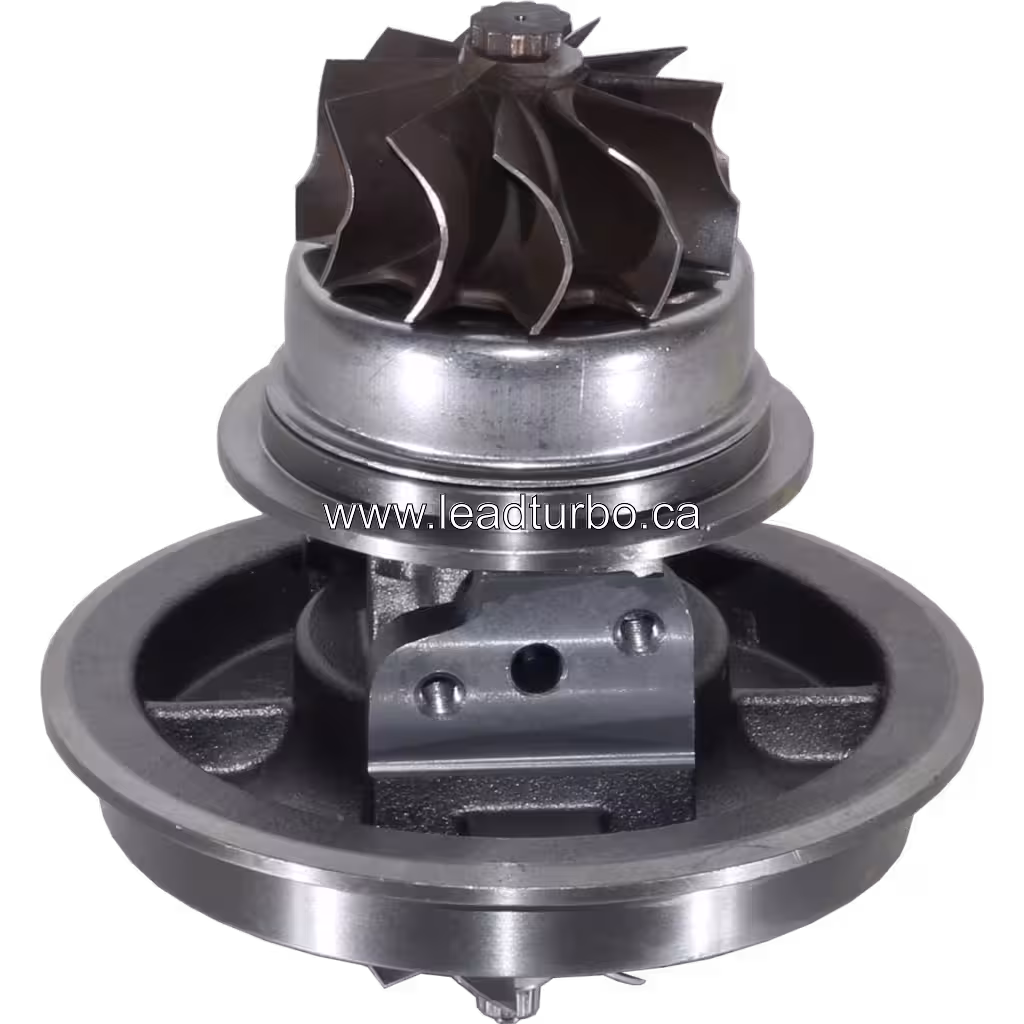

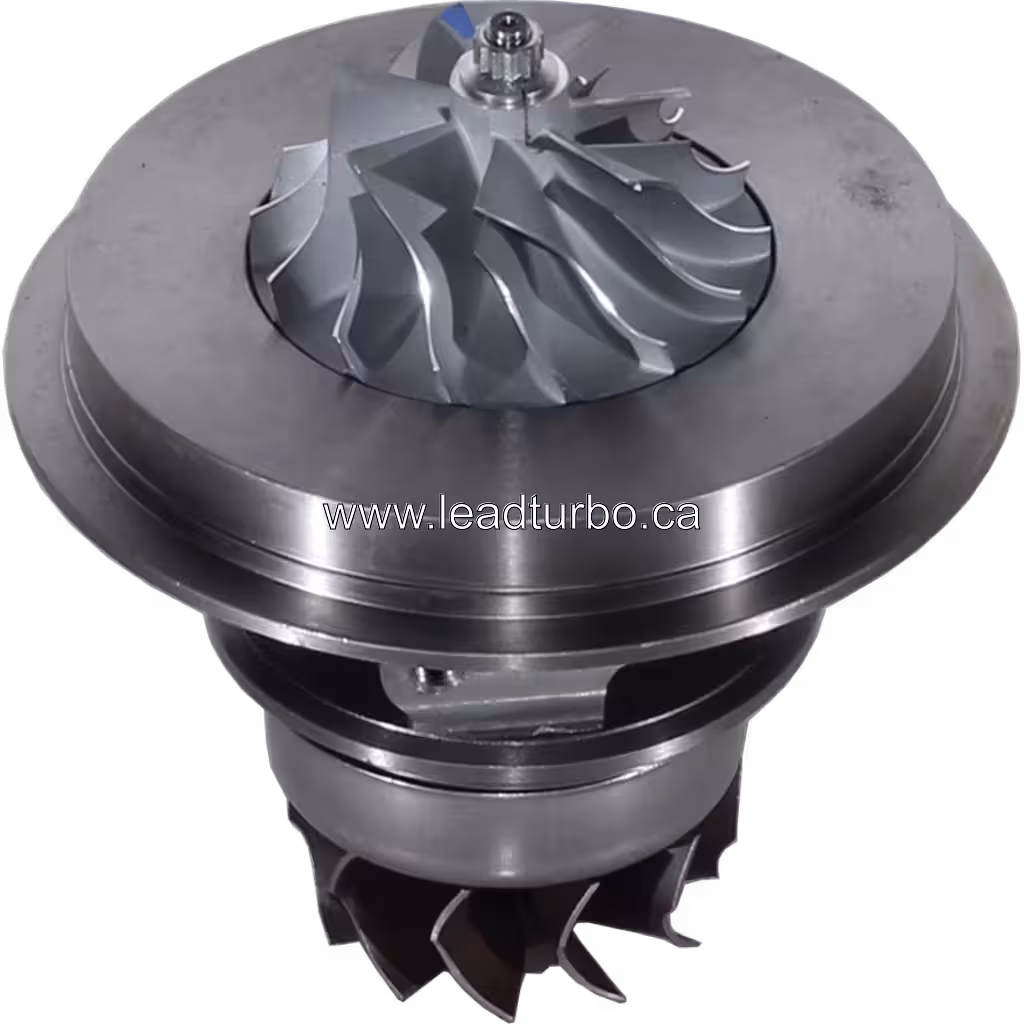

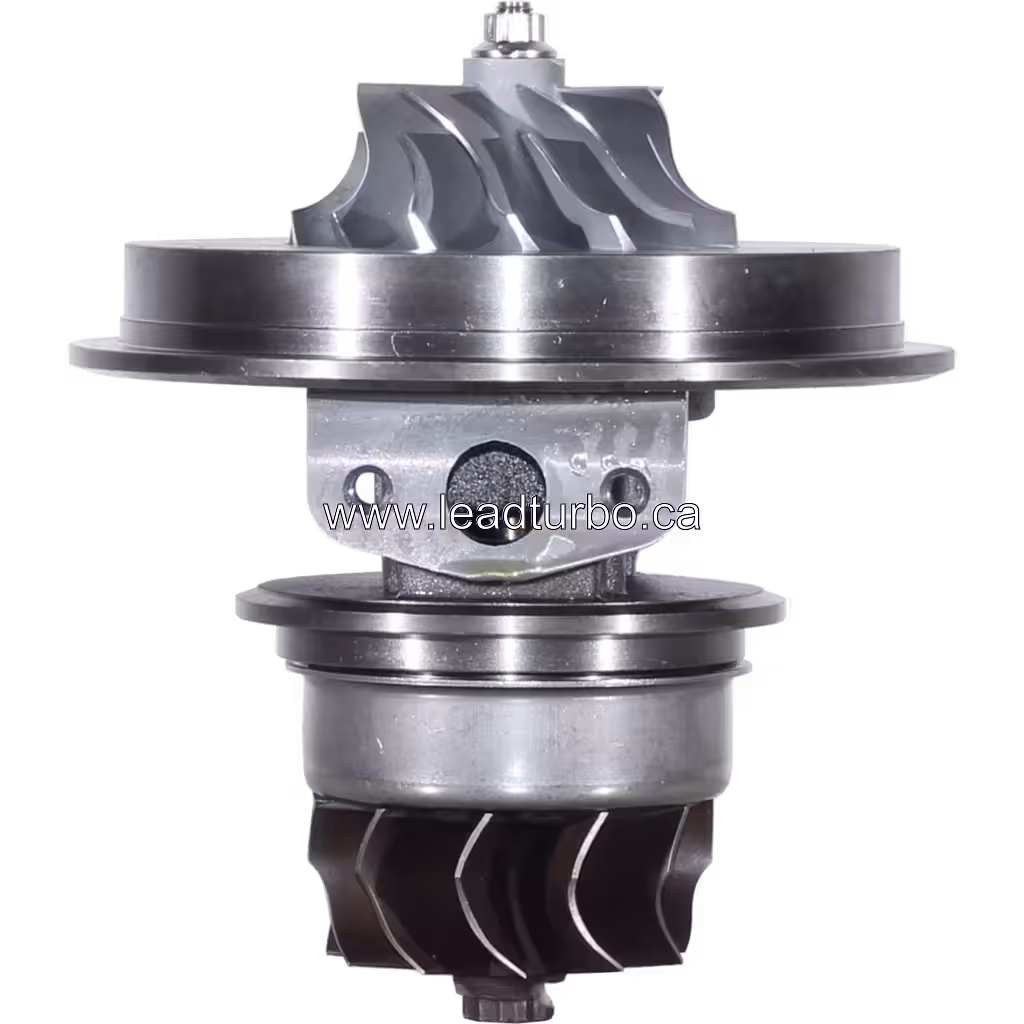

This core assembly includes the central shaft, compressor wheel, turbine wheel, and bearing housing. The visible metallic housing components and machined flanges are shown in the provided front and 45-degree views. Verify the specific engine code and vehicle configuration against your unit before ordering.

Application & Compatibility

Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:

• MAN > D2866LF
• Neoplan > D2866LF

This 316309 turbo core is listed for MAN D2866LF and Neoplan D2866LF reference applications. These paths serve as initial clues for heavy-duty commercial vehicle rebuilds. Buyers must verify the specific engine code, vehicle configuration, and OEM reference numbers against their unit before ordering. Do not assume universal fitment based on the engine family alone. Confirm the backplate alignment and housing flange dimensions match your existing assembly to ensure proper installation.

Technical Notes

The 316309 core assembly features a central shaft with visible compressor and turbine wheels, along with a bearing housing equipped with mounting tabs and bolt holes. The compressor housing flange displays a machined surface, while the turbine housing flange shows a cast texture with internal support ribs. These structural elements are critical for alignment during rebuilds. Buyers should inspect the backplate for proper bolt hole spacing and verify that the flange dimensions match the existing housing to prevent air leaks or vibration. Confirm the oil slinger design on the compressor end is intact to maintain lubrication integrity. Verify the heat shield condition for corrosion or deformation before installation. Technical fitment support is available to assist with these verification steps.

B2B Supply

LeadTurbo supports B2B buyers, repair shops, and distributors with volume pricing for the 316309 turbo core. Worldwide shipping is available for this MAN D2866LF replacement component. Technical fitment support is provided to assist with verifying part numbers, engine codes, and housing alignment before shipment. Inquire for bulk order details and pre-shipment inspection options.
