3523850 BP HC5A Turbocharger Back Plate Replacement
Aftermarket HC5A back plate, part no. FOR 3523850 BP. Reference application for Cummins KTA38 in Komatsu PC3000/PC4000. Verify OEM references and engine code before ordering.
Orders without stock ship approximately 60 days after ordering. Estimated ship date if ordered today: .
Show more cross references
3520782-CAST-2 3524862 3545532 BP 3545702 BP FOR 3522954 BP FOR 3523851 BP FOR 3524451 BP FOR 3524460 BP FOR 3524632 BP FOR 3524633 BP FOR 3524650 BP FOR 3524651 BP FOR 3524652 BP FOR 3524653 BP FOR 3524658 BP FOR 3524659 BP FOR 3524762 BP FOR 3525218 BP FOR 3525219 BP FOR 3525354 BP FOR 3525355 BP FOR 3530006 BP FOR 3533953 BP FOR 3533954 BP FOR 3538129 BP FOR 3538130 BP FOR 3592524 BP FOR 3594027 BP FOR 3594054 BPSubtotal: CA$ 69
Send an InquiryThis FOR 3523850 BP back plate is an aftermarket replacement component for the HC5A turbocharger, designed for Cummins KTA38 engines in Komatsu PC3000 and PC4000 mining shovel excavators. It serves as a reference application for heavy equipment maintenance, with 29 associated OEM reference numbers available for fitment verification.
Key Specifications
- Part Number: FOR 3523850 BP
- Product Type: Turbocharger Back Plate
- Turbo Model: HC5A
- Application Clues: Cummins KTA38 engine; Komatsu PC3000/PC4000 mining shovel excavators
- Packing: 34*36*2 bubble bag
- Gross Weight: 3 kg
- OEM Reference Numbers: 29 associated references, including 3520782-CAST-2, 3524862, and 3545532 BP
- Image Availability: High-resolution studio images showing front, top, and bottom views
Verify the part number FOR 3523850 BP against your specific HC5A turbo configuration and engine code before ordering.
Application & Compatibility
Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:
- KOMATSU > PC3000; PC4000 > PC3000; PC4000 Mining shovel > Excavator > CUMMINS KTA38
- CUMMINS
This back plate is listed for Cummins KTA38 engines in Komatsu PC3000 and PC4000 mining shovel excavators. It is associated with 29 OEM reference numbers, including 3520782-CAST-2, 3524862, and 3545532 BP, which serve as verification clues for your specific HC5A turbo configuration.
- Engine Application: Cummins KTA38
- Vehicle Application: Komatsu PC3000 / PC4000 Mining Shovel Excavator
- Verification Step: Cross-check the 29 associated OEM references against your existing part or service manual.
Treat these application paths as reference clues only. Verify the part number FOR 3523850 BP, engine code, and specific turbo model before ordering to ensure the correct replacement application.
Technical Notes

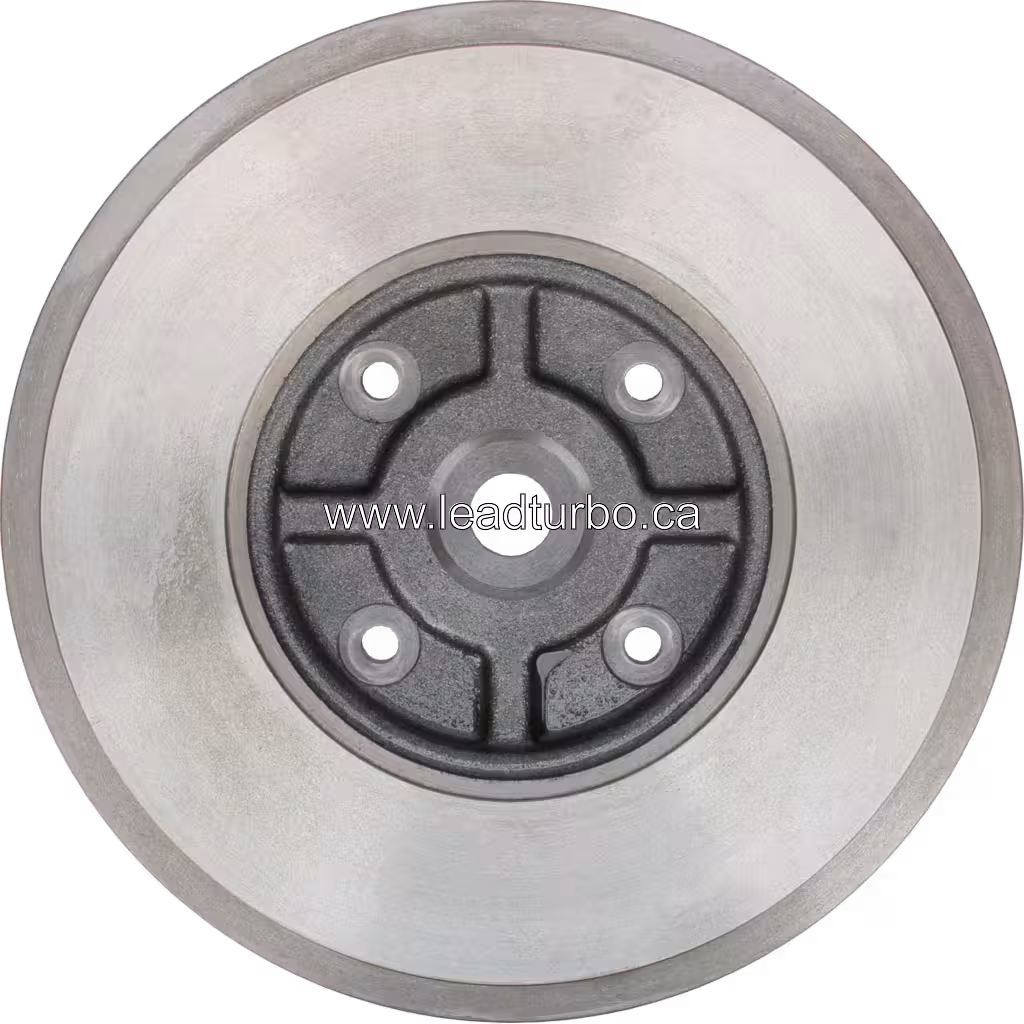

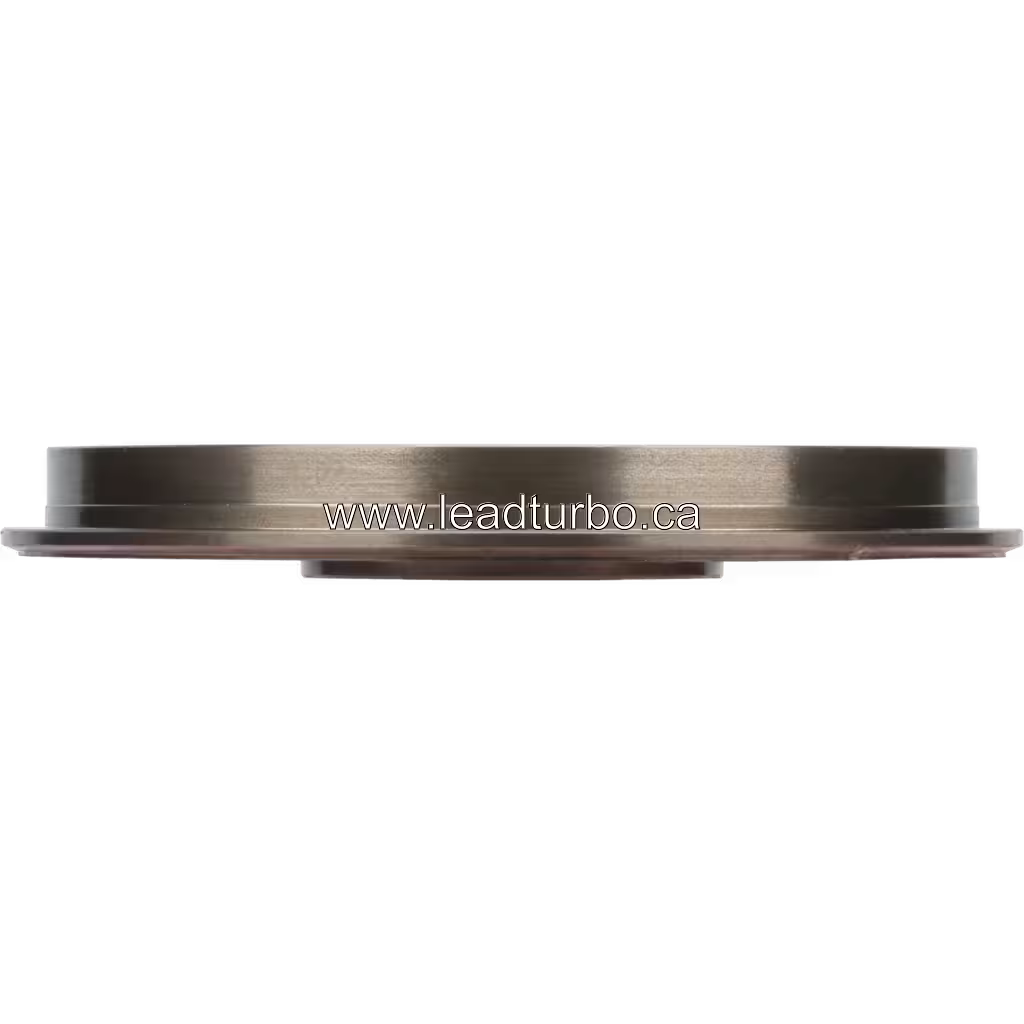

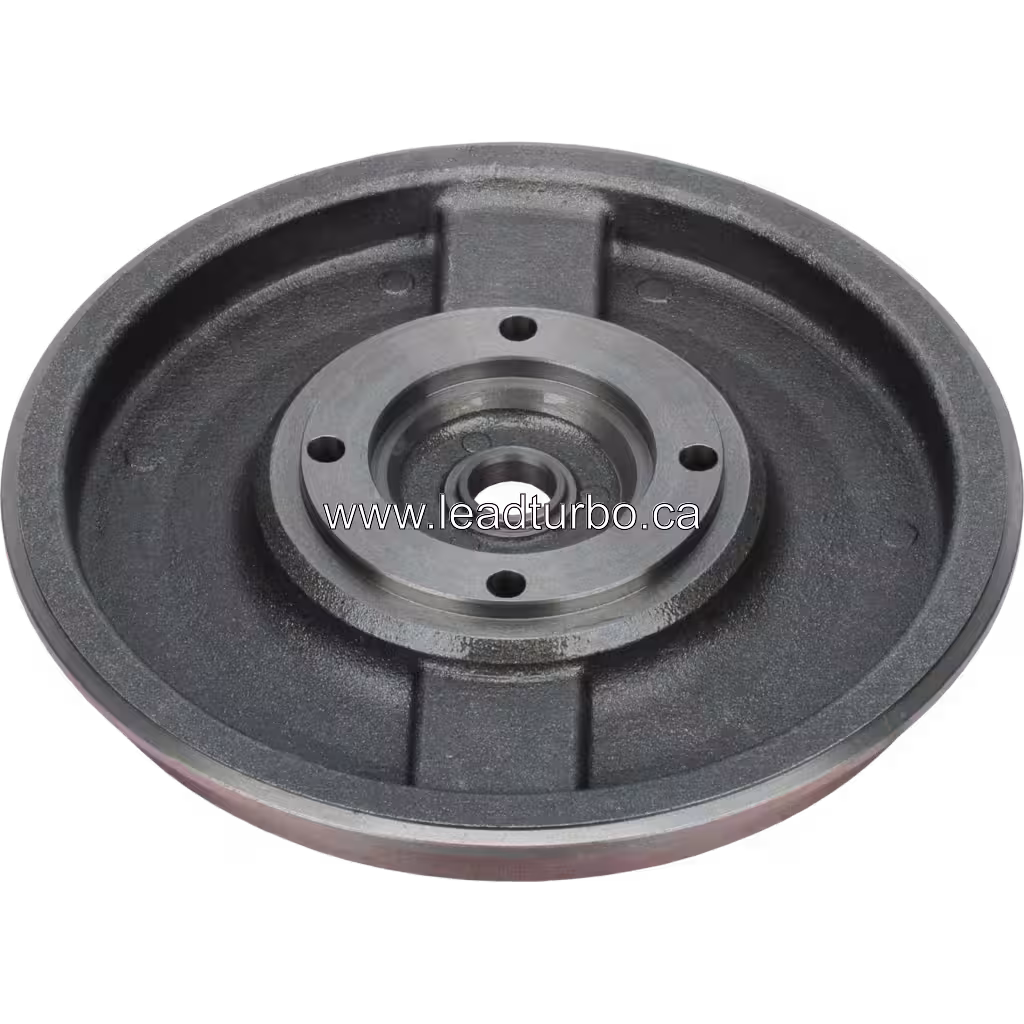

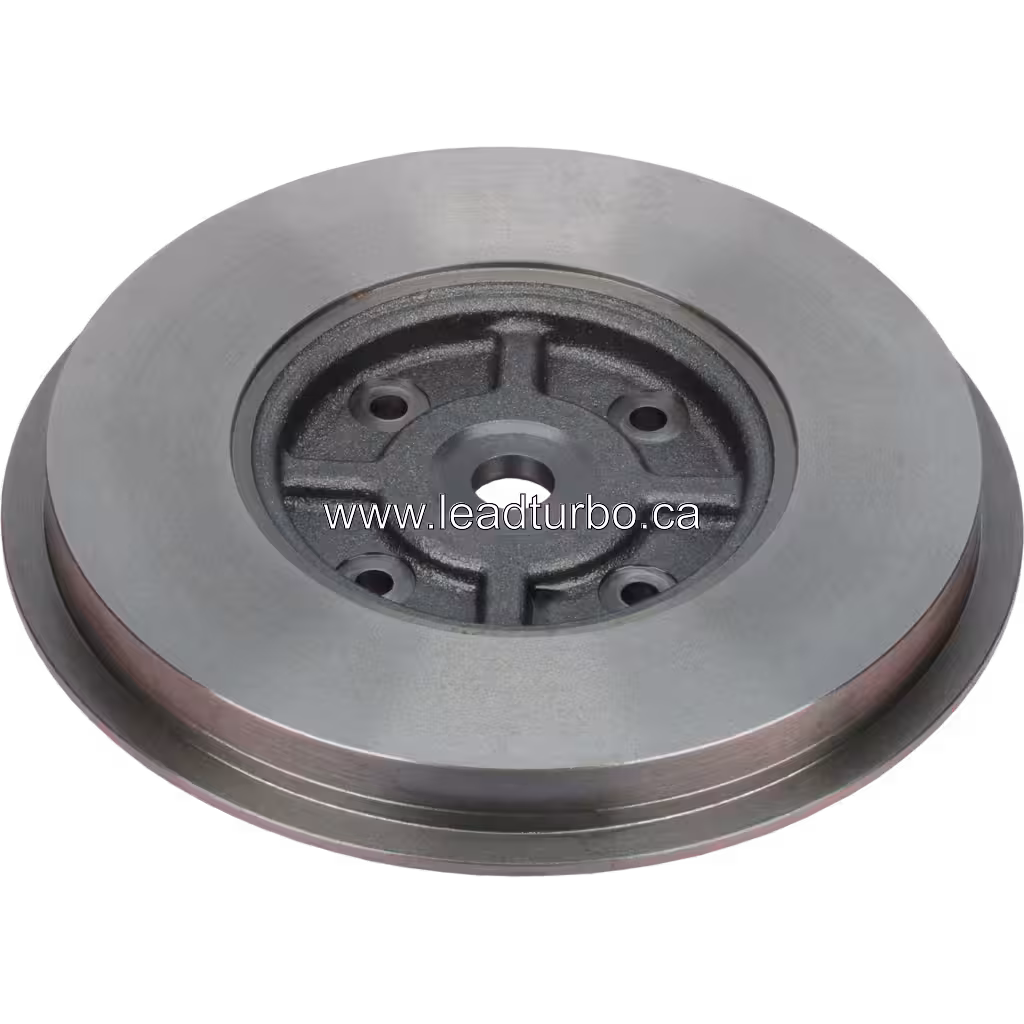

The HC5A back plate features a cast construction with a machined front face and internal reinforcing ribs visible on the reverse side. The central hub includes a large bore and a four-hole mounting pattern arranged in a cross configuration, while the outer rim displays a visible groove. These structural elements support the turbocharger assembly's operational stability. Buyers should verify the physical dimensions and mounting pattern against their specific HC5A turbo configuration. Cross-reference the visible features with service manuals for Cummins KTA38 engines to confirm the correct replacement application before ordering.
B2B Supply
LeadTurbo supports B2B buyers with volume pricing and worldwide shipping for FOR 3523850 BP back plates. Technical fitment support is available to help verify the HC5A turbo configuration and Cummins KTA38 engine application before ordering. For bulk inquiries, specify the required quantity and OEM reference numbers, such as 3520782-CAST-2 or 3524862, to streamline the verification process. Each unit ships in a 34*36*2 bubble bag with a gross weight of 3 kg, ensuring secure transit for international delivery. Confirm your specific part number and engine code to ensure the correct replacement application for your Komatsu PC3000 or PC4000 equipment.
Product FAQ
PC3000; PC4000 and other product, brand and model names are the property of their respective owners and are used for reference and application-lookup only. LeadTurbo is not affiliated with or endorsed by PC3000; PC4000.
Compatibility Verify part number FOR 3523850 BP, engine code (e.g., Cummins KTA38), vehicle application (Komatsu PC3000/PC4000), and OEM reference numbers such as 3520782-CAST-2 or 3524862 before ordering. This is an aftermarket replacement application; confirm fitment against your specific turbo configuration.
Customer Reviews
Share installation notes, fitment feedback, or service experience for this product.
No customer reviews have been added for this product yet.
