3524863 Turbocharger Back Plate for Cummins KTTA19
Aftermarket 3524863 back plate for Cummins KTTA19 turbochargers. Reference application includes BelAZ 7555, ONAN gensets, and Sumitomo cranes. Verify part number and OEM references before ordering.
Show more cross references
3520782-CAST-3 3545511 BP 3545703 BP 4027083 BP FOR 3044473 BP FOR 3524664 BP FOR 3524665 BP FOR 3524668 BP FOR 3524669 BP FOR 3528222 BP FOR 3528223 BP FOR 3528224 BP FOR 3528613 BP FOR 3528614 BP FOR 3531981 BP FOR 3531982 BP FOR 3594062 BP FOR 3594063 BP FOR 3594066 BP FOR 3594067 BP FOR 3594101 BP FOR 3594102 BP FOR 3594103 BP FOR 3594109 BP FOR 3594110 BP FOR 3594124 BP FOR 3594125 BP FOR 3801530 BP FOR 3801724 BP FOR 3801803 BP FOR 3801845 BP FOR 3803589 BP FOR 3803590 BP FOR 4033458 BP FOR 4033463 BP FOR 4033466 BPSubtotal: CA$ 76
Send an InquiryThis aftermarket 3524863 turbocharger back plate is a replacement component for Cummins KTTA19 engines. It serves as a reference application for heavy-duty vehicles such as the BelAZ 7555 and industrial gensets, with fitment to be verified against specific OEM reference numbers before ordering.
Key Specifications
- Part Number: 3524863
- Product Type: Turbocharger Back Plate
- Engine Application: Cummins KTTA19
- Packing: 34*36*3 bubble bag
- Gross Weight: 5 kg
- OEM Reference Numbers: 36 supplied, including 3520782-CAST-3, 3545511 BP, and 3545703 BP

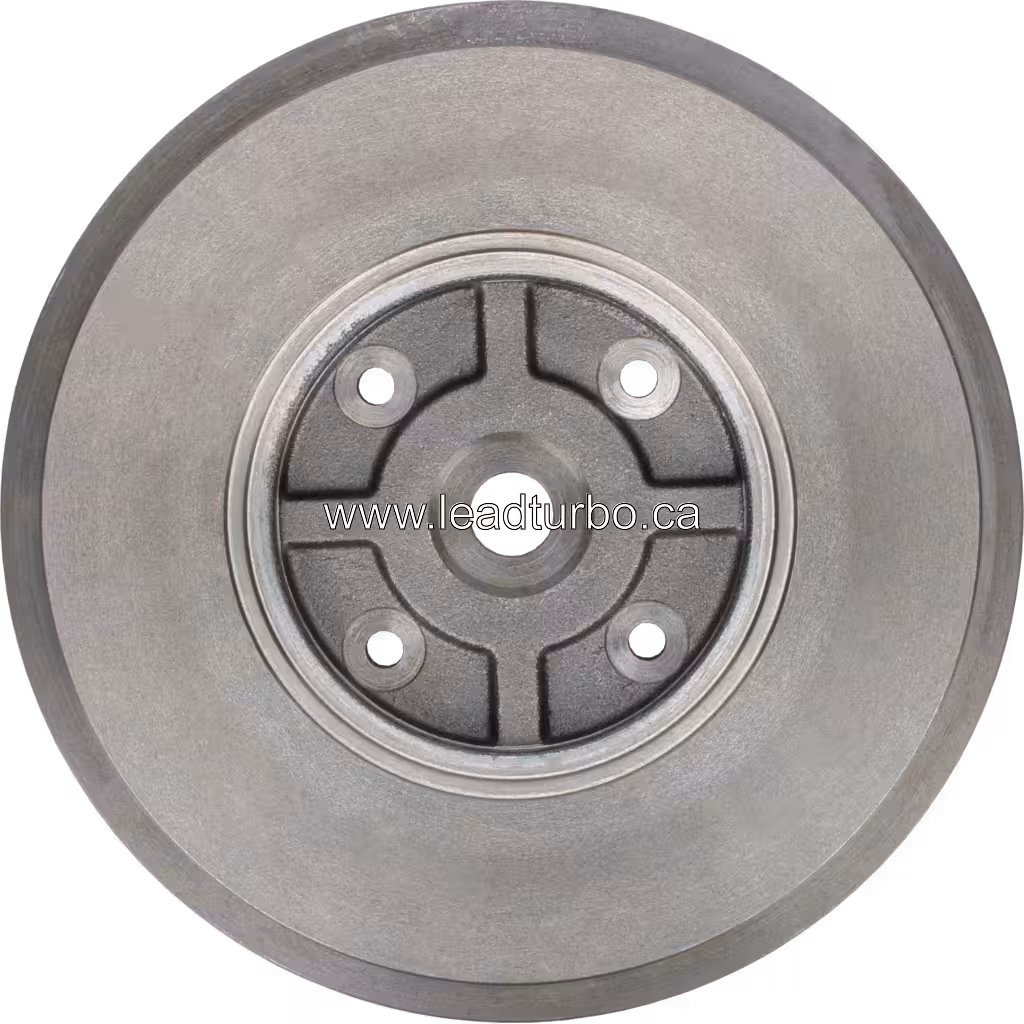

This back plate is a machined metal component with a central hub and four bolt holes. The visible surface finish is metallic grey with a polished outer rim. Buyers should verify the specific turbo configuration and OEM reference numbers against their Cummins KTTA19 engine before ordering.
Application & Compatibility
Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:
- BelAZ > BelAZ 7555 > Cummins KTTA19
- ONAN > 400 DFFA > 450 DFFA > 450 DFFA Genset > CUMMINS KTTA19
- ONAN > 450 DFFB > 500 DFFB > 500 DFFB Genset > CUMMINS KTTA19
- SUMITOMO > SCX5000 (formerly CT10000) > SCX5000 (formerly CT10000) Crawler crane > CUMMINS KTTA19
- SUMITOMO > SCX6500 (formerly CT12000) > SCX6500 (formerly CT12000) Crawler crane > CUMMINS KTTA19
- SUMITOMO > SCX8000 (formerly CT15000) > SCX8000 (formerly CT15000) Crawler crane > CUMMINS KTTA19
- Sandvik > DE820 > DE820 Multipurpose drill rig > CUMMINS KTTA19
This back plate is listed for Cummins KTTA19 engine applications, including heavy-duty and industrial equipment. Reference applications include:
- BelAZ 7555
- ONAN 400 DFFA, 450 DFFA, and 450 DFFA Genset
- ONAN 450 DFFB, 500 DFFB, and 500 DFFB Genset
- Sumitomo SCX5000, SCX6500, and SCX8000 crawler cranes
- Sandvik DE820 multipurpose drill rig
These paths serve as verification clues. Buyers should confirm the specific vehicle model, production year, and turbo configuration. Cross-check the 36 supplied OEM reference numbers, such as 3520782-CAST-3 and 3545511 BP, against your existing part to ensure the correct replacement application. Verify all details before ordering.
Technical Notes

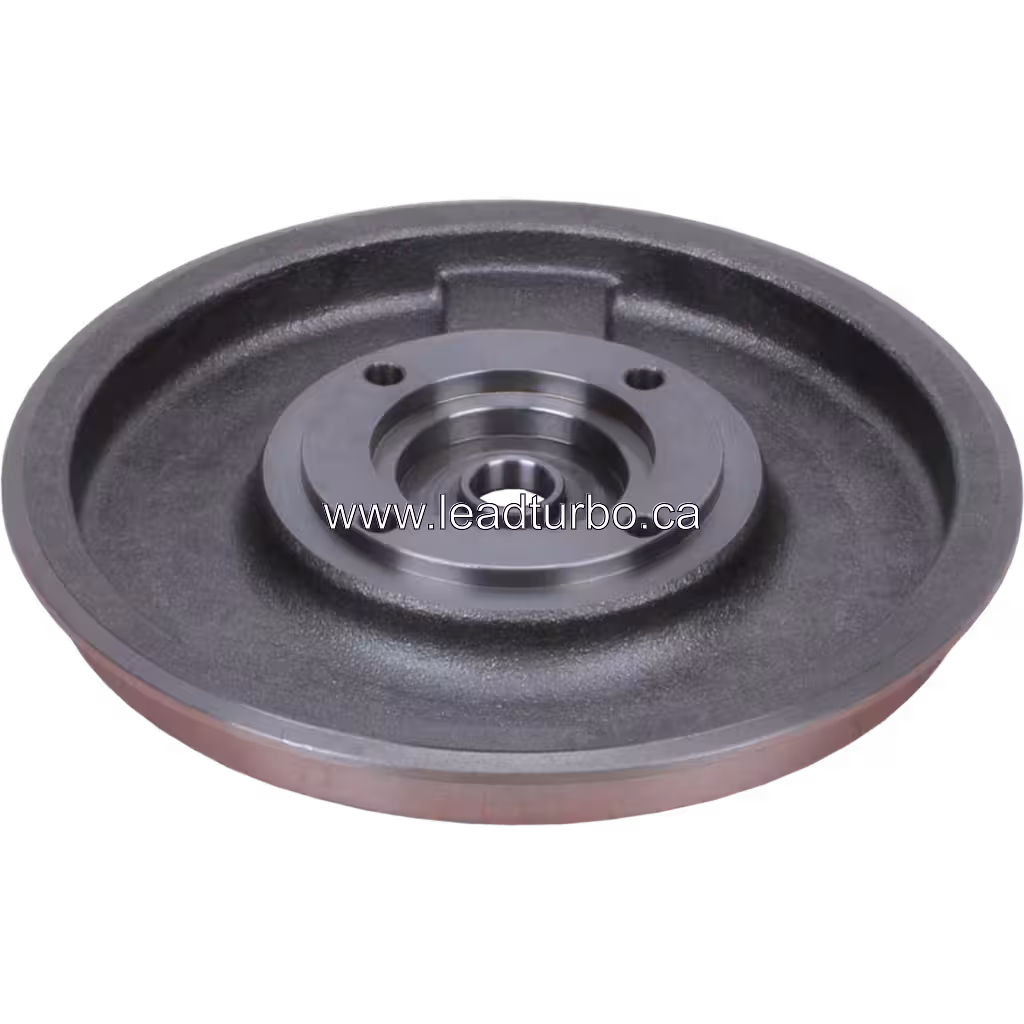

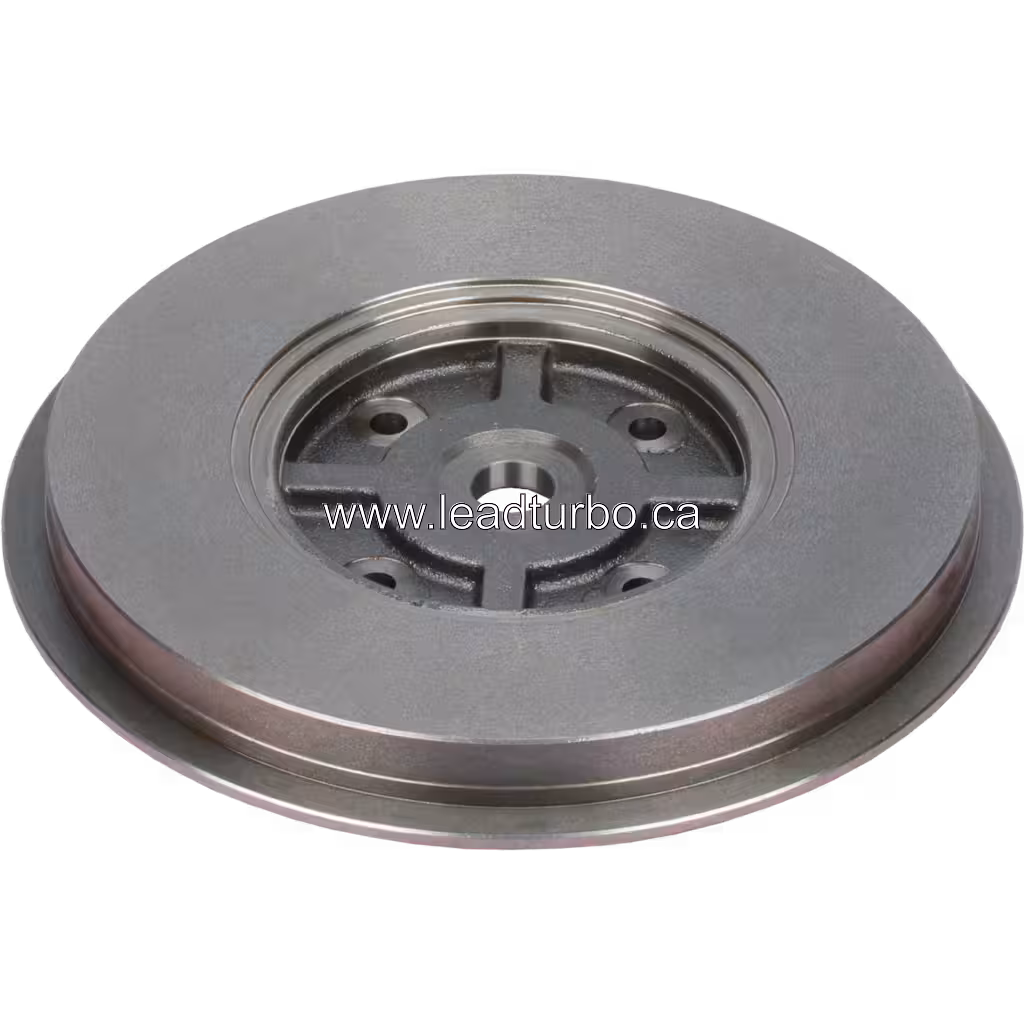

The 3524863 back plate is a machined metal component designed for Cummins KTTA19 turbocharger assemblies. Visible features include a central raised hub with a machined bore and four bolt holes arranged in a cross pattern. The outer rim is wide and flat with a polished edge, while the bottom view reveals a recessed central area with a cast or textured appearance. The surface finish is metallic grey. Buyers should verify the specific turbo configuration and OEM reference numbers against their Cummins KTTA19 engine before ordering to ensure the correct replacement application.
B2B Supply
LeadTurbo supports B2B buyers with volume pricing and worldwide shipping for the 3524863 back plate. Technical fitment support is available to help verify the 36 supplied OEM reference numbers, including 3520782-CAST-3 and 3545511 BP, against your specific Cummins KTTA19 configuration. Each unit ships in a 34*36*3 bubble bag with a gross weight of 5 kg, suitable for warehouse storage and fleet parts management. Contact our team to confirm part number, engine code, and vehicle application before placing an order.
Product FAQ
BelAZ 7555 and other product, brand and model names are the property of their respective owners and are used for reference and application-lookup only. LeadTurbo is not affiliated with or endorsed by BelAZ 7555.
Compatibility Verify part number 3524863, engine code Cummins KTTA19, and vehicle application such as BelAZ 7555 or ONAN gensets. Cross-check OEM reference numbers like 3520782-CAST-3 and 3545511 BP against your specific turbo configuration before ordering.
