3593686 HX50 Turbocharger Compressor Wheel for Cummins M11

This aftermarket 3593686 HX50 compressor wheel is a replacement component for Cummins M11 and Caterpillar 972G applications. It serves as an aftermarket replacement part for heavy-duty engine turbocharger systems, supporting repair shops and fleet maintenance teams with verified fitment data.

Key Specifications

• Part Number: 3593686
• Product Type: Compressor Wheel
• Turbo Model: HX50
• Gross Weight: 0.5 kg
• Packing Dimensions: 11 x 11 x 7 cm
• Representative OEM References: 3580540 CW, 3580732 CW, 4027025 CW, 4027094 CW
• Application Clues: Cummins M11, Caterpillar 972G

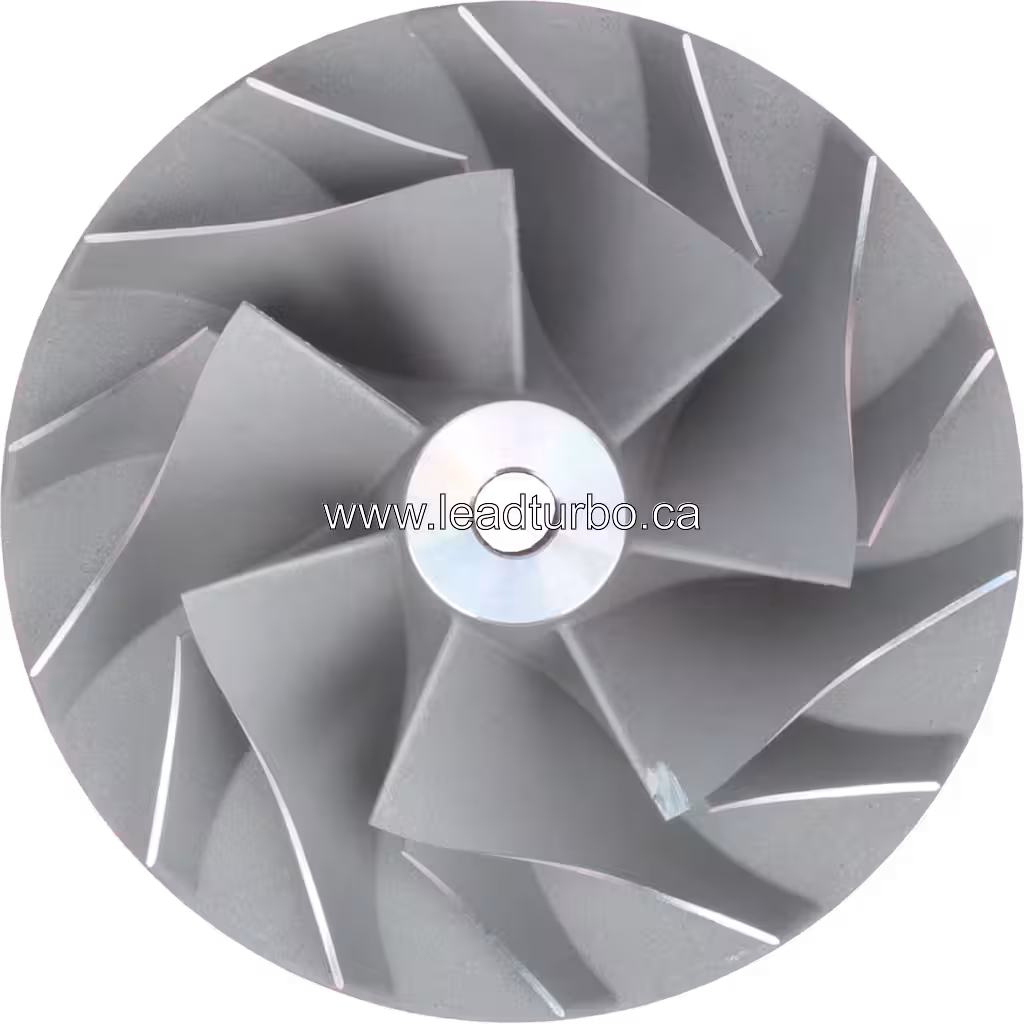

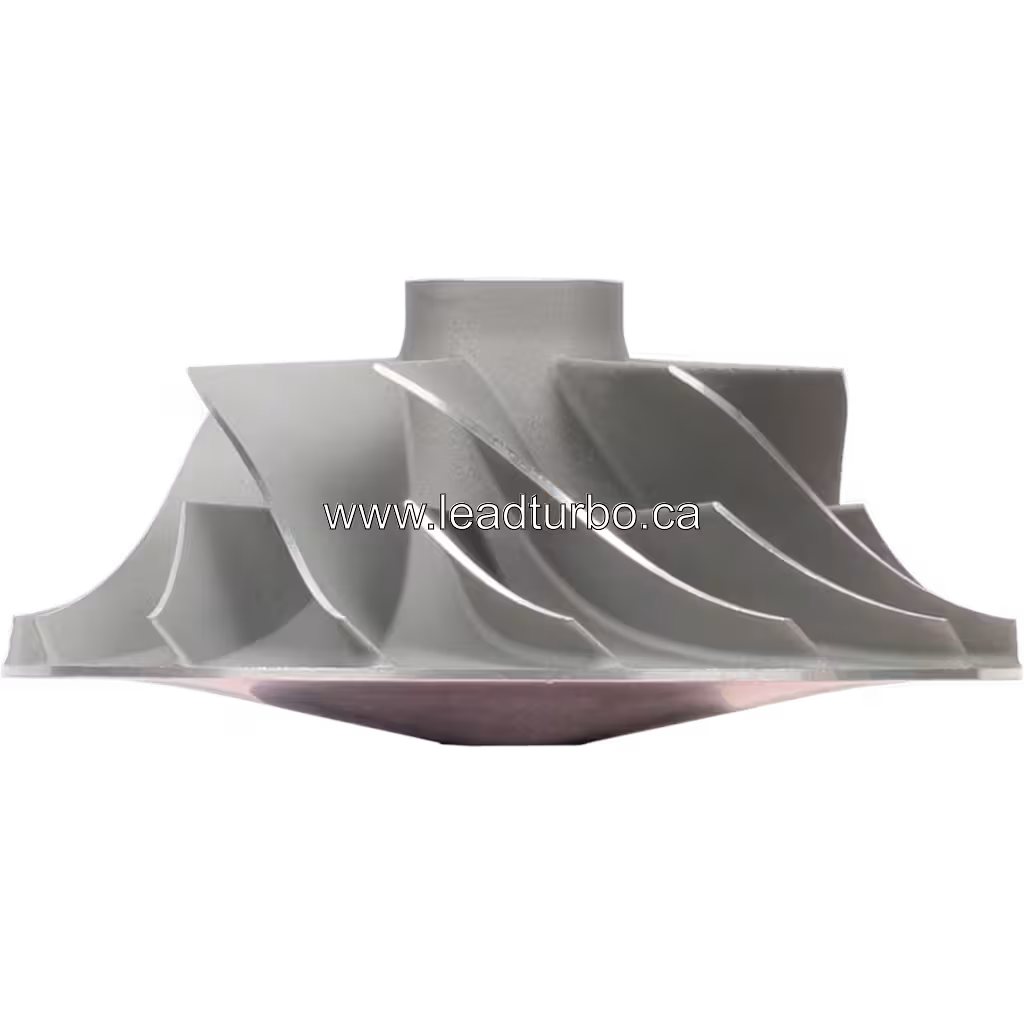

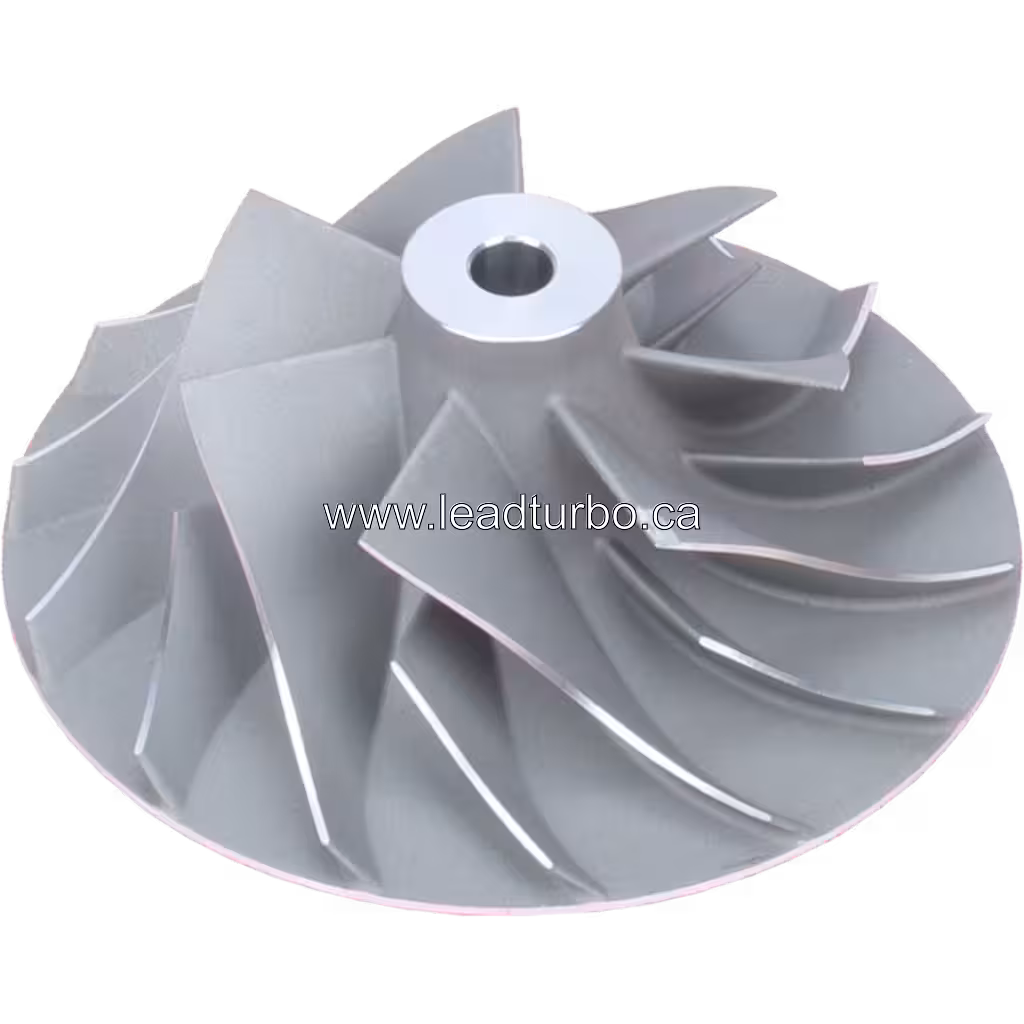

• Visual Features: Radial blade design with swept-back vanes, central cylindrical hub, and flat circular backplate
• Finish: Metallic grey with smooth, machined surface texture

Verify the specific blade geometry and hub bore dimensions against your existing component before ordering. This wheel is listed for heavy-duty engine applications; confirm your engine code and turbo configuration to ensure the correct replacement part is selected.

Application & Compatibility

Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:

• Caterpillar > Caterpillar 972 > Caterpillar 972G > Cummins M11
• Bomag > CUMMINS M11
• DEUTZ > VOLVO > VOLVO D12 435-465 HP
• Freightliner > 1995 Freightliner > Cummins M11
• HYUNDAI > HL780-9 > HL780-9 Wheel loader > CUMMINS M11 > ISM11 > QSM11
• HYUNDAI > Hyundai HL770 > Hyundai HL770-7 > Cummins QSM11
• Hyster > HR45-25, HR45-31, HR45-40S, HR45-36L, HR45-40LS > HR45-25, HR45-31, HR45-40S, HR45-36L, HR45-40LS Container Handler > Reach Stacker > CUMMINS M11-290
• IVECO > IVECO AGRICULTURAL > IVECO CURSOR 10
• Leyland > Tiger (B43) > Tiger (B43) Bus > Coach > CUMMINS L10
• MACK > D12
• MAN > MAN TRUCK > MAN D2866LF
• MERCEDES-BENZ > MERCEDES-BENZ ACTROS TRUCK > BENZ OM501LA
• SCANIA > DC1201
• SCANIA > DSC12-01
• SCANIA > DSC12-03 > -01
• SCANIA > DSC12

This HX50 compressor wheel is listed for heavy-duty engine applications, including Cummins M11 and Caterpillar 972G. It is also associated with reference applications for Volvo D12, Scania DC12, and Hyundai HL780-9. Buyers should verify the specific engine code, vehicle model, and turbo configuration against the supplied OEM reference numbers, such as 3580540 CW or 4027025 CW, before ordering. This is an aftermarket replacement application; confirm fitment with your specific service manual or technical data to ensure the correct wheel geometry and hub bore dimensions are selected for your repair.

Technical Notes

The HX50 compressor wheel features a radial blade design with swept-back vanes, a central cylindrical hub, and a flat circular backplate. The metallic grey finish indicates a machined surface suitable for heavy-duty turbocharger applications. Buyers should verify the hub bore dimensions and blade geometry against their specific turbocharger configuration. Confirm the thread direction and tightening torque for the compressor wheel nut using the applicable service manual. Check shaft end play and radial play tolerances with a dial indicator to ensure stable operation. Inspect the wastegate flapper valve seating for free movement and proper alignment to prevent airflow restriction.

B2B Supply

LeadTurbo supports B2B buyers with volume pricing and worldwide shipping for the 3593686 HX50 compressor wheel. Technical fitment support is available to help verify engine codes, such as Cummins M11, and OEM reference numbers like 3580540 CW before ordering. This service assists repair shops and distributors in confirming the correct wheel geometry and hub bore dimensions for their specific turbocharger configuration. Inquire about bulk order terms and pre-shipment inspection options to ensure the replacement part matches your service manual requirements.
