4047291 BP HX83 Turbocharger Back Plate for Cummins QSK60
Aftermarket HX83 back plate, part FOR 4047291 BP, for Cummins QSK60/QST30 applications. Verify OEM references and engine fitment before ordering.
Show more cross references
4041997 4042815 BP FOR 3784397 BP FOR 3784746 BP FOR 3784747 BP FOR 3784835 BP FOR 3784836 BP FOR 3785583 BP FOR 3786522 BP FOR 3787166 BP FOR 3789963 BP FOR 3789964 BP FOR 3789965 BP FOR 3793677 BP FOR 4033866 BP FOR 4041787 BP FOR 4041788 BP FOR 4041789 BP FOR 4049902 BP FOR 4049903 BP FOR 4049904 BP FOR 4309430 BP FOR 4309438 BP FOR 4352285 BP FOR 4352309 BP FOR 4955686 BPSubtotal: CA$ 167
Send an InquiryThis aftermarket FOR 4047291 BP back plate is a replacement component for HX83 turbochargers, designed for Cummins QSK60 and QST30 engines in Komatsu 830E and BelAZ mining trucks. Verify OEM reference numbers and engine fitment before ordering.
Key Specifications
- Part Number: FOR 4047291 BP
- Product Type: Turbocharger Back Plate
- Turbo Model: HX83
- Gross Weight: 6.8 kg
- Packing: 34*36*4 bubble bag
- Representative OEM References: 4041997, 4042815 BP, 3784397 BP
- Image Availability: High-resolution studio photography showing machined surfaces, central bore, and mounting holes
Verify these specifications against your existing component to ensure the back plate matches your specific HX83 turbocharger configuration.
Application & Compatibility
Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:
- KOMATSU > 830E series > 830E series Mining haul truck > CUMMINS QSK60 2500HP
- BelAZ > Belaz Mining Truck > Belaz mining dump truck > Cummins QST30
- KOMATSU > Komatsu 830E > Cummins QSK60
This back plate is listed for reference applications including Komatsu 830E mining haul trucks with Cummins QSK60 engines and BelAZ mining dump trucks with Cummins QST30 engines. These application paths serve as verification clues; confirm your specific vehicle model, engine code, and turbocharger configuration before ordering. The part is associated with 26 OEM reference numbers, including 4041997, 4042815 BP, and 3784397 BP. Use these numbers to cross-check against your existing component or service manual. Because HX83 turbochargers may vary by specific engine setup details, verify that the central bore, mounting hole pattern, and concentric grooves match your current part. Technical fitment support is available to help confirm the correct reference application for your fleet or rebuild project.
Technical Notes

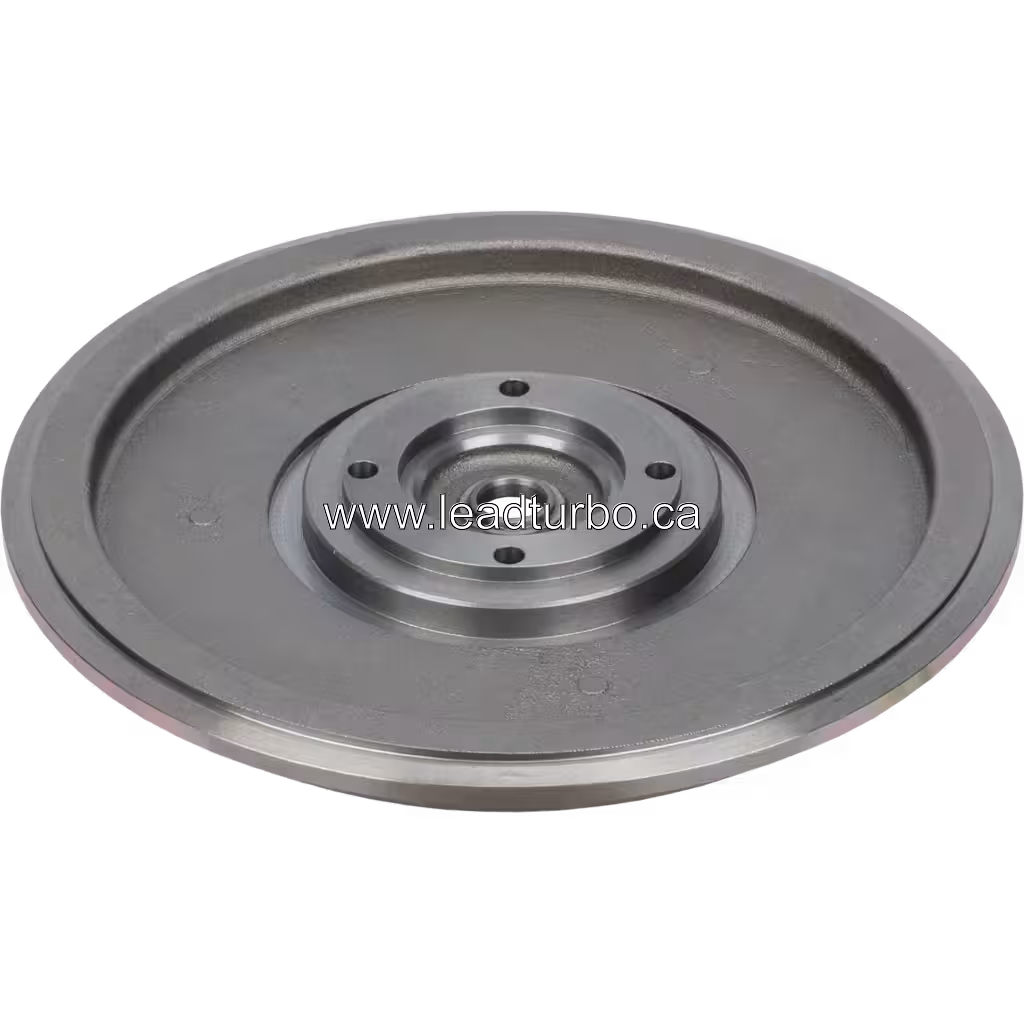

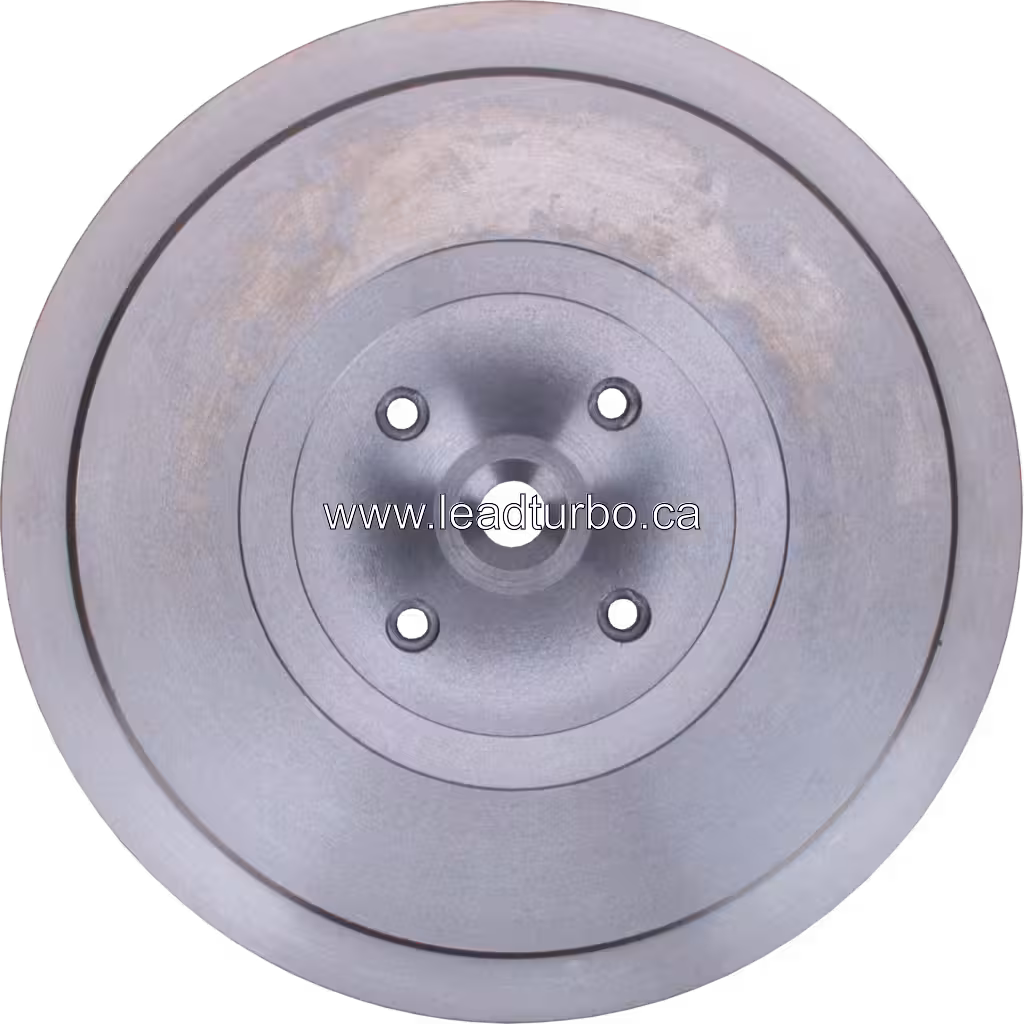

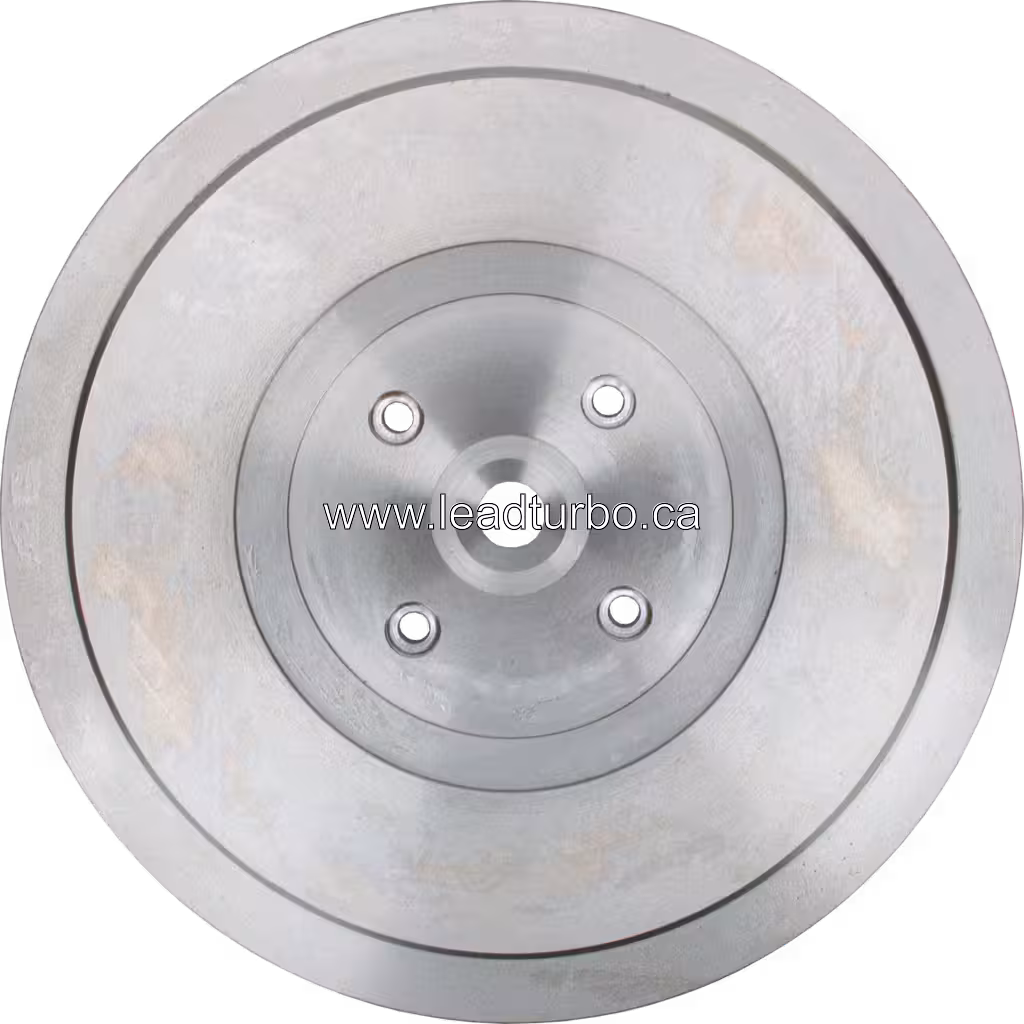

The HX83 turbocharger back plate features a circular, flat metal disc with a machined finish, central bore, and four symmetric mounting holes. Visible concentric grooves and a polished outer rim aid in visual identification during rebuild inspections. Slight heat tint may appear on the outer surface; verify this against your existing component to ensure the part matches your specific HX83 configuration. Do not infer material grade or exact dimensions from visual appearance alone. Cross-check the central bore and mounting hole pattern against your service manual or existing part before installation. Technical fitment support is available to confirm these details for your Cummins QSK60 or QST30 application.
B2B Supply
LeadTurbo supports B2B buyers, repair shops, and fleet parts distributors with volume pricing for the FOR 4047291 BP HX83 back plate. Worldwide shipping is available for orders of this 6.8 kg component, packed in a 34*36*4 bubble bag. Technical fitment support is provided to verify OEM reference numbers, engine codes, and vehicle applications before shipment. Contact our team to confirm the correct reference application for your Cummins QSK60 or QST30 fleet.
Product FAQ
830E series and other product, brand and model names are the property of their respective owners and are used for reference and application-lookup only. LeadTurbo is not affiliated with or endorsed by 830E series.
Compatibility Verify part number, engine code (QSK60/QST30), vehicle application (Komatsu 830E/BelAZ), and OEM reference numbers before ordering. This is an aftermarket replacement application; confirm fitment with your specific turbo configuration.
Customer Reviews
Share installation notes, fitment feedback, or service experience for this product.
No customer reviews have been added for this product yet.
