49174-09200 TD08-22D 28 Turbocharger Core for Mitsubishi 6D22T

This aftermarket replacement core, part number 49174-09200, is a TD08-22D 28 turbocharger CHRA designed for Mitsubishi 6D22T engines. It serves as a reference application for KATO SK16-N2 excavators, allowing buyers to verify fitment against their specific unit before ordering.

Key Specifications

• Part Number: 49174-09200
• Product Type: Turbocharger Core (CHRA)
• Turbo Model: TD08-22D 28
• Packing Dimensions: 24 x 23 x 28 cm
• Gross Weight: 5 kg
• Representative OEM References: 49174-00560, 49174-00565, ME050579

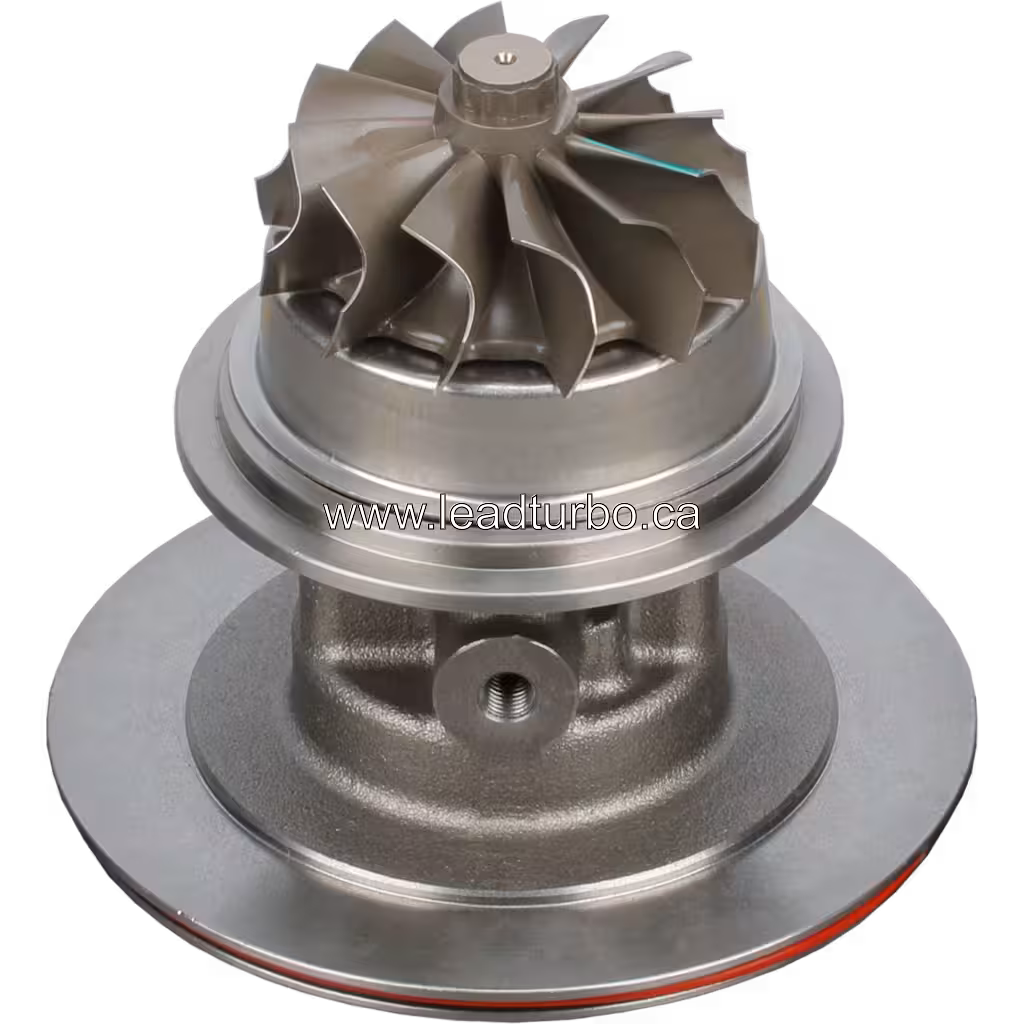

This core assembly includes the turbine wheel, compressor wheel, and central shaft. The visible machined metal housing and threaded shaft fastener are standard for this CHRA configuration. Buyers should verify the specific wheel sizes and seal condition against their original unit to ensure correct replacement application.

Application & Compatibility

Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:

• KATO > KATO SK16-N2 > MITSUBISHI 6D22T
• KATO > KATO HD1250 > MITSUBISHI 6D22

This TD08-22D 28 core is listed for Mitsubishi 6D22T engines, with reference applications including KATO SK16-N2 and KATO HD1250 excavators. These application paths serve as verification clues for buyers identifying the correct replacement unit.

• Engine: Mitsubishi 6D22T / 6D22
• Vehicle/Equipment: KATO SK16-N2, KATO HD1250
• OEM Reference Numbers: 49174-00560, 49174-00565, ME050579

Buyers should cross-check these OEM reference numbers and engine codes against their specific turbocharger assembly. Verify the part number 49174-09200 and physical dimensions of the original core before finalizing an order to ensure the correct replacement application.

Technical Notes

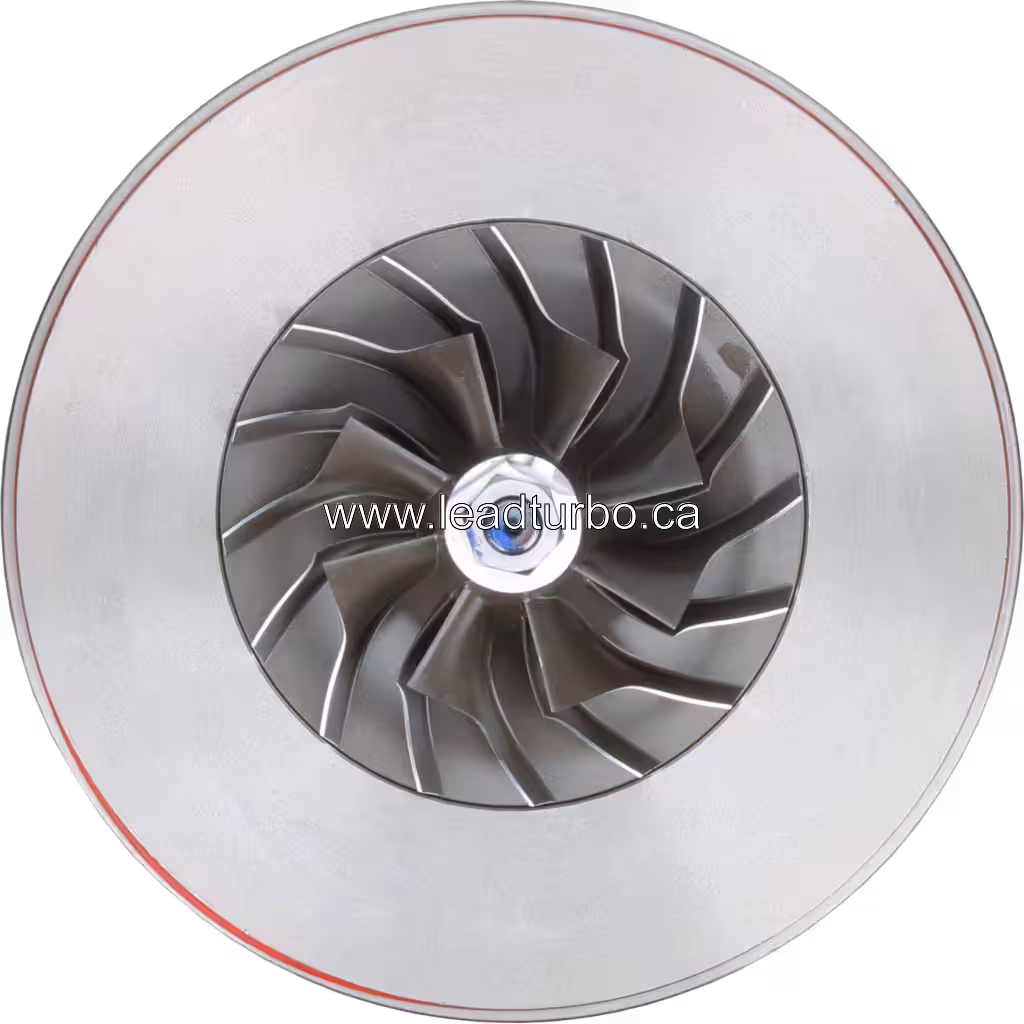

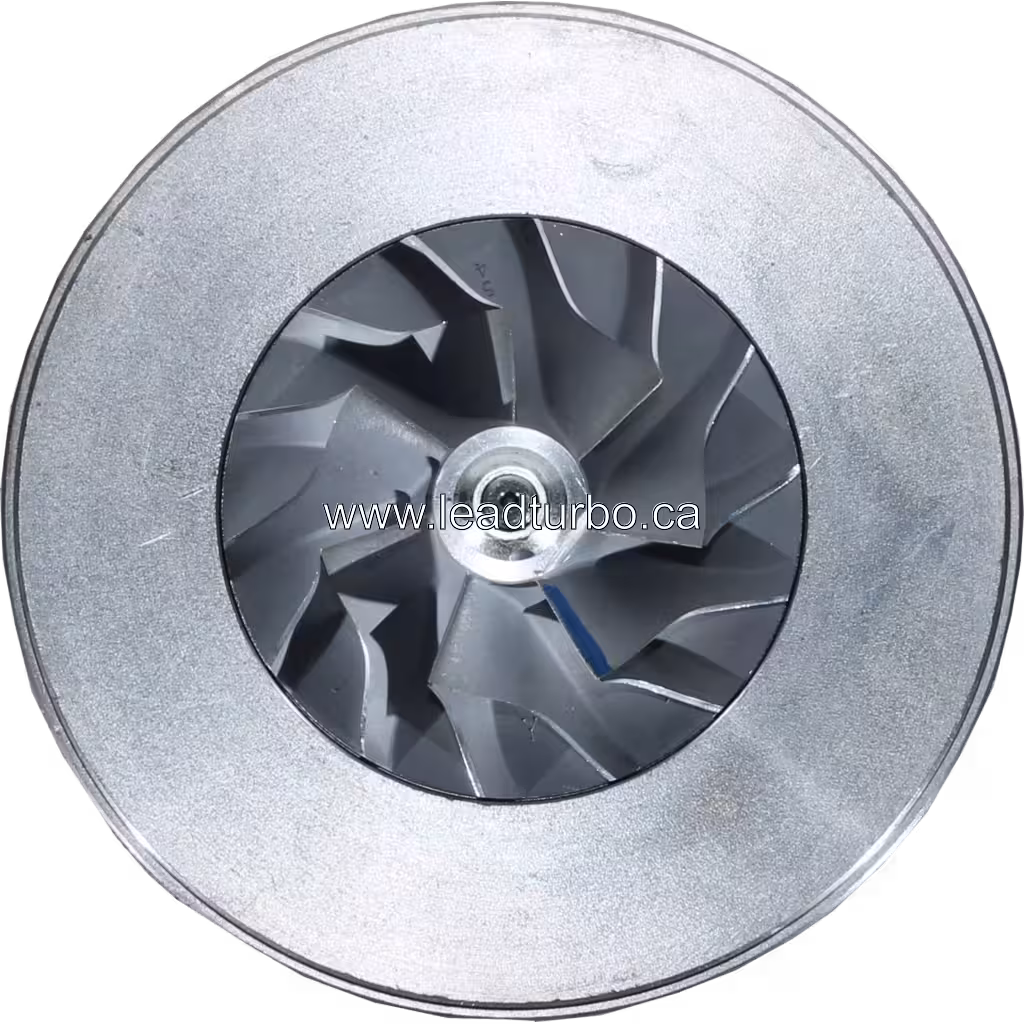

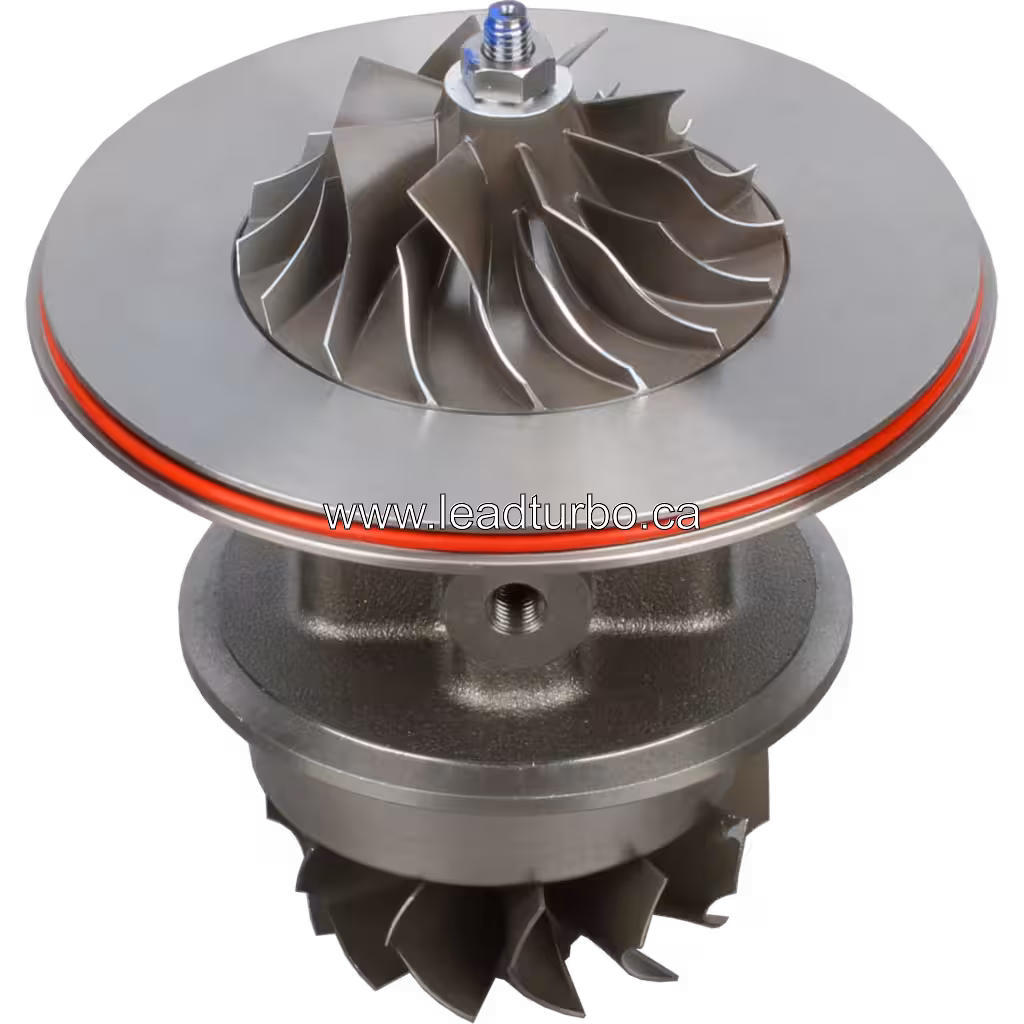

The TD08-22D 28 core features a central turbine wheel with curved blades and a matching compressor wheel, mounted on a threaded central shaft. Visible components include a machined metal housing with a cast texture and a red O-ring seal on the compressor housing rim. Buyers should inspect the inducer and exducer diameters of the compressor wheel against the original unit to confirm dimensional accuracy. Verify the condition of the shaft fastener and seal integrity during pre-shipment inspection. Technical fitment support is available to assist with verifying these specific component details before installation.

B2B Supply

LeadTurbo supports B2B buyers, repair shops, and distributors with volume pricing for the 49174-09200 TD08-22D 28 core. Worldwide shipping is available for orders of this aftermarket replacement CHRA. Technical fitment support is provided to help verify part numbers, OEM reference numbers, and engine applications before shipment. Contact our team to confirm specific requirements for KATO SK16-N2 or Mitsubishi 6D22T applications.
