49377-00220 TH Turbine Housing TD04-LR-16GK Turbocharger

This aftermarket turbine housing is a replacement component for the 49377-00220 TH part number, designed for TD04-LR-16GK turbochargers in Chrysler PT Cruiser Turbo GT and Dodge EDV 223HP applications. Verify your specific engine code and turbo configuration before ordering to ensure correct fitment.

Key Specifications

• Part Number: 49377-00220 TH
• Product Type: Turbine Housing
• Turbo Model: TD04-LR-16GK
• Gross Weight: 5 kg
• Packing: N/A
• Image Availability: High-resolution studio shots available

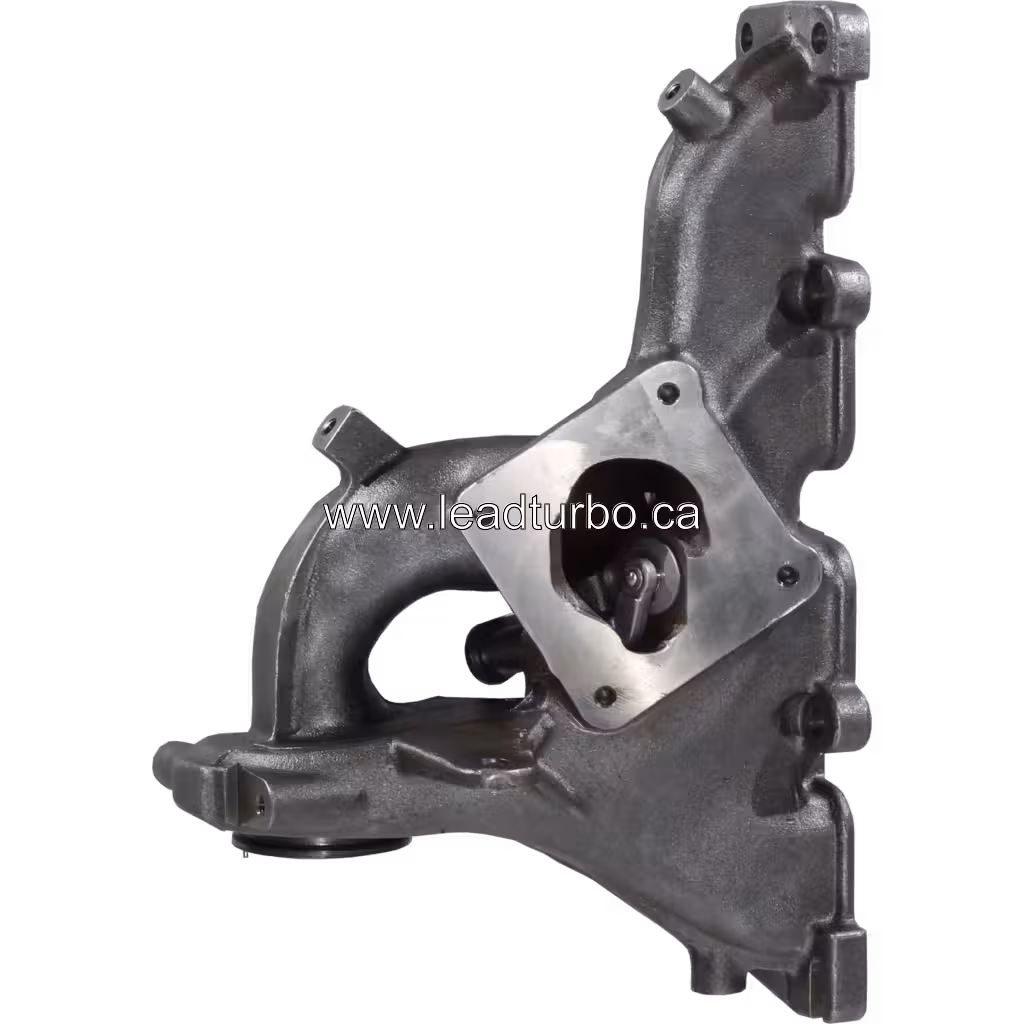

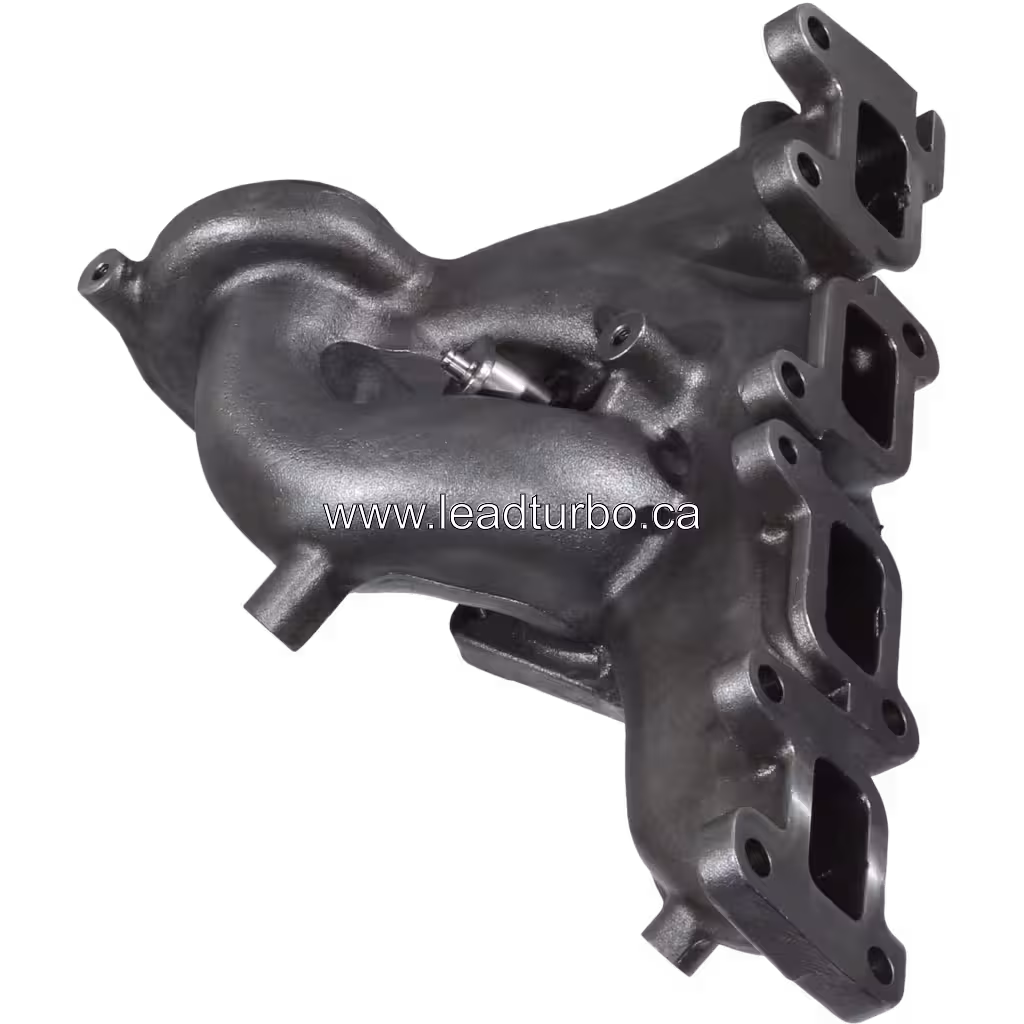

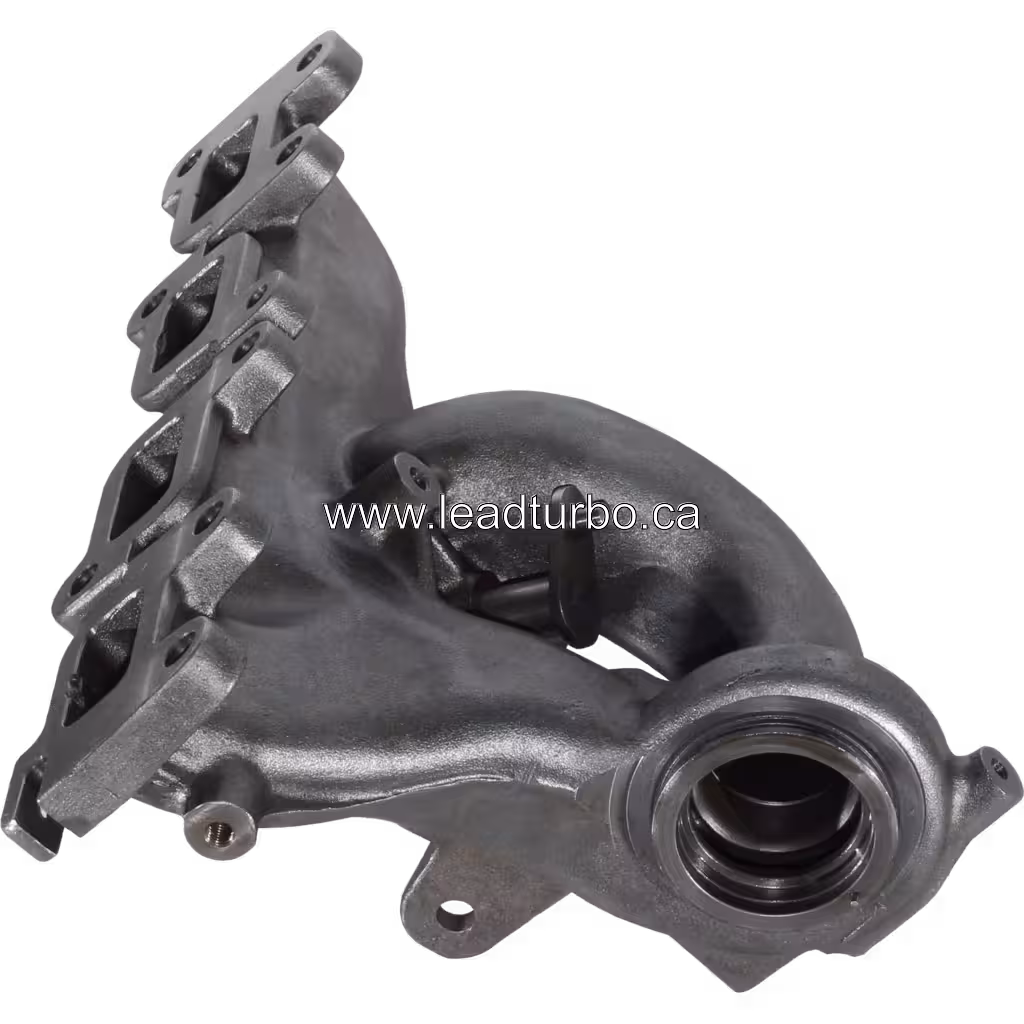

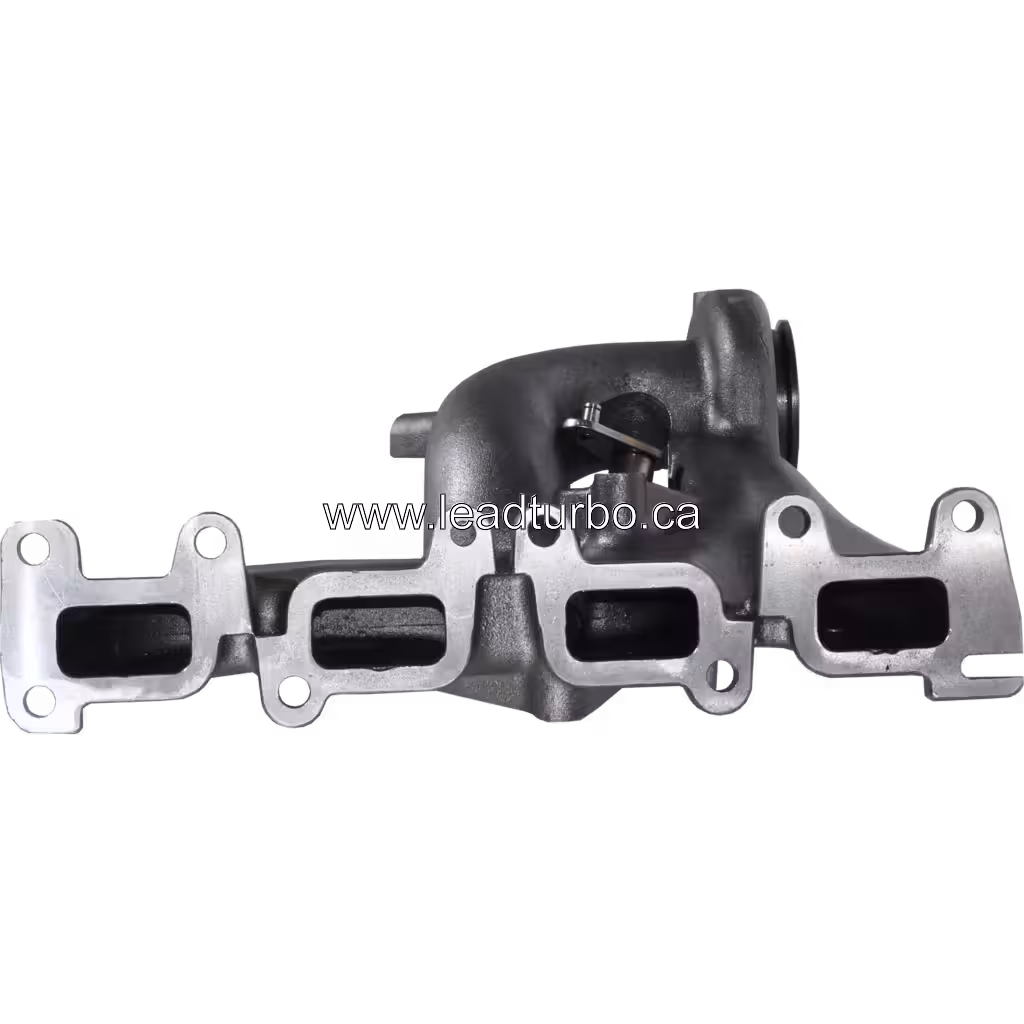

The housing features a dark grey cast metal body with a matte finish. Visible features include four exhaust inlet ports arranged on the flange, a rectangular exhaust flange with four bolt holes, and a central turbine inlet opening. An internal valve mechanism is visible through an opening in the housing, along with multiple threaded ports and mounting details. Buyers should cross-check these visible structural details against their existing unit to confirm alignment with the compressor side and exhaust manifold before placing an order.

Application & Compatibility

Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:

• CHRYSLER > CHRYSLER PT CRUISER TURBO GT > DODGE EDV 223HP

This turbine housing is listed for reference application in Chrysler PT Cruiser Turbo GT and Dodge EDV 223HP vehicles. The application path serves as a verification clue; buyers must confirm the specific engine code and turbo configuration before ordering. Cross-check the part number 49377-00220 TH against your existing unit to ensure the flange bolt pattern and inlet port configuration align with your exhaust manifold and compressor side. Technical fitment support is available to assist with these verification steps.

Technical Notes

The TD04-LR-16GK turbocharger series is associated with specific exhaust manifold configurations. For this turbine housing, verify the four-bolt rectangular flange pattern and the arrangement of four exhaust inlet ports against your existing unit. Confirm that the internal valve mechanism and threaded mounting details align with your compressor side and exhaust system. Cross-reference the part number 49377-00220 TH with your vehicle's engine code to ensure the housing dimensions and port geometry match your application. Technical fitment support is available to assist with these verification steps before ordering.

B2B Supply

LeadTurbo supports B2B buyers, repair shops, and distributors with volume pricing for the 49377-00220 TH turbine housing. Worldwide shipping is available for this TD04-LR-16GK replacement component. Our technical fitment support team assists with verifying flange patterns, inlet port configurations, and mounting details against your existing unit. Contact us to confirm part number 49377-00220 TH and engine application details before placing an order. This service helps ensure the correct replacement housing is selected for your specific Chrysler or Dodge application.
