3594085 HC5A Turbocharger Replacement for CUMMINS KTA38-C
Aftermarket 3594085 HC5A turbocharger for Terex TR100 Rigid Mining Dump Truck with CUMMINS KTA38-C engine. Verify part number, flange type, and OEM reference numbers before ordering.
Orders without stock ship approximately 60 days after ordering. Estimated ship date if ordered today: .
Show more cross references
3525504 3525505 3525506 3525507 3592523 3594086 3594087 3594088 3594089 3803015 4033461 503525504Subtotal: CA$ 810
Standard shipping for one packed item (CAD)
| Canada | CA$ 726.86 |
|---|
Orders without stock ship approximately 60 days after ordering. Estimated ship date if ordered today: .
Standard rates exclude duties, taxes and remote-area, residential or special-packaging charges. Sales confirms the total before payment.
Shipping zones and full policyThis aftermarket 3594085 HC5A turbocharger is a replacement unit for Terex TR100 Rigid Mining Dump Trucks equipped with CUMMINS KTA38-C engines. It serves as an aftermarket replacement application for units associated with OEM reference numbers such as 3525504 and 3594086, supporting fleet maintenance and repair operations.
Key Specifications

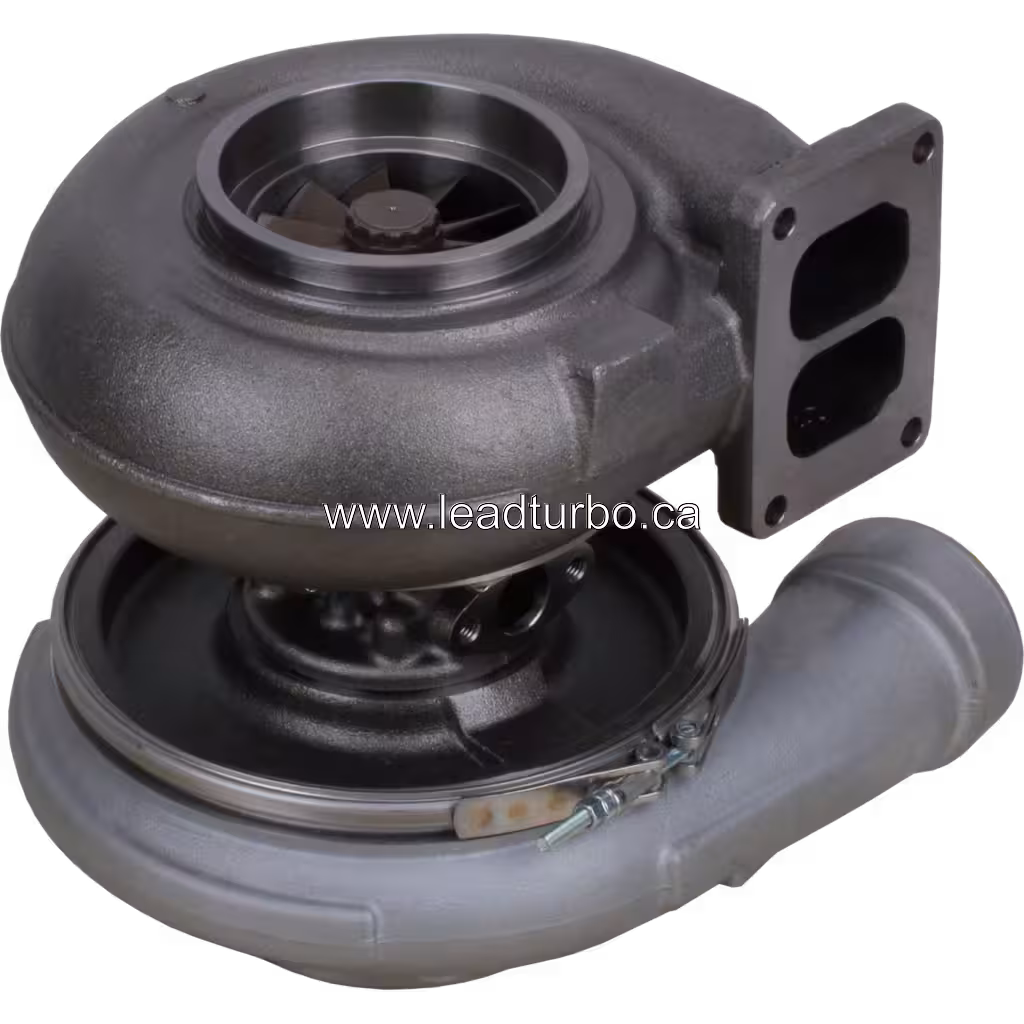

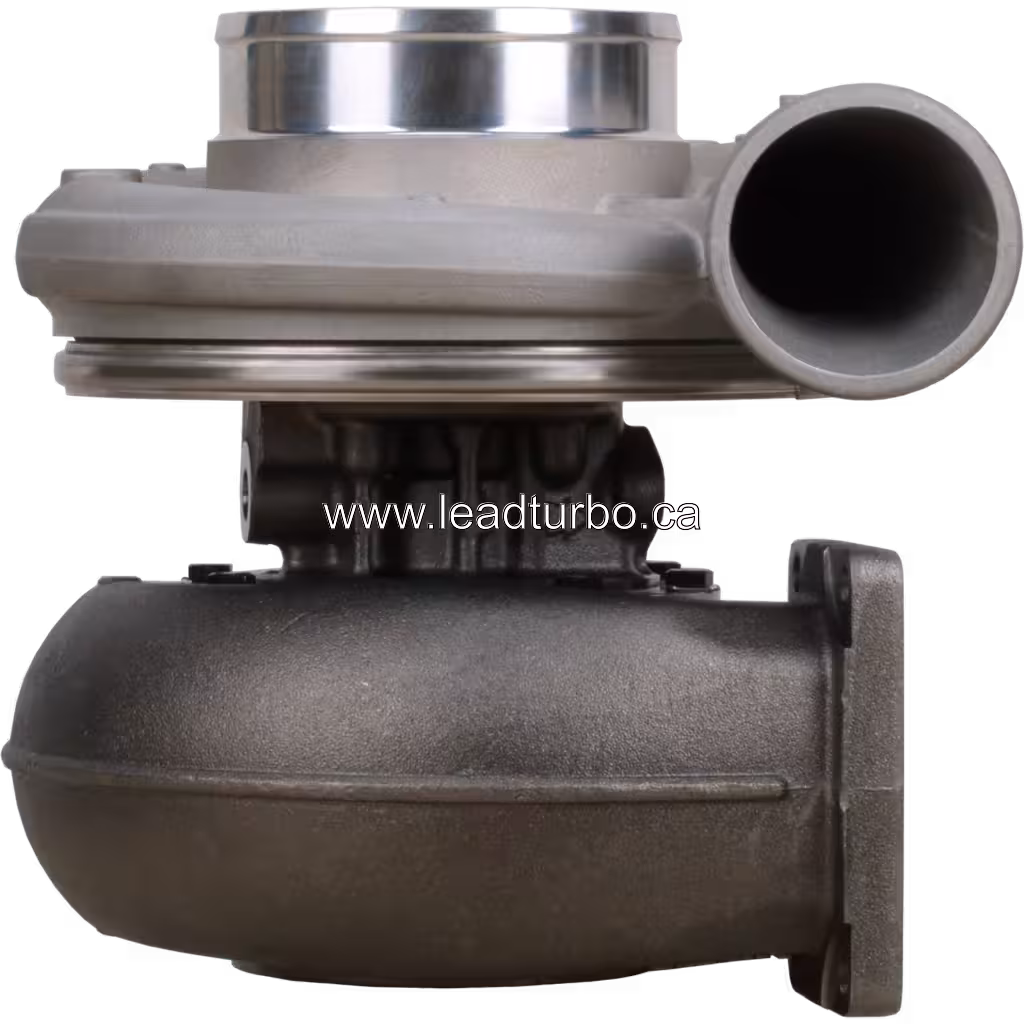

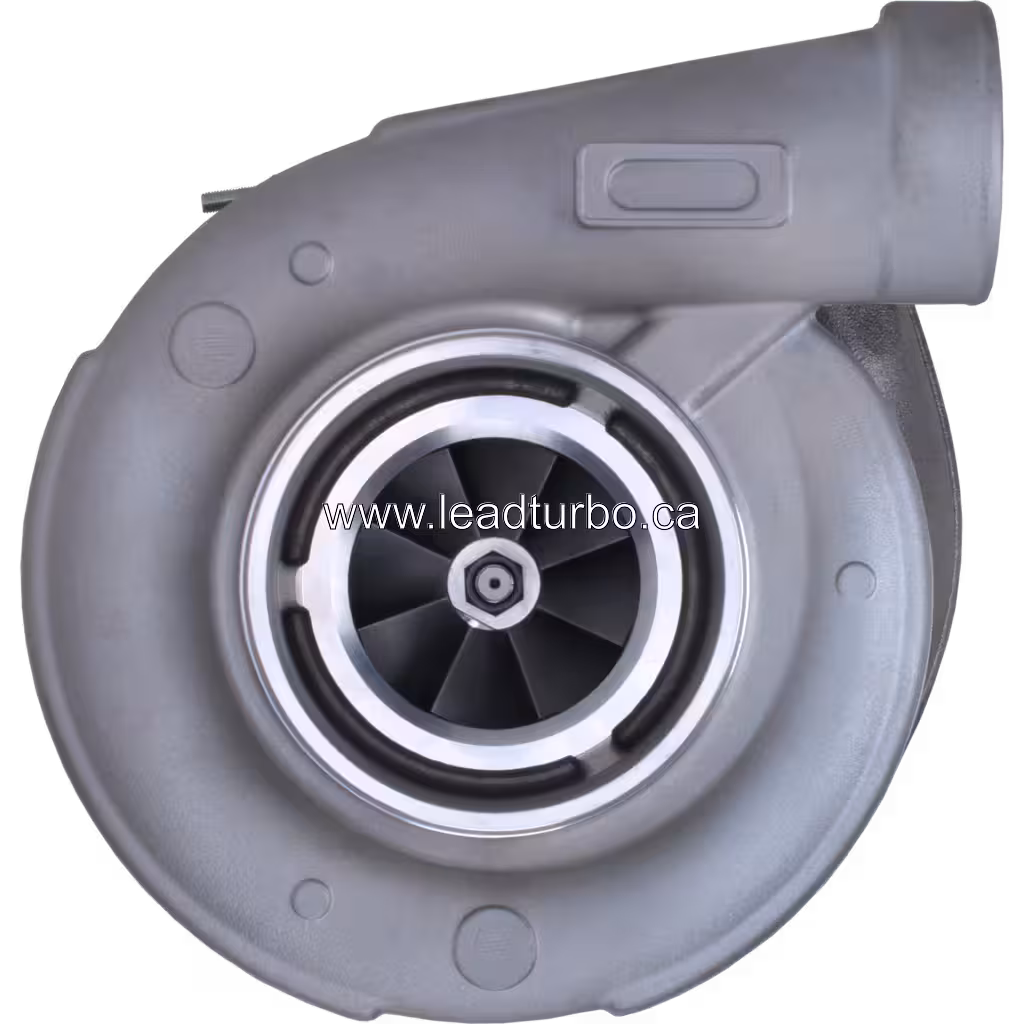

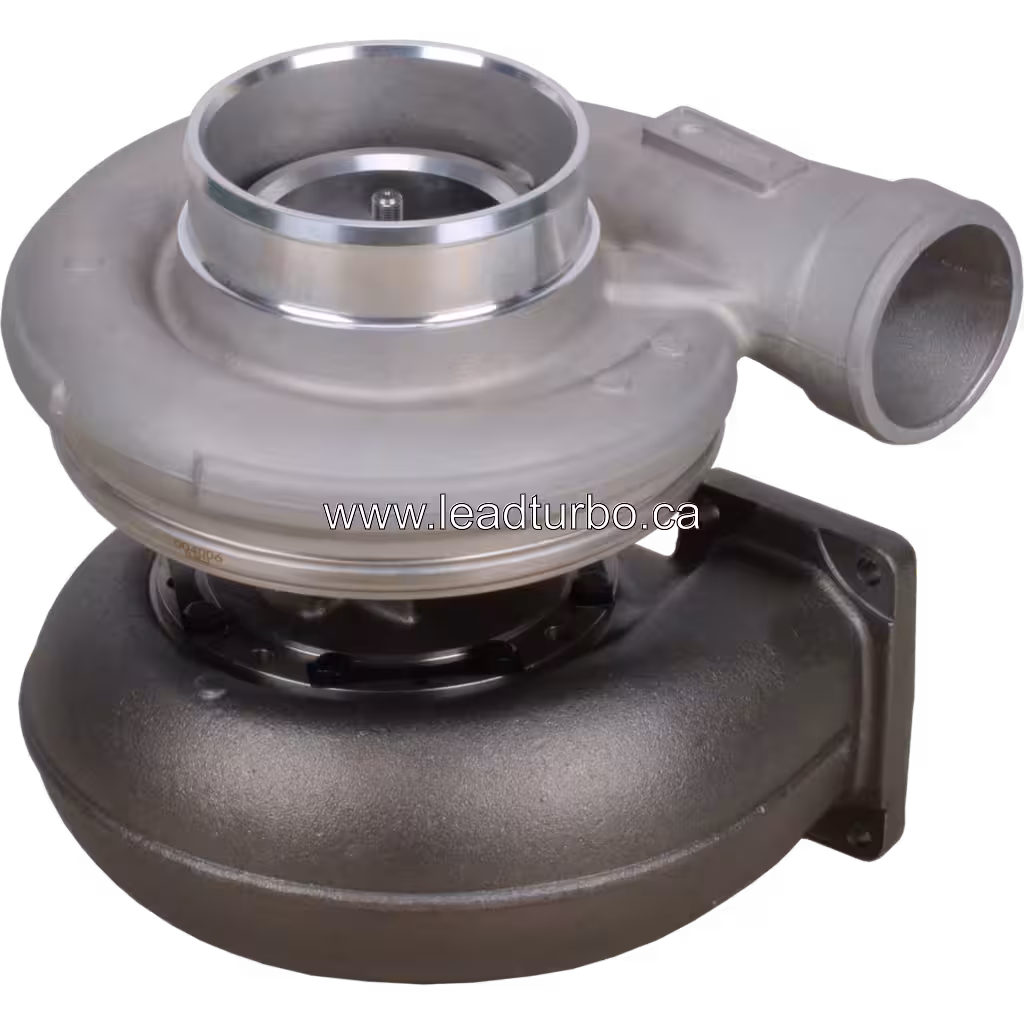

The 3594085 HC5A turbocharger is a complete aftermarket replacement unit designed for CUMMINS KTA38-C engines in Terex TR100 mining trucks. It features a two-part housing assembly with a dark cast-iron turbine section and a lighter compressor housing, connected by a central bearing housing. The turbine inlet flange includes two large rectangular openings, while the compressor inlet displays a polished metallic impeller. Visible mounting flanges and a water seal gasket at the housing junction support standard installation procedures. Buyers should verify the flange type and bolt pattern against their existing unit to ensure proper fitment for their specific application.
Application & Compatibility
Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:
- Terex > TR100 > TR100 Rigid mining dump truck > CUMMINS KTA38-C
This HC5A turbocharger is listed for Terex TR100 Rigid Mining Dump Trucks equipped with CUMMINS KTA38-C engines. It is associated with OEM reference numbers including 3525504, 3594086, 3594087, and 3594088. Buyers should verify the part number, engine code, and specific vehicle application against their service records before ordering. For twin-turbo or bi-turbo setups, confirm whether this unit is intended for the primary or secondary position. Technical fitment support is available to help validate flange types and bolt patterns for your specific mining truck configuration.
Technical Notes
The HC5A configuration is a large-displacement turbocharger designed for high-output diesel applications. Visible features include a two-port turbine inlet flange and a central bearing housing connecting the turbine and compressor sections. A water seal gasket is visible at the housing junction, which is critical for maintaining oil and coolant integrity during operation. Buyers should verify the compressor housing A/R ratio against their existing unit to ensure airflow characteristics match the CUMMINS KTA38-C engine requirements. For twin-turbo setups, confirm whether this unit is intended for the primary or secondary position. Technical fitment support is available to validate specific housing dimensions and mounting flange patterns before shipment.
B2B Supply
LeadTurbo supports B2B buyers, repair shops, and fleet parts distributors with volume pricing for the 3594085 HC5A turbocharger. Units ship worldwide in 34x34x38 cm cartons with a gross weight of 38 kg. Technical fitment support is available to verify flange types, bolt patterns, and OEM reference numbers such as 3525504 and 3594086 before shipment. Contact our team for bulk orders or application-specific validation for CUMMINS KTA38-C mining truck applications.
Product FAQ
TR100 and other product, brand and model names are the property of their respective owners and are used for reference and application-lookup only. LeadTurbo is not affiliated with or endorsed by TR100.
Compatibility Verify part number 3594085, CUMMINS KTA38-C engine code, Terex TR100 application, and OEM reference numbers (e.g., 3525504, 3594086) before ordering. Confirm flange type and bolt pattern match your specific unit.
Customer Reviews
Share installation notes, fitment feedback, or service experience for this product.
No customer reviews have been added for this product yet.
