4041172 HX55 Turbocharger Replacement for IVECO Cursor 10

LeadTurbo supplies the 4041172 HX55 turbocharger as an aftermarket replacement unit for IVECO Cursor 10 engines. This two-shell assembly is listed for IVECO, Case IH, and New Holland agricultural and industrial applications, with 21 OEM reference numbers available for fitment verification.

Key Specifications

• Part Number: 4041172
• Product Type: Turbocharger
• Turbo Model: HX55
• Packing Dimensions: 26 x 30 x 33 cm
• Gross Weight: 22 kg
• OEM Reference Numbers: 21 references available, including 05040942650, 4041170, and 4033639
• Image Availability: High-resolution studio photography provided

Verify these specifications against your existing unit or service manual to confirm fitment for your specific IVECO Cursor 10 or Case IH application.

Application & Compatibility

Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:

This HX55 turbocharger is listed for IVECO Cursor 10, Case IH, and New Holland agricultural and industrial applications. Use the 21 associated OEM reference numbers, including 05040942650, 4041170, and 4033639, to verify fitment against your specific engine code and production year. Key application clues include:

• IVECO > IVECO AGRICULTURAL > IVECO CURSOR 10
• Case IH > CASE IH IH AXIAL FLOW > CURSOR 10
• Case IH > Case IH AFX Series > Case IH 8010 > FPT Cursor 10
• Case IH > Case IH AFX > Case IH AFX 8010 > FPT Cursor 10
• FPT Industrial > Iveco Industrial > Iveco Industrial Genset > Iveco Cursor 10 Tier 3
• IVECO > Iveco EuroRider > Iveco Cursor 10 Tier 3
• IVECO > Iveco EuroStar > FPT Cursor 10
• IVECO > Iveco EuroStar > Iveco Cursor 10 Tier 3
• IVECO > Iveco EuroStar > Iveco Cursor 10
• IVECO > Iveco EuroTech > FPT Cursor 10
• IVECO > Iveco EuroTech > Iveco Cursor 10 Tier 3
• IVECO > Iveco EuroTech > Iveco Cursor 10
• IVECO > Iveco Stralis > FPT Cursor 10
• IVECO > Iveco Stralis > Fiat Cursor 10
• IVECO > Iveco Stralis > Iveco Cursor 10 Tier 3
• IVECO > Iveco Stralis > Iveco Cursor 10
• IVECO > Iveco Trakker > FPT Cursor 10
• IVECO > Iveco Trakker > Iveco Cursor 10 Tier 3
• IVECO > Iveco Trakker > Iveco Cursor 10
• NEW-HOLLAND > NEW HOLLAND IH AXIAL FLOW > CURSOR 10
• NEW-HOLLAND > New Holland CR Series > New Holland CR8090 Combine > Iveco Cursor 10 Tier 3
• NEW-HOLLAND > New Holland CR9000 Series > New Holland CR9080 > FPT Cursor 10
• NEW-HOLLAND > New Holland Combine Harvester > New Holland Combine > Fiat Cursor 10
• IVECO EuroStar, EuroTech, Stralis, and Trakker with FPT Cursor 10
• Case IH AFX 8010 and New Holland CR8090/CR9080 combines
• IVECO Industrial Genset and Tier 3 configurations

Confirm the part number 4041172 and turbo model HX55 match your existing unit before ordering. Technical fitment support is available to assist with verification.

Technical Notes

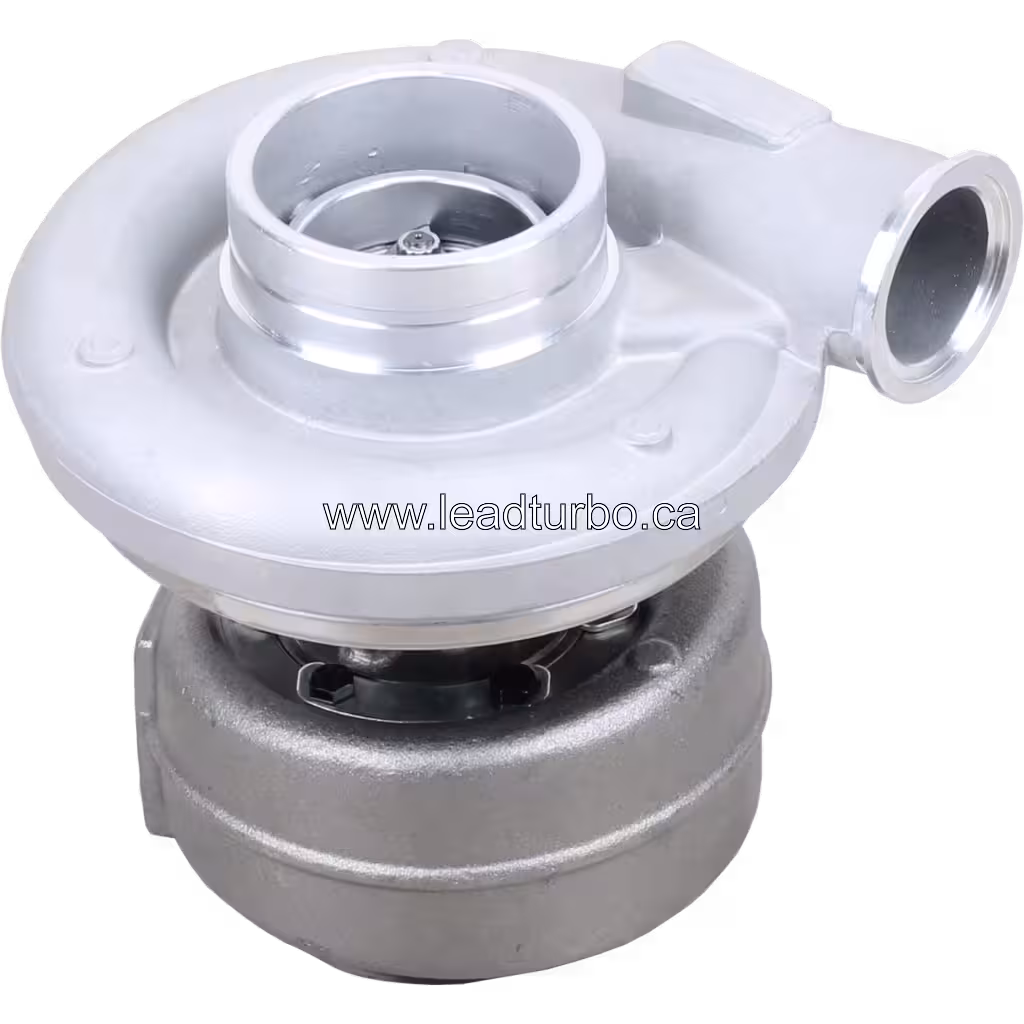

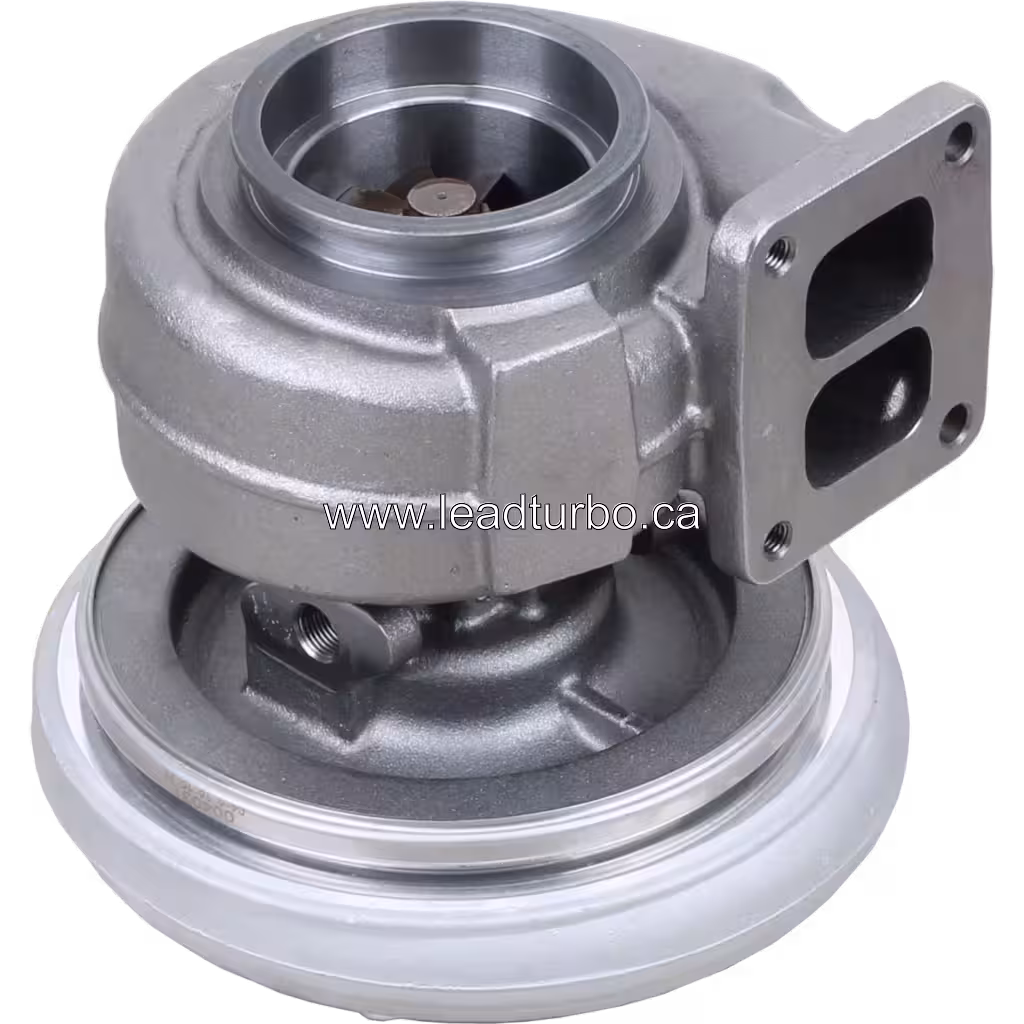

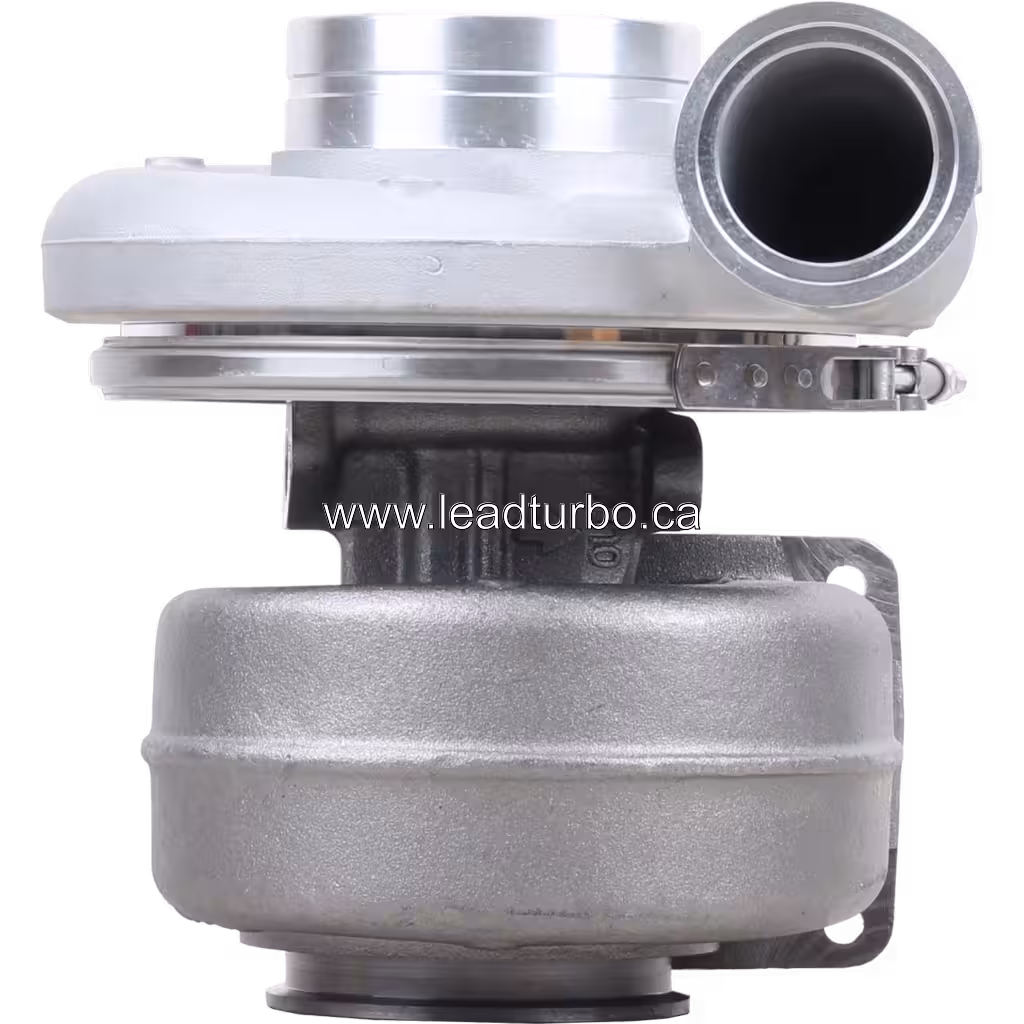

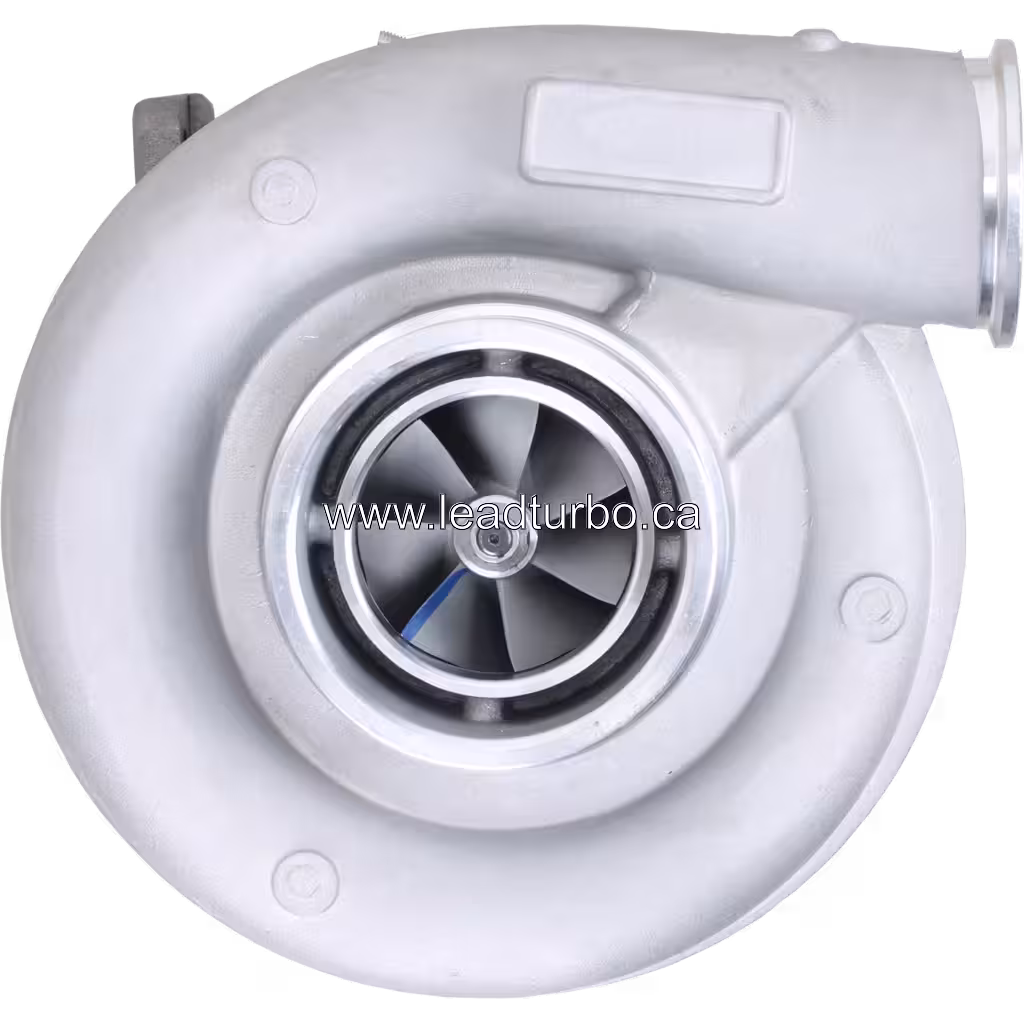

The HX55 assembly features a two-shell construction with a polished silver compressor housing and a cast grey turbine housing. Visible coolant ports on the central cartridge indicate a water-cooled design; verify these port locations against your specific IVECO Cursor 10 or Case IH application manifold before installation. The rectangular turbine outlet flange includes two large openings and four bolt holes, while the round compressor inlet and outlet flanges are machined for standard gasket sealing. Buyers should inspect the central cartridge mounting flanges and fasteners to ensure they align with the engine block. Confirm that the visible water cooling ports match your vehicle's requirements to prevent installation errors.

B2B Supply

LeadTurbo supports B2B buyers with volume pricing and worldwide shipping for the 4041172 HX55 turbocharger. Technical fitment support is available to assist with verifying part numbers, engine codes, and OEM reference numbers before ordering. This service helps repair shops, rebuilders, and distributors confirm that the aftermarket replacement unit matches their specific IVECO Cursor 10, Case IH, or New Holland application requirements.
