4046100 OP HX40W Turbocharger Oil Seal Plate Replacement
Aftermarket oil seal plate for HX40W turbochargers, part number FOR 4046100 OP. Reference application includes Cummins QSL9 engines in Hyundai HL770-9 wheel loaders. Verify fitment before ordering.
Show more cross references
3596448 4027331 BP FOR 3595279 BP FOR 3596258 BP FOR 3597180 OP FOR 3597181 OP FOR 3597960 BP FOR 3597961 BP FOR 3598836 BP FOR 3598837 BP FOR 3598838 BP FOR 4033062 BP FOR 4036531 BP FOR 4036532 BP FOR 4036617 BP FOR 4036618 BPSubtotal: CA$ 36
Standard shipping for one packed item (CAD)
| Canada | CA$ 79.59 |
|---|
Preparation: 5 business days after payment. Transit: 5 business days.
Standard rates exclude duties, taxes and remote-area, residential or special-packaging charges. Sales confirms the total before payment.
Shipping zones and full policyThis aftermarket oil seal plate, part number FOR 4046100 OP, is a replacement component for HX40W turbochargers used in Cummins QSL9 engines. It serves as a reference application for Hyundai HL770-9 wheel loaders, with OEM reference numbers such as 3596448 and 4027331 BP available for fitment verification.
Key Specifications
- Part Number: FOR 4046100 OP
- Product Type: Oil seal plate
- Turbo Model: HX40W
- Application Clue: Cummins QSL9 CM2350 L102 engine; Hyundai HL770-9 wheel loader
- Packing Dimensions: 12*8*4 cm
- Gross Weight: 0.5 kg
- Image Availability: High-resolution front, top-angled, and bottom-angled views available
- Representative OEM References: 3596448, 4027331 BP, 3595279 BP, 3596258 BP, 3597180 OP, 3597181 OP
Application & Compatibility
Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:
- HYUNDAI > Hyundai 9 Series > Hyundai Wheel Loader HL770-9 > Cummins QSL9 CM2350 L102
This oil seal plate is listed for HX40W turbochargers in Cummins QSL9 CM2350 L102 engines, specifically referenced for Hyundai HL770-9 wheel loaders. It is an aftermarket replacement application; verify your specific engine code, production year, and turbo configuration before ordering. Use the 16 associated OEM reference numbers, such as 3596448 and 4027331 BP, to help confirm fitment. LeadTurbo provides technical fitment support to assist with verification.
Technical Notes

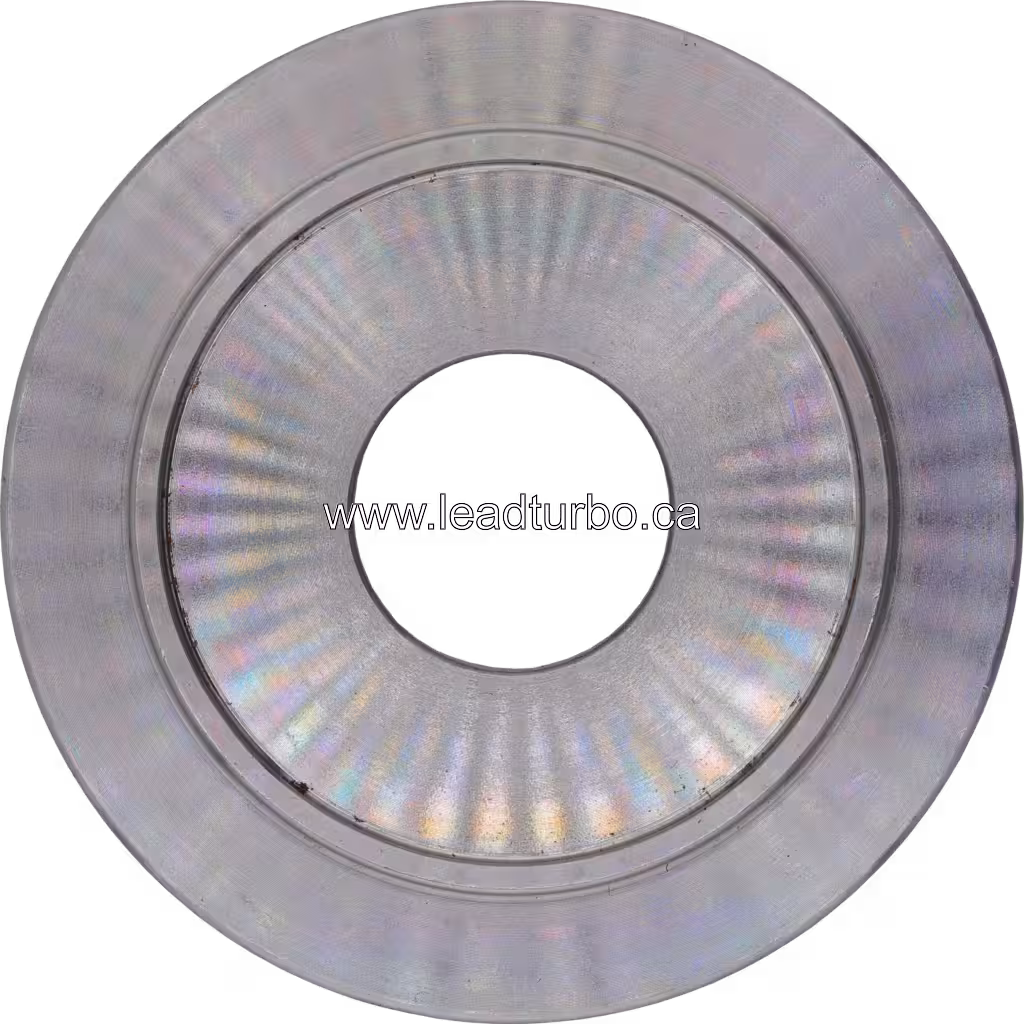

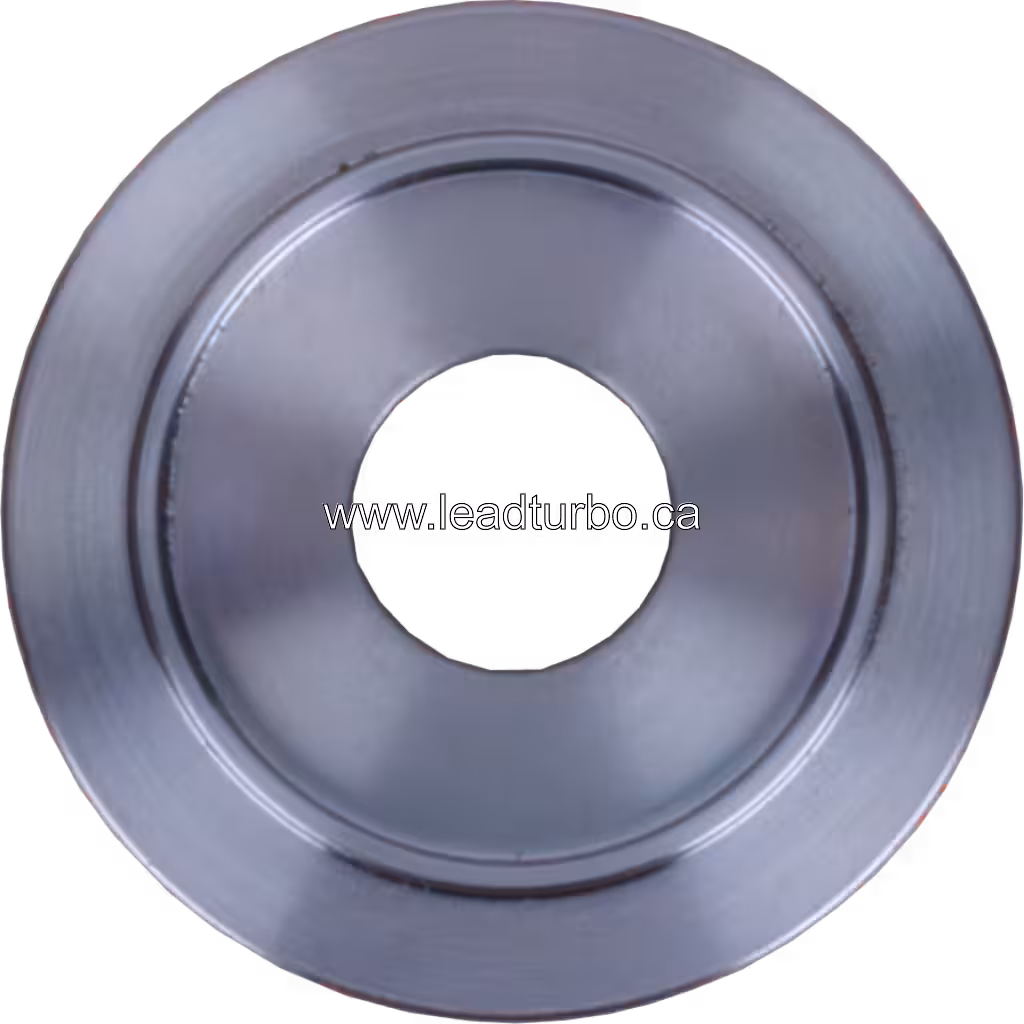

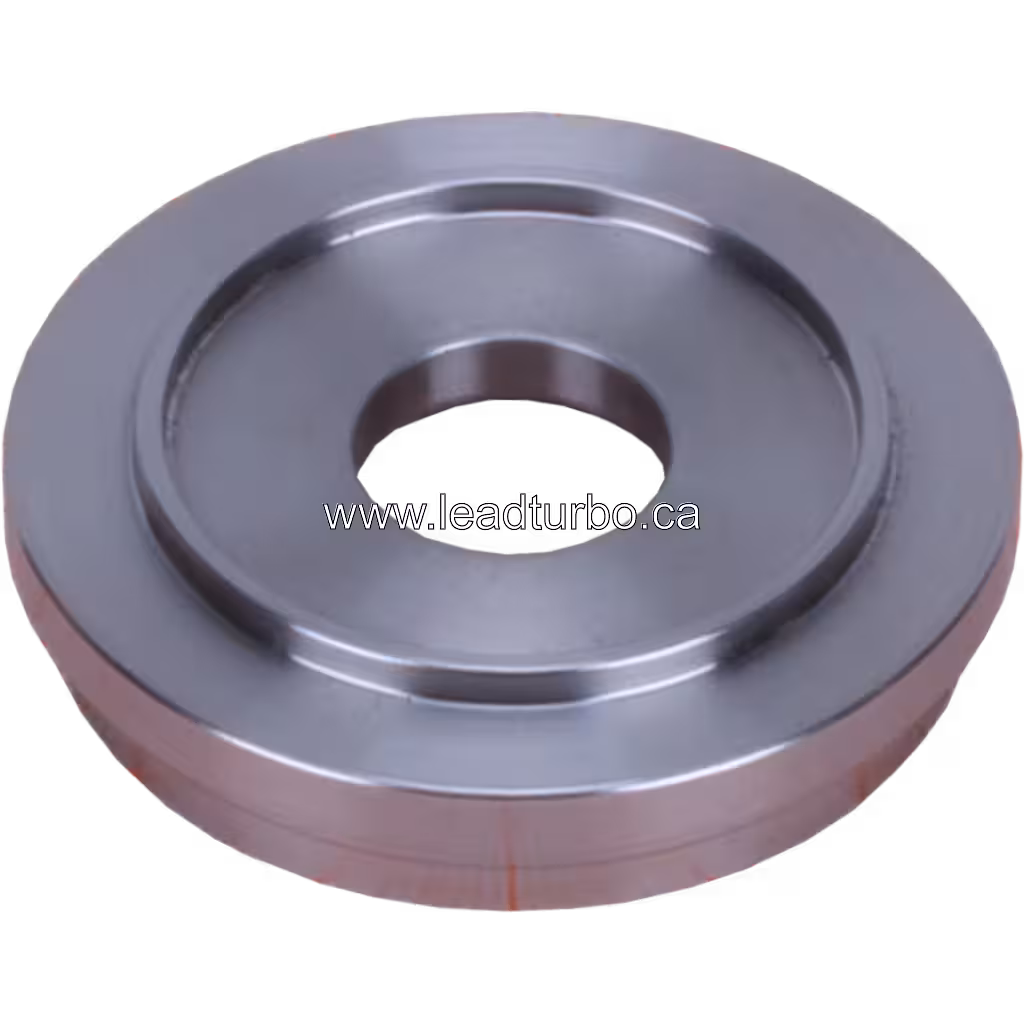

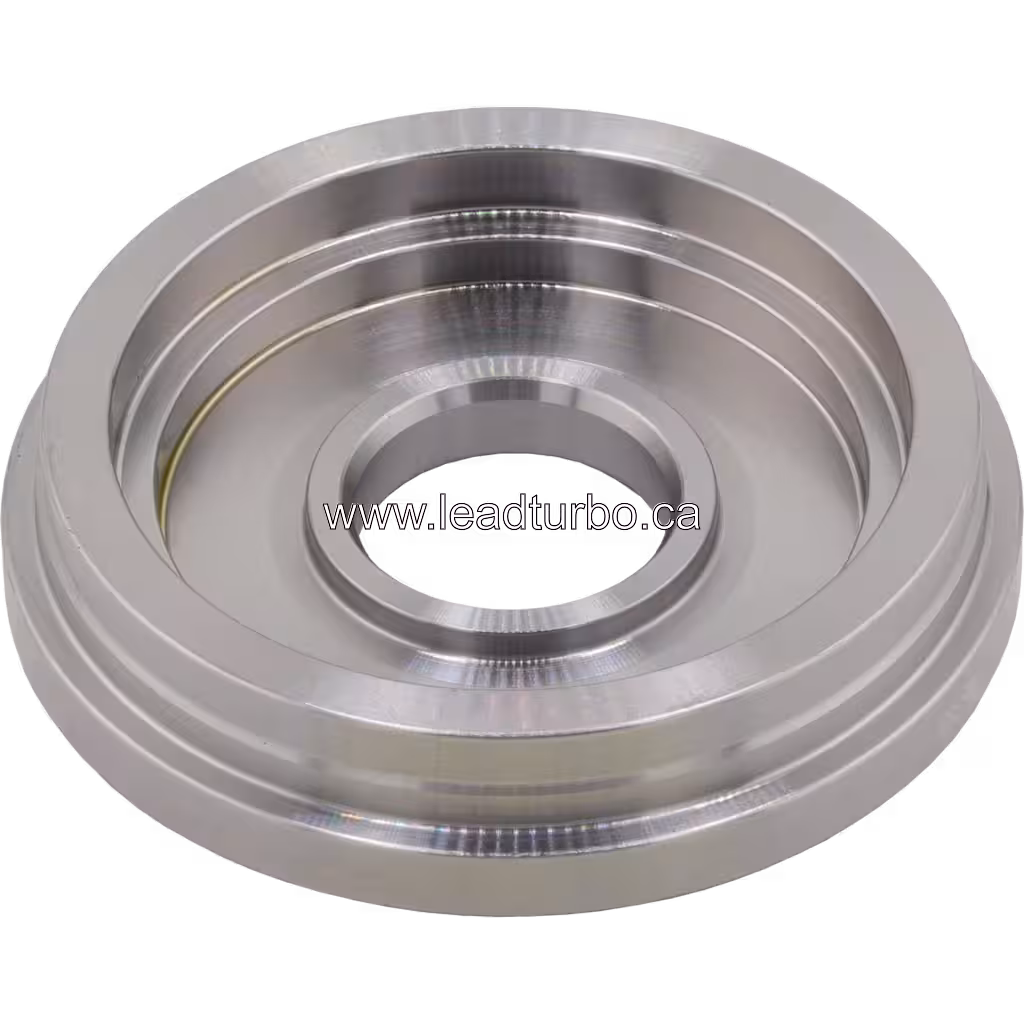

The HX40W turbocharger is a heavy-duty unit commonly found in Cummins QSL9 engines. This oil seal plate is a critical sealing component that helps maintain proper lubrication and pressure within the turbocharger assembly. The part features a machined metallic finish with concentric grooves and a central through-hole, visible in the provided high-resolution images. These visual details help buyers verify the physical form factor against their existing components. Since this is an aftermarket replacement, it is essential to cross-check the specific turbocharger configuration and engine code. Buyers should confirm that their HX40W unit matches the reference application for Hyundai HL770-9 wheel loaders before proceeding with an order.
B2B Supply
LeadTurbo supports B2B buyers, repair shops, and distributors with volume pricing and worldwide shipping for this FOR 4046100 OP oil seal plate. Technical fitment support is available to help verify engine codes, vehicle applications, and OEM reference numbers before ordering. For bulk inquiries or specific application checks, contact our team to confirm the correct part for your Cummins QSL9 or Hyundai HL770-9 setup.
Product FAQ
Hyundai 9 Series and other product, brand and model names are the property of their respective owners and are used for reference and application-lookup only. LeadTurbo is not affiliated with or endorsed by Hyundai 9 Series.
Compatibility Verify part number FOR 4046100 OP, engine code (e.g., Cummins QSL9), vehicle application (Hyundai HL770-9), production year, and OEM reference numbers (e.g., 3596448, 4027331 BP) before ordering. This is an aftermarket replacement application; confirm specific turbo configuration and fitment with your technical team.
Customer Reviews
Share installation notes, fitment feedback, or service experience for this product.
No customer reviews have been added for this product yet.
