6505-67-5040 KTR110L-F85PW Turbocharger Replacement for Komatsu HD785-7
Aftermarket 6505-67-5040 KTR110L-F85PW turbocharger for Komatsu HD785-7 and SAA12V140E-3B engines. Verify part number, OE references, and mounting details before ordering.
Show more cross references
6505675030 6505-67-5030 6505675040Subtotal: CA$ 755
Standard shipping for one packed item (CAD)
| Canada | CA$ 644.38 |
|---|
Preparation: 5 business days after payment. Transit: 5 business days.
Standard rates exclude duties, taxes and remote-area, residential or special-packaging charges. Sales confirms the total before payment.
Shipping zones and full policyThis aftermarket 6505-67-5040 KTR110L-F85PW turbocharger assembly is a replacement unit for Komatsu HD785-7 dumpers equipped with SAA12V140E-3B engines. It serves as an aftermarket replacement application for units referencing OEM numbers 6505675030 and 6505675040, supporting fleet maintenance and repair operations.
Key Specifications
- Part Number: 6505-67-5040
- Turbo Model: KTR110L-F85PW
- Product Type: Turbocharger Assembly
- Gross Weight: 32.2 kg
- Packing Dimensions: 35 x 34 x 43 cm
- OEM Reference Numbers: 6505675030, 6505-67-5030, 6505675040
- Application Clues: Komatsu HD785-7, SAA12V140E-3B engine
- Image Availability: High-resolution studio photography showing compressor housing, turbine housing, and data plate
Application & Compatibility
Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:
- KOMATSU > KOMATSU DUMPER HD785-7 > KOMATSU SAA12V140E-3B
- KOMATSU > KOMATSU DUMPER HD785-7 > KOMATSU SAA12V140E-3B-02
- KOMATSU > Komatsu HD785 > Komatsu HD785-7 > Komatsu SAA12V140E-3B
- KOMATSU > Komatsu HD785 > Komatsu HD785AT-7 > Komatsu SAA12V140E-3B
This turbocharger assembly is listed for Komatsu HD785-7 and HD785AT-7 dumpers equipped with SAA12V140E-3B engines. The application data includes specific variants such as SAA12V140E-3B-02. Buyers should verify the part number 6505-67-5040, engine code, and OEM reference numbers 6505675030 or 6505675040 against their specific unit. Confirm mounting bracket configuration and oil line requirements before ordering to ensure the correct replacement application.
Technical Notes

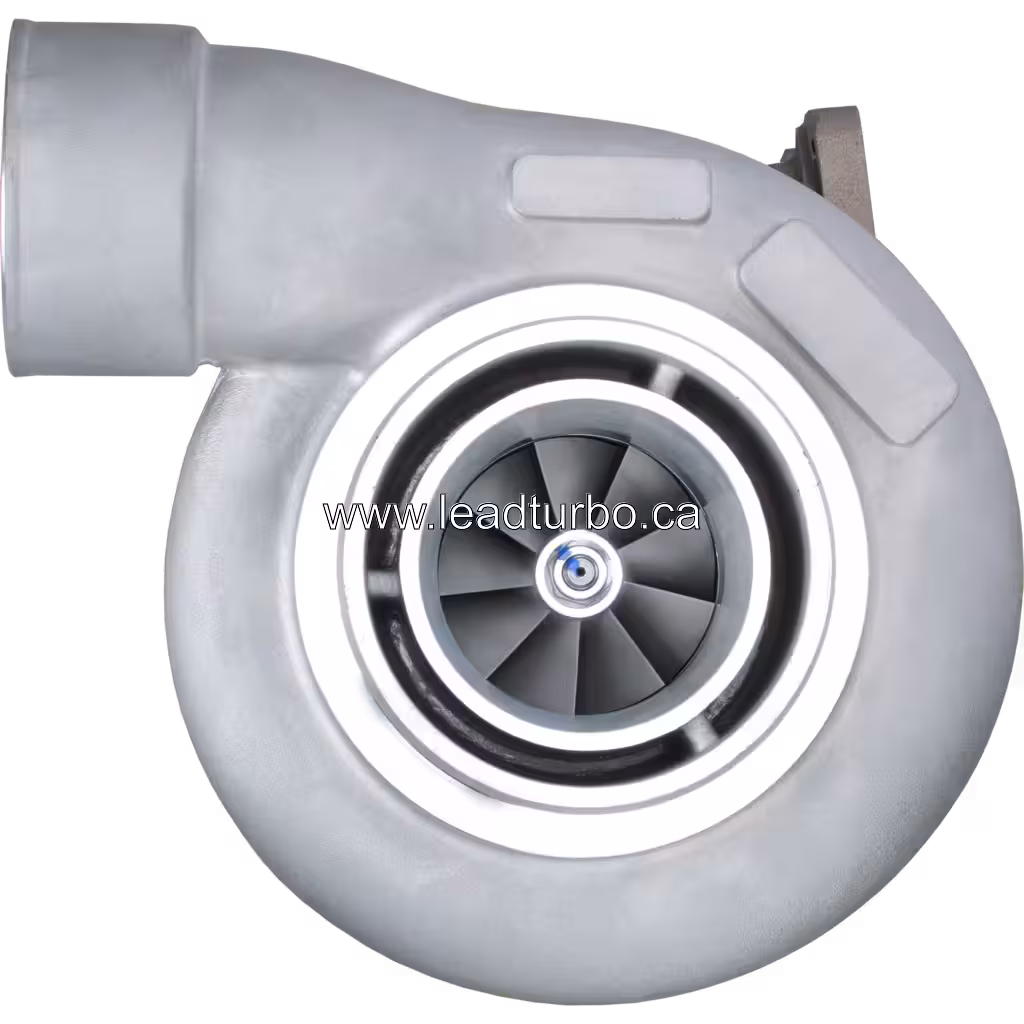

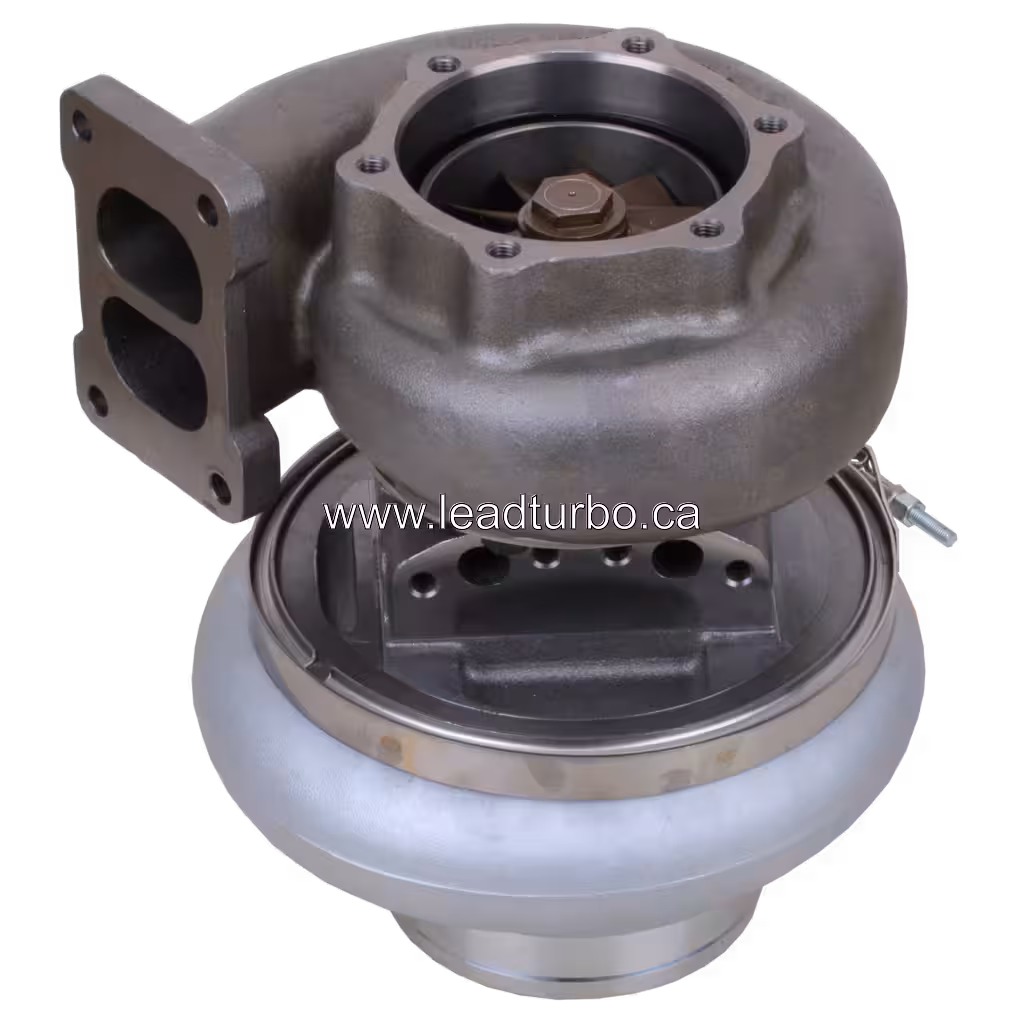

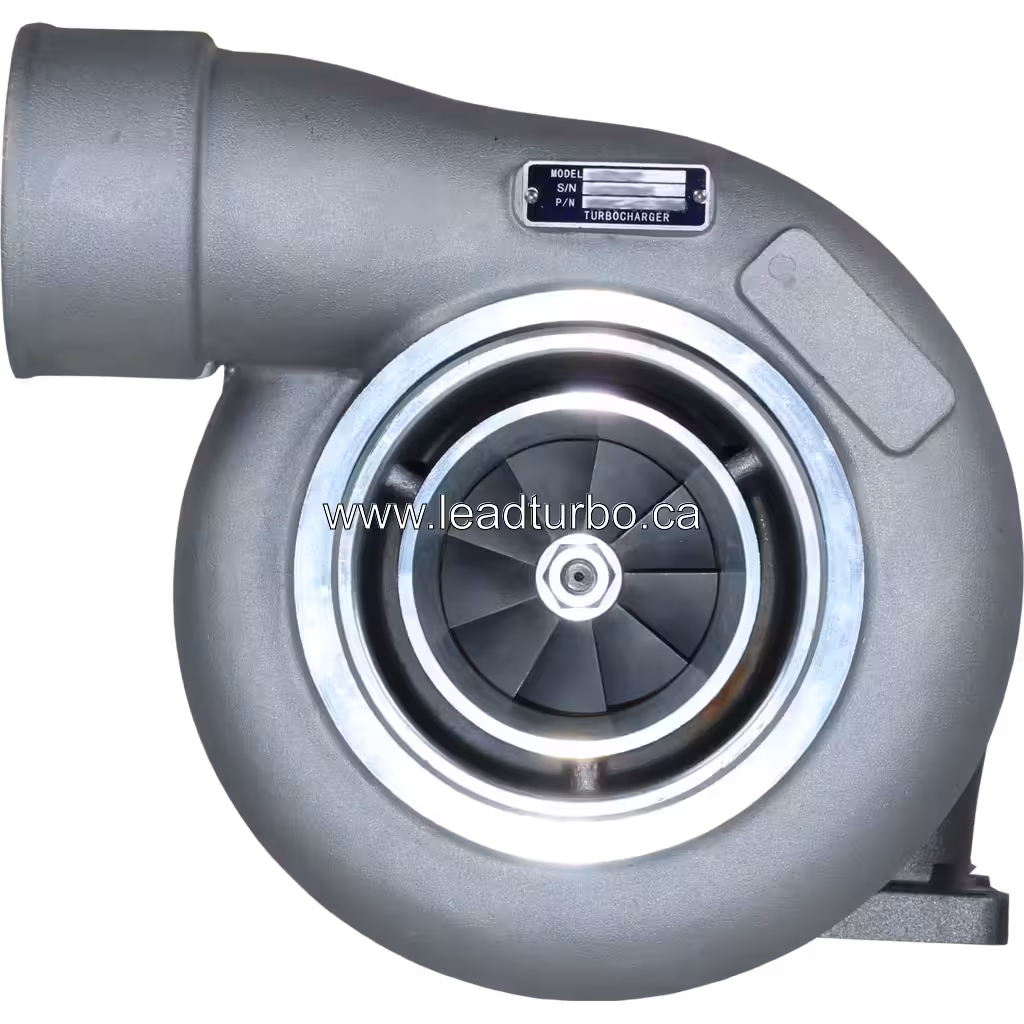

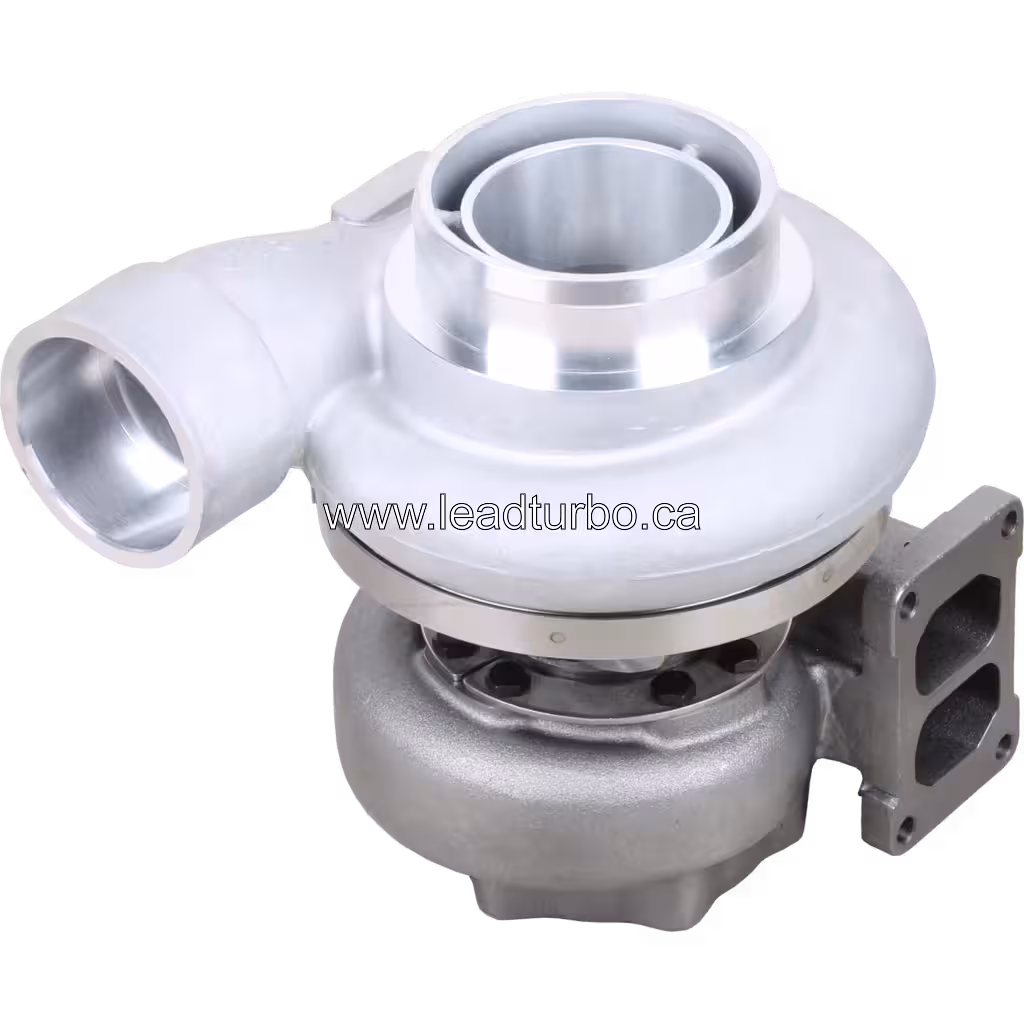

The KTR110L-F85PW assembly features a cast-iron compressor housing and a two-port turbine housing, visible in the provided studio photography. A data plate on the compressor housing includes fields for model, serial number, and part number, which helps buyers verify the specific unit received. The central bearing housing connects the compressor and turbine sections, with visible mounting feet and gasket surfaces for installation. Buyers should inspect the oil feed line restrictor and confirm the oil return line drain angle against the SAA12V140E-3B service manual. Additionally, verify that the mounting bracket configuration matches the specific Komatsu HD785-7 or HD785AT-7 chassis before installation to ensure proper alignment.
B2B Supply
LeadTurbo supports B2B buyers with volume pricing and worldwide shipping for the 6505-67-5040 KTR110L-F85PW turbocharger. Technical fitment support is available to verify mounting brackets, oil line configurations, and OEM reference numbers 6505675030/6505675040 before dispatch. Distributors and fleet parts managers can request quotes for bulk orders of this Komatsu HD785-7 replacement assembly. Confirm your specific engine code and chassis variant to ensure the correct unit is allocated for your maintenance schedule.
Product FAQ
KOMATSU and other product, brand and model names are the property of their respective owners and are used for reference and application-lookup only. LeadTurbo is not affiliated with or endorsed by KOMATSU.
Compatibility Verify part number 6505-67-5040, engine code SAA12V140E-3B, vehicle application Komatsu HD785-7, and OEM reference numbers 6505675030/6505675040 before ordering. Confirm mounting bracket and oil line requirements against your specific unit.
Customer Reviews
Share installation notes, fitment feedback, or service experience for this product.
No customer reviews have been added for this product yet.
